K / J Thermocouple Resister Sensor Waterproof Temp Probe RTD PT100
K / J Thermocouple Resister Sensor Waterproof Temp Probe RTD PT100
Specifications
Brand Name :
LEADKIN
Model Number :
LK-K
Certification :
ISO,
Place of Origin :
CHINA
MOQ :
100M
Price :
USD 0.99-30/M
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1,000,000M/year
Delivery Time :
2-7 working days
Packaging Details :
68*68*8cm Carton
Sheath Material :
310S,Inconel600
Calibration :
K,N,E,J,T,R,B,S,Pt100
Dia :
0.5mm-12.7mm
Name :
EGT Probe Exhaust Gas Temperature probe for auto
Purity of MgO :
≥99.6%
Sample :
free
Package :
Carton
Type :
single double
Description

RTD PT100 Thermocouple Resister Temperature Sensor Waterproof Temp Probe K/J Thermocouple

Because a thermocouple can take many shapes and forms, it is important to understand how to correctly select the right sensor.

The most commonly criteria used to make that choice are the temperature range, the chemical resistance, the abrasion and vibration resistance and the installation requirements. Installation requirements would also dictate your choice of a thermocouple probe.

There are different types of thermocouples and their applications may vary. An exposed thermocouple will work best when high response times are required, but an ungrounded thermocouple is better in corrosive environments.

Quick Details:

Name: EGT Probe Exhaust Gas Temperature probe for auto

Type: K,N,E,J,T,R,B,S,Pt100

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan

Insulator: 99.6% high purity MgO

Core number: 2, 4, 6

Sheath material: SS321(SS304), SS316, SS310, Inconel600, Nicrobell

Dia(mm): 0.25mm to 12.7mm

Application: connecting with thermocouple and instrument machine

Place of Origin: Zhejiang, China (Mainland)

Eco-friendly: Yes

MOQ: 100m

Certificate: ISO

Making sample time: all type in stock

Trade term: FOB, EXW, CIF, CFR

Payment term: T/T, Western Union, L/C

Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100

Accuracy for Sheath Wire Type K

Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃

Product Pictures

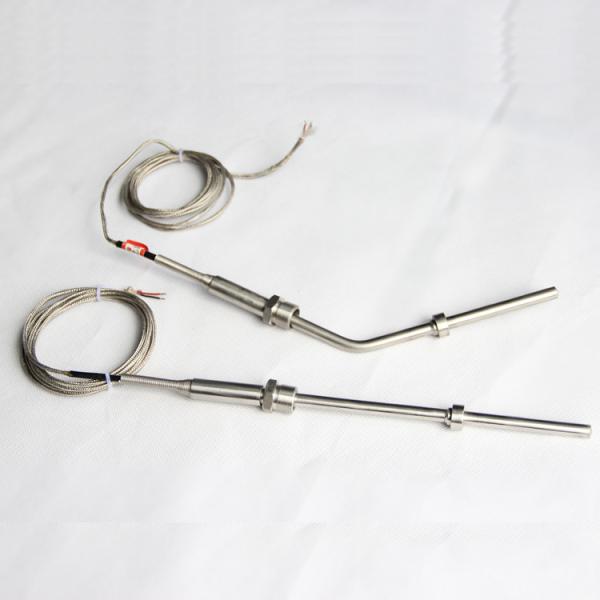

K / J Thermocouple Resister Sensor Waterproof Temp Probe RTD PT100

K / J Thermocouple Resister Sensor Waterproof Temp Probe RTD PT100

K / J Thermocouple Resister Sensor Waterproof Temp Probe RTD PT100

Company Information:

A. Main Products

K / J Thermocouple Resister Sensor Waterproof Temp Probe RTD PT100

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

K / J Thermocouple Resister Sensor Waterproof Temp Probe RTD PT100

K / J Thermocouple Resister Sensor Waterproof Temp Probe RTD PT100

C. Warehouse

We have great amount mi cable in stock. We expecting your visiting.

K / J Thermocouple Resister Sensor Waterproof Temp Probe RTD PT100

FAQ:

1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better .
