Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321
Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321
Specifications
Brand Name :
LEADKIN
Model Number :
LK-KK
Certification :
ISO9001, IATF16949, CE
Place of Origin :
Ningbo, China
MOQ :
100M
Price :
USD 0.38-4.0/M
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1,000,000M/year
Delivery Time :
2-7 working days
Packaging Details :
70*70*8cm Carton
Purity of MgO :
≥99.6%
Warranty :
1 Year
MOQ :
100M
Accuracy :
Class I
Customized :
Yes
Sheath Material :
SS316
Core Type :
single / double
Dia :
0.5mm-12.7mm
Theory :
Temperature Sensor
Cable Length :
1-5m or Customized
Usage :
Industrial Temperature Test
Name :
3.0mm 6.0mm dia mineral cable type K in stainless steel sheath for thermocouple probe
Description

Quick Details:

Type: K

Brand: LEADKIN

Usage: for thermocouple making

Dia(mm): 0.25mm to 12.7mm

Sheath material: SS321(SS304), SS316

Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan

Name:Mineral Insulated dia mineral cable type K in stainless steel sheath for thermocouple probe

Type for Sheath Wire Type K

Product Name Code Type Shaeth Material Outside Dia. Temperature
NiCr-NiSi /NiCr-NiAl KK K SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCrSi-NiSi NK N SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
SS310 Inconel600 0.5-1.0 500
1.5-3.2 800
4.0-6.4 900
8.0-12.7 1000
NiCr-Konstantan EK E SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Fe-Konstantan JK J SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
Cu-Konstantan TK T SS304 SS316 0.5-1.0 400
1.5-3.2 600
4.0-8.0 800
RhPt10-Ph SK S Inconel600 6.0-12.7 1100

Accuracy for Sheath Wire Type K

Type Class I Class II
Accuracy Temp.Range Accuracy Temp.Range
K ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
N ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-1000℃ ±0.75% 375℃-1000℃
E ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
J ±1.5℃ -40~375℃ ±2.5℃ -40~375℃
±0.4% 375℃-800℃ ±0.75% 375℃-800℃
T ±0.5℃ -40~125℃ ±1.0℃ -40~125℃
±0.4% 125℃-350℃ ±0.75% 125℃-350℃
S 0-1100℃ ±1.0℃ 0-1100℃ ±1.5℃

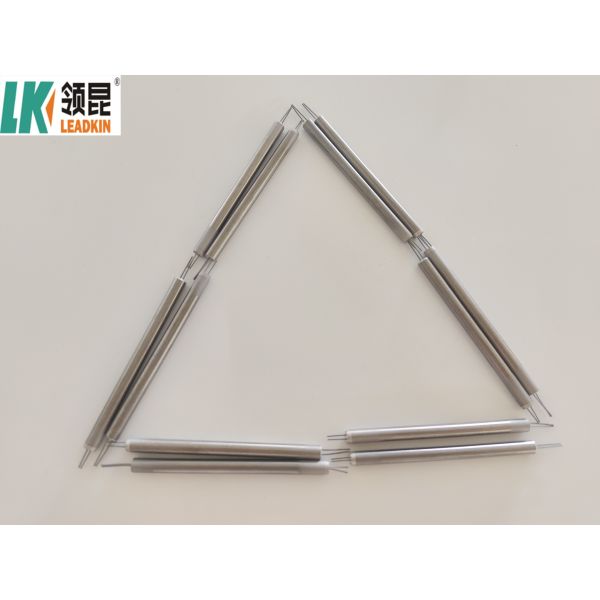

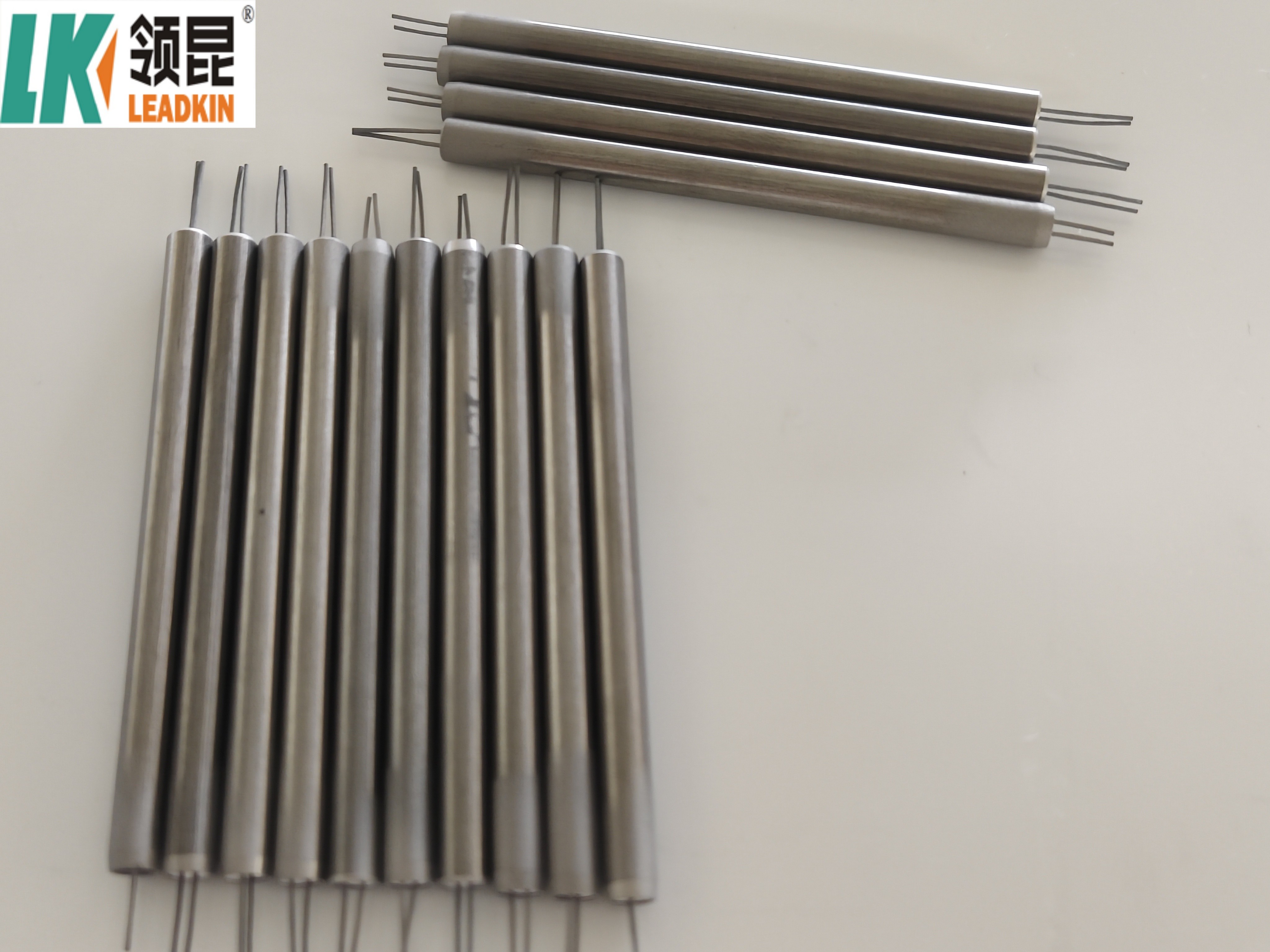

Product Pictures

Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321

Company Information:

A. Main Products

Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321

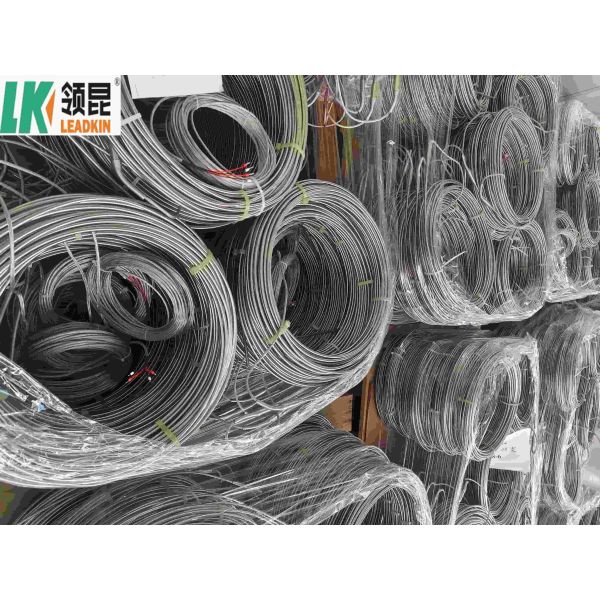

B. Package

We add heat shrink tubing and plastic film to make sure high insulated resistance.

Except marking notes, we also have pass card and test report for every coil cable.

Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321

Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321

C. Exihibition

Mineral Insulated Shielded Type K Thermocouple Wire Pt100 Extension Cable SS 321

Product Advantage:

1:High temperature resistance, flexible, anti-corrosion, fast and accurate temperature measurement.

2:High temperature resistant Extension wire.

3:Probe length can be customized, probe can be bent.

4:Arbitrary bending, high temperature resistance, long service life, fast response speed, fixed spring.

5:High Precision Temperature control probe .

6:Quick response.

FAQ:

1. Accurate quotation.
2. Confirm the price, trade term, lead time, payment term etc.
3. LEADKIN sales send the Proforma Invoice with LEADKIN seal.
4. Customer arranges the payment for deposit and sends us bank slip.
5. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.
6. End Production-Mass production products photos.
7. Clients make payment for balance and LEADKIN ships the goods. Inform the tracking number and check the status for clients.
8. The order is finished perfectly when you receive the goods and get satisfied with them .
9. Feedback to LEADKIN about quality, service, market feedback & suggestion. And we will do better .
