2000-2400BPH Semi Auto 4 Cavity 0-1.5L Bottle Blow Molding Machine
2000-2400BPH Semi Auto 4 Cavity 0-1.5L Bottle Blow Molding Machine
2000-2400BPH Semi Auto 4 Cavity 0-1.5L Bottle Blow Molding Machine
2000-2400BPH Semi Auto 4 Cavity 0-1.5L Bottle Blow Molding Machine
2000-2400BPH Semi Auto 4 Cavity 0-1.5L Bottle Blow Molding Machine
2000-2400BPH Semi Auto 4 Cavity 0-1.5L Bottle Blow Molding Machine
2000-2400BPH Semi Auto 4 Cavity 0-1.5L Bottle Blow Molding Machine
2000-2400BPH Semi Auto 4 Cavity 0-1.5L Bottle Blow Molding Machine
Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
BL-4A
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
8200-8500USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets per month
Delivery Time :
20-25 working days
Packaging Details :
Sea shipping Wooden case
Name :
4 cavity semi-auto bottle blow molding machine
Capavity :
2200-2400bottles per hour
Cavity :
4 cavities
Finished bottle :
0-1Liters
Structure :
1 preform heater + 1 blower
Automation level :
Semi-automatic
Power :
25.6kw
Totaly weight :
950Kg
Description

Description of 2000-2400BPH semi auto 4 cavity 0-1.5L bottle blow molding machine

BL-4B Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.

1. Electrical control part of 4 cavity semi-auto bottle blow molding machine:
The electrical control part is operated by a computer control system, its function is to control the entire working process of the bottle blowing machine, by adjusting the parameters in the computer screen to control the sequence and speed of the entire action. Successively complete a series of actions from closing the mold-stretching and blowing-blowing-exhausting-mold opening. Each time data adjustment will affect the product molding, the quality of the product, and the speed of the bottle blowing.
2. Heating oven of 4 cavity semi-auto bottle blow molding machine:
The heater is composed of intelligent pressure regulator, temperature control exhaust, heating lamp, speed control and frequency conversion, etc. The heater can adjust the input voltage of each segment of the lamp according to the product requirements, and the operation and use are very convenient. When working, the temperature controller uses the temperature sensor to make the temperature in the drying tunnel
The temperature is controlled at the required constant temperature state. The light from the lamp tube is transmitted to the preform, so that the preform in the drying tunnel is heated and becomes an elastic state so as to meet the requirements of bottle blowing.

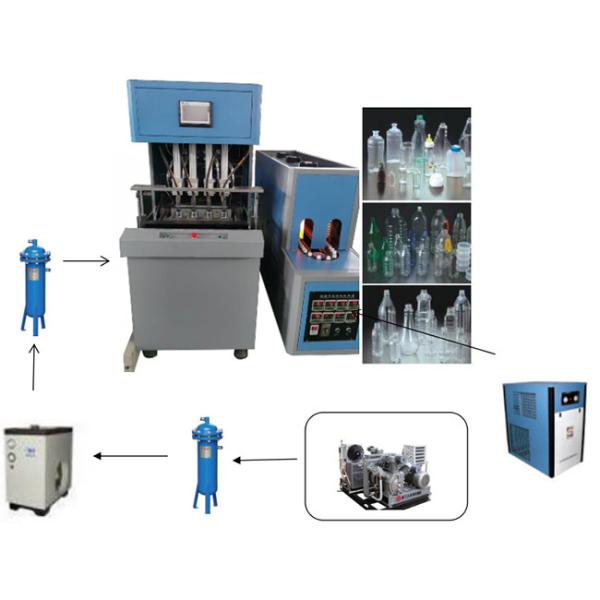

Equipment list of 4 cavity semi-auto bottle blow molding machine:

Items Name of machine Model Size(mm) Qty.

1.1

 Semi-automatic blow molding machine BL-4A

2000*1000*2000

2200*660*1600

1set

1set

1.2

 HP Air Compressor with air tank 1.2m3/min 30Kg 1880*850*1050 1set
1.3 Air filter 2.0m3/min 30Kg 750*350*350 2sets
1.4.1 Blow mold 500ml / 1set
Option
1.5 Air cooling dryer 1.2m3/min 30Kg 1050*650*1100 1set
1.6 Mould chiller 3HP 850*560*1040 1set

Paramters of 4 cavity semi-auto bottle blow molding machine:

Model BL-4A
　　Container Product material PET
Volume 0.1L-1L
Theoretical output 2200-2400PCS/H
Preform length <230mm
Preform inner diameter Φ9mm-20mm
　　Moulding

Max.mould plate Dimension

(L x W)

 500x270mm
Max.mould thickness 200mm
Clamping force 180KN
Mould opening stroke 210mm
Machine size and weight Main machine (L x W x H) 200x100x200cm
Main machine weight 650Kg
Heater (L x W x H) 220x66x160cm
Heater weight 300Kg
Power 25.6kw
