16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
CGF16-4A
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
26000-28000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5sets per month
Delivery Time :
25-30 working days
Packaging Details :
Sea shipping Wooden case
Name :
Normal pressure non-gas 16-4 2 in 1 can filling machine
Capavity :
5000cans per hour
Filling head :
16 pcs
Can sealing head :
4 pcs
Filling range :
100-1000ml
Filling method :
Normal pressure filling
Machine size :
2800*2200*2200mm
Suitable can :
Tin can or other kind
Description
Description of 16-4 Normal pressure tea energy drink tin cans filling machine
This equipment is suitable for the two-in-one filling machine of cans, and is used to fill tinplate cans for non-gas beverages. The equipment has a high degree of automation, accurate quantification, high filling accuracy and easy cleaning. Using world-renowned brands of electrical and pneumatic components, stable performance and long service life. The equipment adopts photoelectric detection of various parts, beautiful appearance, simple operation and convenient maintenance.
The feeding screw is used to ensure the smooth feeding of the tank, the normal pressure filling valve is used during filling, and the centering device is added at the same time, so that the filling speed is faster and more stable. When sealing, the chute of the lid relies on the gravity of the lid and the thruster to lower the lid, and the lid is neat and intact when the lid is ejected, and the lid is tightly sealed. It has a control system with a lid under the can and no lid without a can. The cover channel can put 300-500 caps in a single time, and the caps are automatically dropped. Because the cover channel is equipped with a photoelectric device, if the cover is less than 100, the filling machine will not work until the cover is reinserted to avoid the problem caused by no cover Waste of materials and cans.
Parameters:
Name Normal pressure non-gas 16-4 2 in 1 can filling machine
Capavity 5000cans per hour
Filling head 16 pcs
Can sealing head 4 pcs
Filling range 100-1000ml
Filling method Normal pressure filling
Machine size 2800*2200*2200mm
Suitable can Tin can or other kind

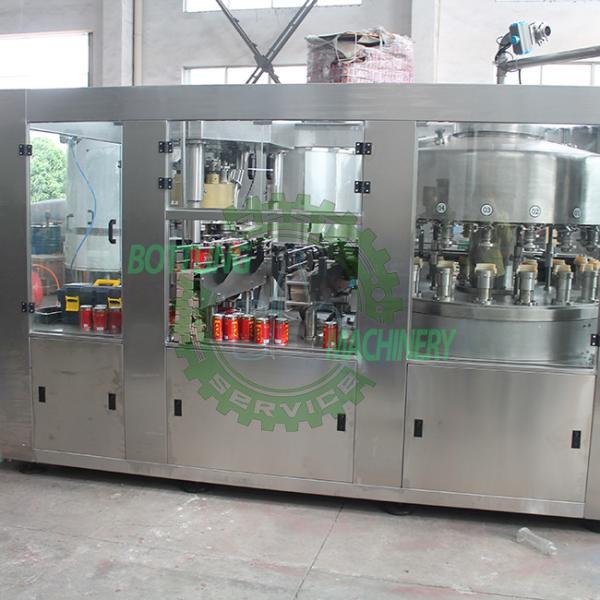

Please check the whole body of Normal pressure non-gas 16-4 2 in 1 can filling machine:

16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
16 heads can normal pressure filling head:
16-4 Normal Pressure Tea Energy Drink Tin Cans Filling Machine
