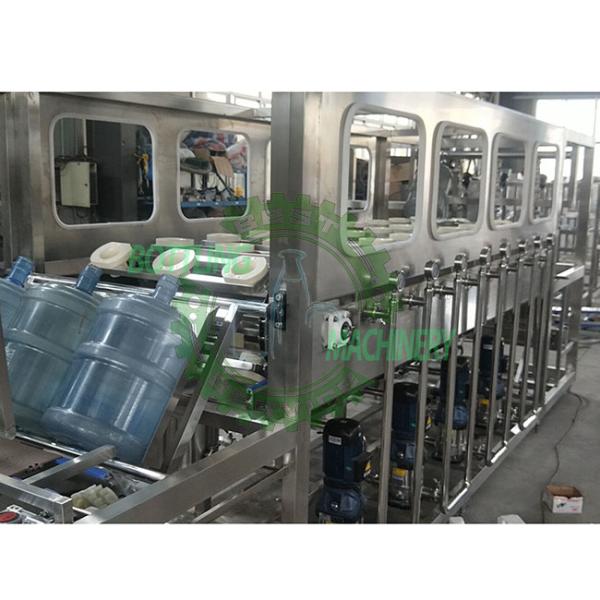

Description of 450BPH belt conveyor cap press 5 gallon water bottling machine

Overview of 450BPH barrel water filling production line:

The large barrel water filling production line can realize automatic online cap removal, automatic barrel washing, and automatic reversal after entering the washing and filling sealing host. The pre-washing, disinfection and washing with alkali water, circulating water, pure water and automatic filling can be automatically completed. Filling, hanging caps, capping and sealing, plastic cap heat shrinking, bagging, etc.; fully realize integrated closed management, truly aseptic filling production

This filling line is specially designed for 3-5 gallons of bottled water. we can supply the models QGF-100, QGF-200, QGF-300, QGF-450, QGF-600, QGF-900, QGF-1200, and it collects and washes bottles. Filling and capping are integrated to achieve the purpose of cleaning and disinfection. The washing machine uses multiple washing liquid sprays. This spray can be recycled. The automatic capping machine can automatically cap. This line is equipped with a water spray device to Ensure that these bottle caps can be automatically completed, cleaned, sterilized, filled, capped, counted, and discharged. It has complete functions, modern design, and high degree of automation. It is a new type of barrel that integrates machine, electricity and gas technology.

Advantage
1. Specially used to fill 3 to 5 gallons of bottled water.
2. Professional design for filling various bottle types.
3. This machine is specially designed for bottles such as PVC. Can be used for bottles of different shapes.
4. This production line uses stainless steel flushing nozzles, pressure filling valves, screw caps, hot steam film shrinking machines and other equipment.
5. The filling time is controlled by PLC.
6. The machine adopts stainless steel frame (304).
7. The whole machine has beautiful design, convenient operation, convenient maintenance and stable work.

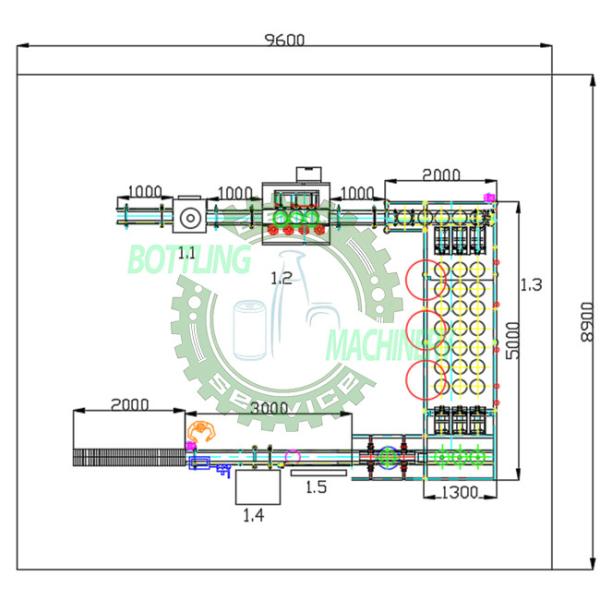

Design process of automatic large barrel water filling and packaging production line:

Into the barrel conveying→Automatic lid removal machine→Empty barrel conveyor line→Automatic barrel brushing machine→Empty barrel conveyor line→Empty barrel light inspection→Automatic barrel loading device→Automatic washing and disinfection integrated machine→Automatic lidding machine→Automatic lid sorting and feeding System → barrel lid flushing device → automatic filling machine → hanging cap and capping device → finished water output line → finished water lamp inspection → steam generator and rubber cap shrinking machine → drying and coding → automatic bagging machine → finished water Conveying → Palletizer or finished product warehouse

Equipment list of 450BPH 5 gallon barrel water packing line:
