200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine
200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine
200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine
200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine
200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine
200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine
200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine
200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine
Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
QGF-200
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
3700-5500USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10sets per month
Delivery Time :
20-25 working days
Packaging Details :
Sea shipping Wooden case
Name :
5 gallon Bottle water filling machine
Capavity :
200 bottles per hour(for 18.9L bottle)
Filling head :
2 pcs
Washing process :
4 steps washing
Control :
PID microcomputer system
Magnetic valve :
Air tech-Taiwan
Cylinder :
Air tech-Taiwan
Dimension :
300*780*1740mm
Description

Description of 200BPH 3 in 1 monoblock 20L barrel 5 gallon water bottling machine


200bph 5-Gal bottle filling machine:
- The bottle washing machine, filling machine and sealing machine are integrated into one;
- Made of high quality stainless steel, corrosion resistant, easy to clean or wash;

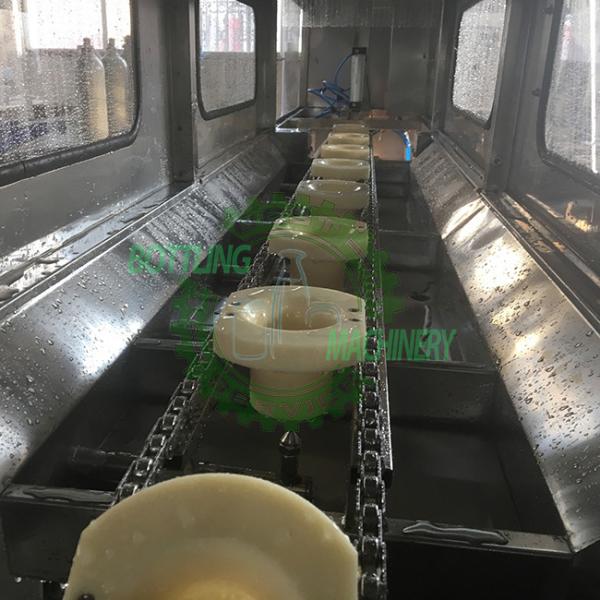

- the bottle washer is cleaned with multiple injections and disinfectant spray, and the cleaning solution can be recycled.
- The key electrical and pneumatic components are imported famous brands;
- All pumps are the first pumps in South China;
We have filling machines for 5-Gal or 3-Gal bottles. There are several types of 5-Gal filling machine to choose from, including: 100bph 200bph, 300bph, 450bph, 600BPH, 900bph, 1200bph, etc;

Characters:
1, The whole machine is controlled by PID microcomputer system, all cylinder travel is calculated in advance for driven distance;
2, The machine can work under automatic model, manual model is for machine checking;

Parameters:
Cylinder: Air tech-Taiwan
Magnetic valve: Air tech-Taiwan
Rising pump-filling pump: Nanfang
Motor: TWT Taiwan
Power: 5.3KW
Dimension: 3300*780*1740mm
Weight: 320kg

Equipment list of 200BPH 5 gallon bottle water packing line:

Items Name of machine Model Size(mm) Qty.
200BPH 5 Gallon bottling part
1.1 Semi-auto de-capper and brush washer with full SUS304 BS-1 900*900*1250 1set
1.2 Monoblock rinser-filler-capper with full SUS304 QGF-200 3400*780*1950 1set
1.3 Light checker / / 1pc
1.4 Roller conveyor / / 2m
1.5 Label shrink tunnel / 600*600*1000 1set
1.6 Solid Ink Roll Coding Machine FP-380F 440*345*300 1set

200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine

200BPH 3 In 1 Monoblock 20L Barrel 5 Gallon Water Bottling Machine
