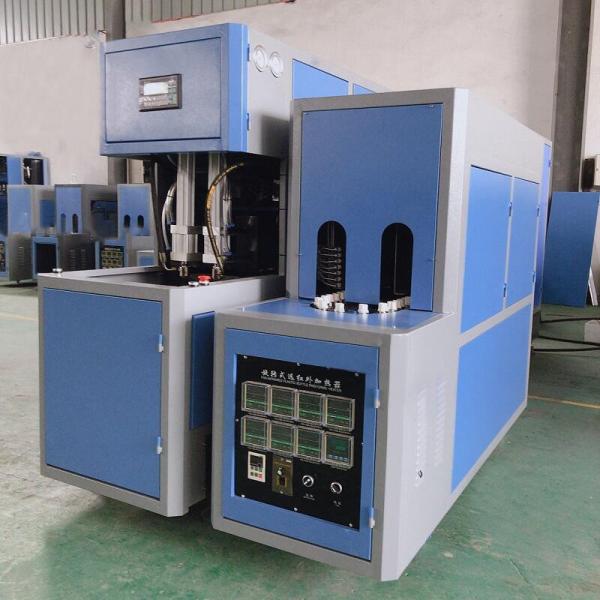

1200BPH Semi Auto 1 Cavity 500ml Water Bottle Blow Molding Machine
1200BPH Semi Auto 1 Cavity 500ml Water Bottle Blow Molding Machine
1200BPH Semi Auto 1 Cavity 500ml Water Bottle Blow Molding Machine
1200BPH Semi Auto 1 Cavity 500ml Water Bottle Blow Molding Machine
1200BPH Semi Auto 1 Cavity 500ml Water Bottle Blow Molding Machine
1200BPH Semi Auto 1 Cavity 500ml Water Bottle Blow Molding Machine
1200BPH Semi Auto 1 Cavity 500ml Water Bottle Blow Molding Machine
1200BPH Semi Auto 1 Cavity 500ml Water Bottle Blow Molding Machine
Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
BL-1200A
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1 set
Price :
USD$5500-6500/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20sets per month
Delivery Time :
20-25 working days
Packaging Details :
Sea shipping Wooden case
Name :
1200BPH semi-auto 0-2L bottle blow molding machine
Production Capacity :
1000BPH
Automation: :
Semi-automatic
Suitable bottle: :
0-2L PET Bottle
Key Selling Points: :
Easy to Operate
Max.length :
360mm
Max.diameter :
180mm
Blower+Heater :
750Kg
Description

Production of 1200BPH semi auto 1 cavity 500ml water bottle blow molding machine

BL-1200A Stretch Blow Molding Machine is suitable to produce different shapes of PET/PC bottles. It can blow from 100ml to 2000ml bottles and is widely used to produce mineral water bottles,carbonater soft drink bottles,juice bottles,medical botties,cosmetic and oil bottles etc.

1. Clamping part of 1200BPH semi-auto 0-2L bottle blow molding machine:
The front and rear fixed template, the intermediate movable template, the double toggle link mechanism, and the mold clamping cylinder push the cylinder piston through the electromagnetic directional control valve to drive the connecting rod toggle to realize the mold clamping action. Because the cylinder force is balanced with the four axes, the double toggle has two upper and lower fulcrums
Mold clamping, so the template runs smoothly, the clamping force is large, and the mold clamping structure design is reasonable.
2. Stretch the blowing part of 1200BPH semi-auto 0-2L bottle blow molding machine:
It is composed of a stretch solenoid valve, a high-pressure blowing valve, a stretch sealing cylinder, a movable sealing block, and a blowing air storage tank. When working, the drawing cylinder piston and the sealing cylinder piston are pushed by the electromagnetic direction control valve to drive the drawing rod and the sealing cylinder to fall on the closed mold. The sealing cylinder seals the preform mouth, and the drawing rod is elastic to the heated one. The preform is stretched longitudinally, and the gas stored in the gas tank is blown into the preform in both directions by the high-pressure blowing valve through the sealing cylinder.

Main parameter of 1200BPH semi-auto 0-2L bottle blow molding machine:
Model BL-1200A
　　Container Product material PET,PP,PE
Volume 0.1-2
Theoretical output 800-1000
Preform length 15-350
Preform inner diameter Φ5-38
　　Moulding Max.mould plate Dimension(L x W) 350×380
Max.mould thickness 180
Clamping force 45
Mould opening stroke 16
　　Machine size and weight Main machine (L x W x H) 160×60×161cm
Main machine weight 500
Heater (L x W x H) 187×63×145cm
Heater weight 250
Power 17.5
