Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
BL-4000
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
35000-36000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5sets per month
Delivery Time :
20-25 working days
Packaging Details :
Sea shipping Wooden case
Name :
4000BPH 0-2L Automatic 4 Cavity PET bottle blow molding machine
Capavity :
3500-4000 bottles per hour
Cavity :
4 cavities
Finished bottle :
0.1-2Liters

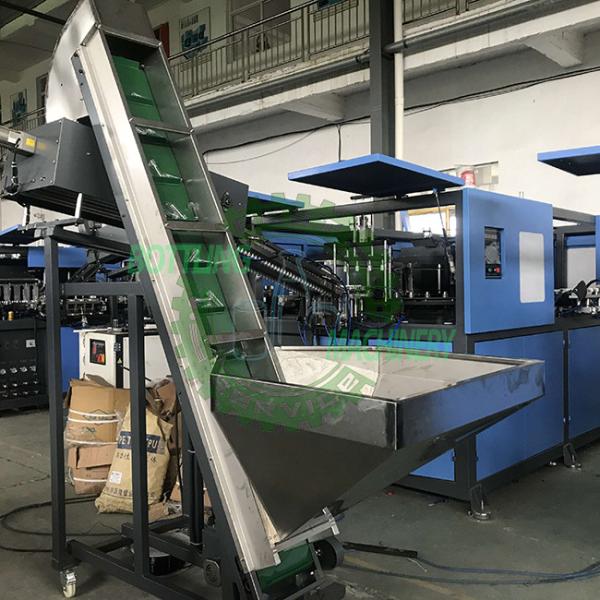

Preform unscrambler :
2000*1350*2550mm
Main machine :
2360*1995*2030mm
Main machine weight :
3600KG
Rated Power :
49KW
Description
Description of 4000BPH carbonated soft drink shampoo water bottle stretch blow molding machine

4 cavity Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Automatic blowing mould of 4000BPH 0-2L Automatic 4 Cavity PET bottle blow molding machine:
As the bottle design involves the selection/design of the preform, bottle blowing, filling and packaging, we have experienced engineers involved in the bottle design work throughout the process. Before designing, we will fully communicate with customers to understand the needs, consider relevant technical points, provide the final design to meet customer requirements, and ensure smooth production in the future.
Blow mold order process:
1. Verify and confirm the model of the bottle blowing machine.
2. Specification of PET preform used (bottle mouth size, weight, design, etc.). 3. Complete requirements for bottle design.
4. Discuss and submit the design drawings to the customer for confirmation.
5. Whether it needs to be equipped with related replacement parts, such as preform holder stretch rods, etc.
6. Obtain the correct preform sample for testing
7. Complete CNC machining, surface treatment, etc., install and test.
8. Provide the final bottle sample to get the acceptance confirmation, and then ship it.
Operating specifications of 4000BPH 0-2L Automatic 4 Cavity PET bottle blow molding machine:
(1) Before starting each shift, lubricating oil must be added to each movable part once. (Manipulator, manipulator guide rail, mold opening and closing guide rail)
(2) The swing arm can be added once every (3-4) days. The large chain and small chain of the heating machine can be used once a month. Frequently check whether the reducer of the main engine and the reducer of the heating machine are short of oil. The main engine bearing can be added once every 3 months.
(3) Before production, check whether the moving parts are firm, whether the screws are loose and fall off, especially in places with strong impact, whether the belt drive part is abnormal.
(4) Check whether the high-pressure gas source, low-pressure gas source, power source, and water source are normal.

Equipment list of 4000BPH 0-2L Automatic 4 Cavity PET bottle blow molding machine:

Items Name of machine Model Size(mm) Qty.
4 cavity automatic blow molding system
1.1 Blow Molding Machine BL-4000 2360*1995*2030 1 set
Preform unscramble 2000*1350*2550 1 set

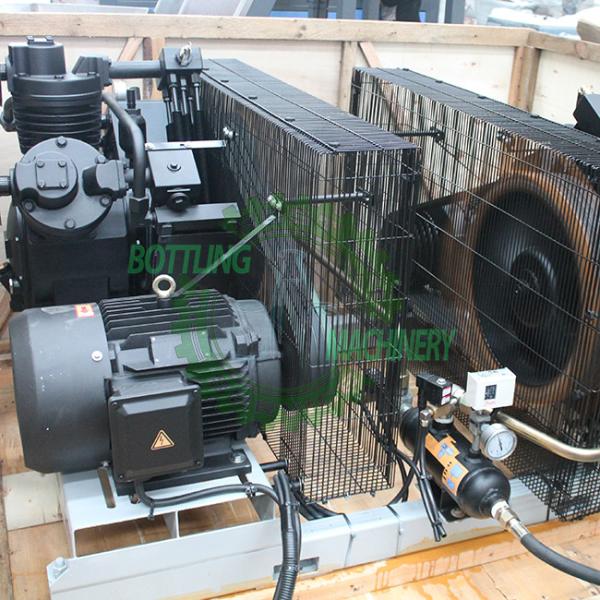

1.2 HP Air Compressor 2.4 m3/ min30Kg 1910*1630*1180 1 set
1.3 LP Air Compressor 1.6 m3/min 10Kg 2000*1050*1900 1 set
1.4 Air dryer 2.0 m3/min 30Kg 1050*650*1100 1 set
1.5 Air Filters 2.0 m3/min 30Kg 750*350*350 2 sets
1.6 Air Tank 0.6 m3 30Kg 1200*1100*1650 1 set
1.7 Mould Chiller BL-3HP 1100*680*1200 1 set
1.8 Blow mould 250-2000ml 4cavity 1 set

Parameters of 4000BPH 0-2L Automatic 4 Cavity PET bottle blow molding machine:

Main part:
Pneumatic part Valve SMC
Cylinder
Electric part PLC LG
Operating system LG
Relay OMRON
Infrared thermometer America raytek
Note All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.
Main parameter:
Model BL-4000
Productivity Depend on bottle design 3200-4000PCS/H
Product type Body diameter 20mm-100mm
Height 50mm-350mm
Neck diameter 15mm-38mm
Mold Cavity 4cavities
Mold thick 240mm
Mold 500*500mm
Main machine power Electrical source power 380v 3Phase /220v 3Phase 50/60HZ
Rated Power 49kw
Really use power 14kw
Size L*W*H 2360*1995*2030mm
Weight 3600kg
Auxiliary equipment(preform unscrambler) L*W*H 2000*1350*2550mm
Weight 250kg
Resin available PET
