Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
R QS-12 RG-12 FXZ-1
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
30000-40000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2sets per month
Delivery Time :
25-30 working days
Packaging Details :
Sea shipping Wooden case
Application :
Mixed juice processing filling packing
Capavity :
1500bottles per hour
Applicable bottle :
0-2L bottle
Flavor juice making line :
500LPH
Control :
PCL
Filling heads12pcs :
12 pcs
Washing heads :
12 pcs
Capping head :
1 pc
Description
Description of PET / plastic bottle hot tea beverage juice bottling line

Description of Linear type automatic 1500BPH juice filling line:

Juice is divided into HPP juice, NFC juice, FC juice, Flavor beverage, Flavor beverage is the most common juice, it is made from juice and some other flavoring materials, then passes through a degasser, homogenizer, UHT high temperature sterilization machine Processing, and the next part is the filling part. The filling machine is different from water filling. The juice filling machine is hot filling, with higher structural requirements. It has a temperature control system to ensure that the juice temperature will not drop. The bottle filled with juice needs to go through a bottle inverting machine and a spray machine. The bottle inverting machine pours the bottle by 90 degrees to let the temperature of the juice sterilize the lid, and the spray machine lowers the temperature of the bottle. The labeling machine and packaging part are behind.

Equipment list of 1500BPH mixing juice filling line:

First part is the RO water treatment system, please check the following parts.

2, 500LPH flavor juice making line:
2.1 Syrup melting pot 300L φ700*1500 1set
2.2 Juice mixing tank 500L φ850*1600mm 2set
2.3 Double filter SL-2 800*350*800 1set
2.4 Homogenizer JJ500-25 1030*650*1090 1set
2.5 Vacuum degasser 1-2T/h 1200*700*1800 1set
2.6 UHT juice sterilizer 1000L 1000*700*1250 1set
2.6.1 Heat transfer oil heating tank / D1200*1850 1set
2.7 Drink pump / / 2set
2.8 Sus pipe-connection DN25 / 1suit
2.9 Aseptic tank 1000L φ1000*2100 1set
3, 1500BPH flavor juice filling-packing line:

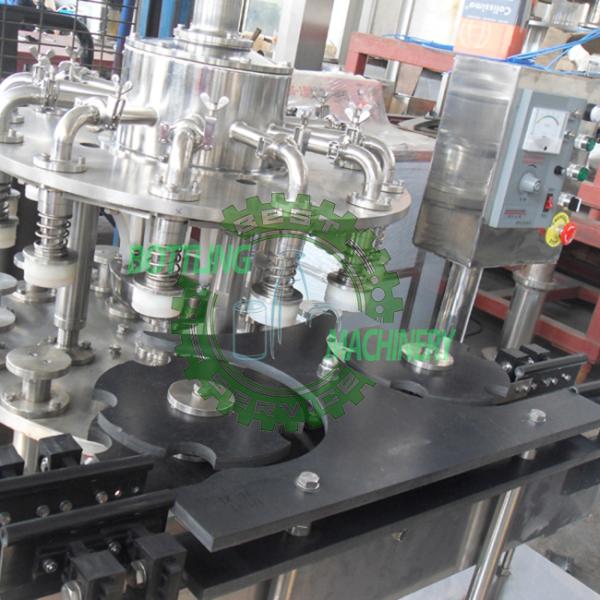

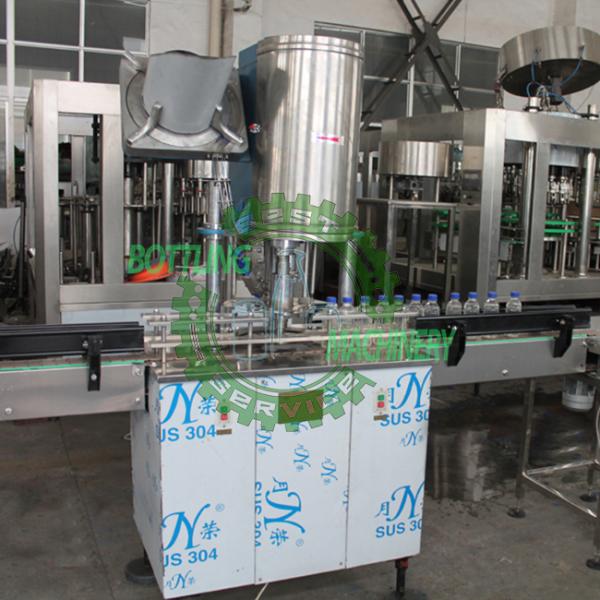

3.1 Linear juice hot filling drink washer-filler-capper QS-12 RG-12 FXZ-1 / 1set
3.1.1 Light inspector / / 1pcs
3.2 Ink jet code printer OH-338 347*220*100 1set
3.3 Sleeve table+ sleeve shrink tunnel + steam generator SB-1200 1200*700*2000 1set
3.4 Semi-auto shrink packing machine 5538+5040 3600*950*1680 1set
3.5 Connection conveyor / / 1suit
