BS-1 Washer And De-Capper For 5 Gallon Water Bottling Machine
BS-1 Washer And De-Capper For 5 Gallon Water Bottling Machine
BS-1 Washer And De-Capper For 5 Gallon Water Bottling Machine
BS-1 Washer And De-Capper For 5 Gallon Water Bottling Machine
BS-1 Washer And De-Capper For 5 Gallon Water Bottling Machine
BS-1 Washer And De-Capper For 5 Gallon Water Bottling Machine
BS-1 Washer And De-Capper For 5 Gallon Water Bottling Machine
BS-1 Washer And De-Capper For 5 Gallon Water Bottling Machine
Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
BS-1
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
700-1000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30sets per month
Delivery Time :
10 working days
Packaging Details :
Sea shipping Wooden case
Application :
5 gallon Bottle water washing machine
Capavity :
200 Gallon bottles per hour
Rated air source pressure :
0.5Mpa/cm2
Air intake :
≥0.1m3/min
Cube thickness :
1.5CM
Machine cube size :
25*25MM
Plate thickness :
1MM
Power :
1.12KW without heating, 2.12KW with heating
Description

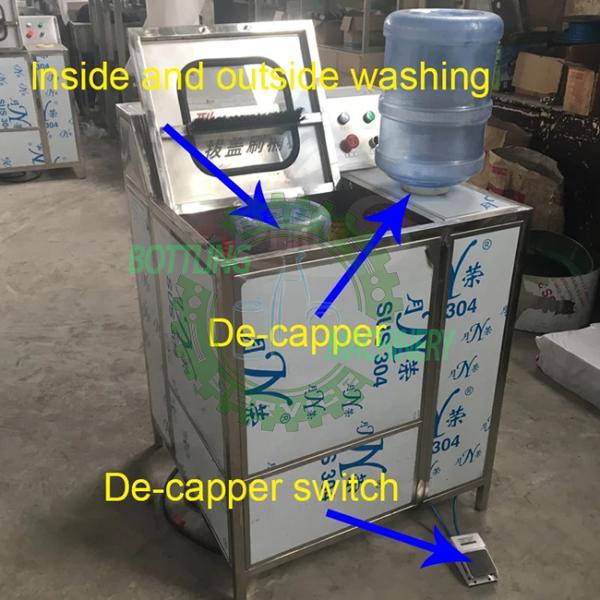

Description of BS-1 washer and de-capper for 5 gallon water bottling machine

Seven advantages of our company's barrel brushing and cap removing machine:

1. Complete self-produced accessories

2. Rotating the central axis can be washed inside and outside

2. The flushing pump adopts stainless steel brand pump

4. Built-in circulating water tank for flushing

5. The quality of the brush is good, durable and does not shed hair

6. Use high quality cap puller

7. The outer shape and thickness of the cover plate is 1.5mm when the cover is pulled out

Overview

The BS-I series of barrel brushing and cap removing unit is mainly to meet the needs of the majority of mineral water plants and purified water manufacturers, and to automate the cumbersome empty barrel treatment process. The company has introduced and absorbed the advanced technology of barrel brushing from abroad, combined with the actual conditions of existing manufacturers and the management requirements of the drinking water industry, and developed the BS-I series of barrel brushing and capping machines. The equipment is reliable, easy to operate, and simple to maintain.

Main technical parameters

Item specifications

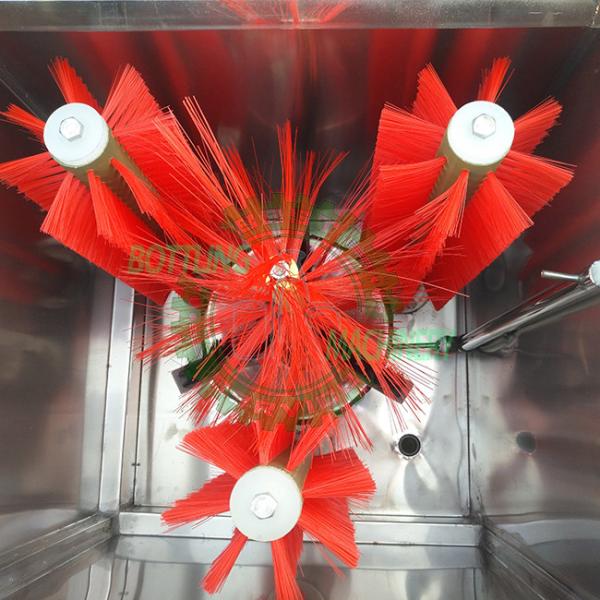

8 brushes (inner, outer, upper and lower)

Number of cap removal: 1

Number of brush heads: 1

Adapt to barrel specifications 5 gallons (Φ270*490*560mm)

Processing rate 150-280 barrels/hour

Dimensions 800*800*1200mm

Total motor power 1.1kw

Weight 150kg

Equipment list of 5 gallon bottle washing machine and cap removing machine:

Items Name of machine Model Qty.
1.1 Semi-auto de-capper and brush washer with full SUS304 BS-1 1set
≥10set
1.2 Semi-auto brush washer(single station) with full SUS304 S-1 1set
≥10set
1.3

Semi-auto de-capper and brush washer

(double station) with full SUS304

 BS-2 1set
≥10set
1.4 Semi-auto brush washer(double station) with full SUS304 S-2 1set
≥10set
Options:
1.5 Add the heating function for brushing 1suit
1.6 Add the barrel inner rinsing station 1suit
Remarks Consider water touching, we use the 100% SUS304 instead of regular material SUS201, pls contact if you need economical price specifications

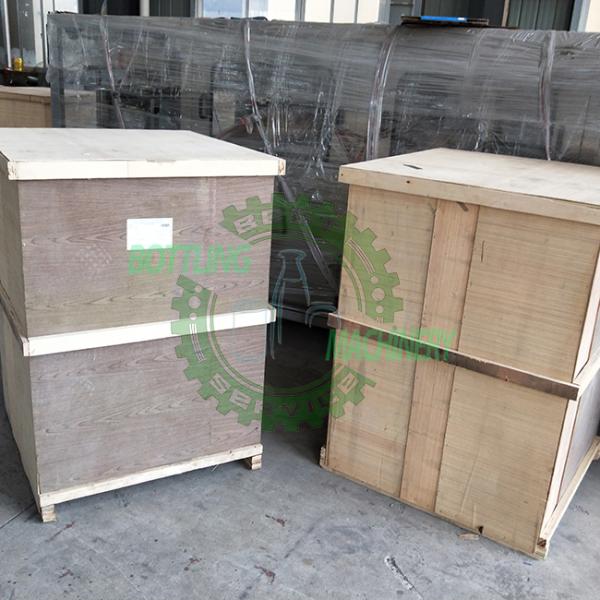

Packing information for each model of machines:
Model Description Packing Qty. Dimensions(mm) Weight
BS-1 de-capper and brush washer

Wooden case

 1Package 900*900*1250 250KG
S-1 brush washer(single station) 1Package 600*750*1150 200KG
BS-2

de-capper and brush washer

(double station)

 1Package 1300*750*1150 300KG
S-2 brush washer(double station) 1Package 1300*750*1150 300KG
BSC-1 de-capper and brush washer with inner rinser 1Package 1200*750*1150 280kg

Spare parts for free:

Inner brush*1

The suggested consumptions of standard machine(single brush washer and de-capper) to purchase as following:

Item Qty. Unit price(USD)
Inner brush 1pcs 25 USD/suit 4 suits suggested per year
Outer brush 3pcs
Bucket neck brush 1pcs
Bucket bottom brush 1pcs
