Description of 1500BPH Stainless Steel 3 / 5 gallon water bottling machine

Linear type external washer:
The machine is controlled by PLC and used for gallon jar outside brush washing; When the jars are sent into the machine by the conveyor, the brushes inside driven by motor will rotate quickly. The main brush shape is made according to jar shape and size which the jar neck and shoulder will be washed completely. Water showing will be done at the same time of brush washing.
No air compressor needed, it is easy for production and maintenance;

Parameters:
Dimension: 3500*1200*2100mm
Weight: 1000kg
Power: 3 KW
Main brush :20pc
Bottom brush :10pcs
Water tank:1pc
With the protect barrel function

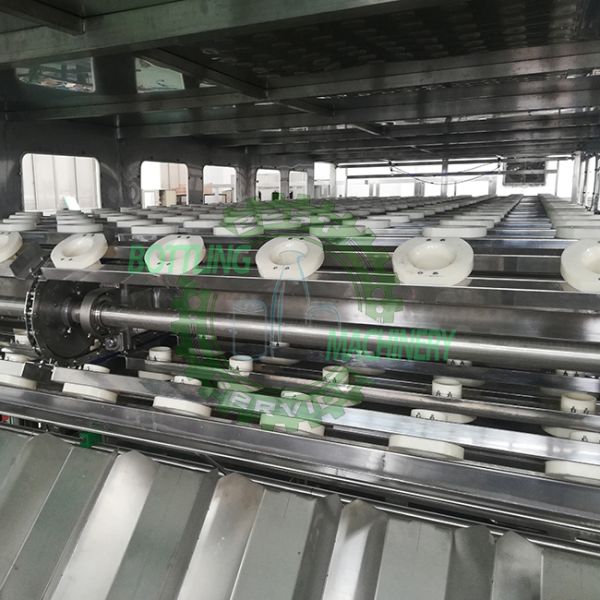

Monoblock jar rinser(with up-down type rinsing heads)

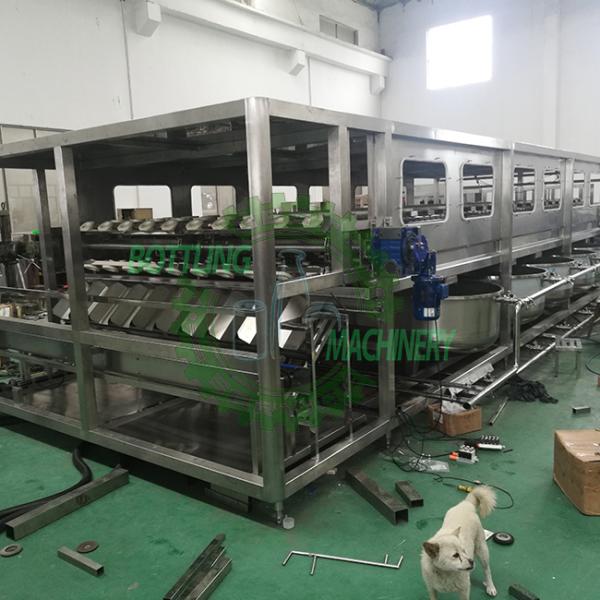

When the power is turned on, PLC was electric start work, the flushing and chain conveyor electrical work, then automatic bottle makes the bottle gradually into each process starts flushing (flushing time and lye temperature can be adjusted via the touch screen), flushing is completed, bottle after bottle rack down to fall on the conveyor.
The machine has four tanks: 2pcs hot alkaline water tank(different target temperature), 1pc of disinfect water tank, 1pc back water tank. a funnel with a Plexiglas cover, you can inside the water level monitoring.
Tank has a low level alarm, when too much water, it can overflow through the overflow port; alkali tanks are equipped with thermostatically controlled heater.Each tank has a bottom drainage, mix water is discharged through the outlet via the drainage duct.
Pure water is not equipped with a water tank, direct access to NanFang water pumps.Each pump outlet has a valve, flush the water off automatically guarantee pass; does not work when the outlet water from the valve to return to their tank (finished water back to the pump before the pipeline), to avoid the pump frequent starting, improved life of the pump.
Bottle unloading mechanism consists of propping bucket, bottle rack stand, vertical cylinders and other components, bottle washing is completed, after falling off the bottle, directly on the conveyor.

Parameters:
Plate thickness: 2mm SUS 304
Water pump: NanFang
Motor: SANLI
Cylinder: AIRTAC
Photo sensor: Autonics
Air consumption: 0.6M3/min; 0.6Mpa
Heating Power: 18KW, other parts Power: 6KW
Dimension: 13000*2300*2500mm
Weight: 5500kg

Automatic rotary jar filler
Parameters:
Power: 5KW
Filling heads: 14pcs
Dimension: 3000*2300*2200mm
Weight: 3000kg

Automatic Arm rotary type stacker
It adopts slide-type self-gravity roller conveyor to transfer the barrel, no power consumption in standby;
The automatic palletizer can stack five gallons of finished water into 3 layers, each with 16 barrels, that is, 16*3=48 barrels, and the speed can reach -2000 barrels/H, which not only saves the area of finished water, but also greatly saves Number of labor and labor intensity of workers;
This product has the advantages of perfect performance, simple operation, stable and reliable work, reasonable structure, convenient maintenance, and high degree of automation. It meets the requirements of food hygiene and is the most ideal product for 5-gallon barrel drinking water manufacturers.

Equipment list of 1500BPH 5 gallon bottle packing line:

Monoblock jar rinser:
