350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine
350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine
350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine
350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine
350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine
350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine
350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine
350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine
Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
BL-500C
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
9000-10000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10sets per month
Delivery Time :
20-25 working days
Packaging Details :
Sea shipping Wooden case
Name :
Semi-auto 1 cavity blow molding machine for 10L PET bottle
Capavity :
350 bottles per hour
Cavity :
1 cavities
Finished bottle :
5-10Liters
Structure :
1 preform heater + 1 blower
Main machine (L x W x H) :
2000*630*1570mm
Heater (L x W x H) :
2170*565*1360mm
Power :
40kw
Description
Description of 350BPH semi auto 1 cavity 3 gallon 5L-10L bottle blow molding machine

The 10L one blower + one preform heater semi automatic blow molding machine is suitable for blowing PET plastic bottles under 10 liters, including oil bottles, water bottles, and marine float bottles. It is a multifunctional plastic bottle blowing equipment, which can be used to produce various plastic packaging containers such as PET mineral water bottles, beverage bottles, oil bottles, daily chemical packaging bottles, etc.
The machine is divided into two parts, one part is the main machine (blowing bottles), and the other part is the oven (heating preforms)
The host is equipped with a microcomputer controller, and the machine is equipped with an emergency button, which has the function of preventing hands from being pinched, which greatly improves the productivity of workers! The exhaust gas of the machine body is discharged through the muffler to reduce noise.
The oven uses 380v three-phase industrial electricity, the heater uses infrared lamps, and the transmission part uses a three-phase motor.
1) Adopt a special electric control loop to design the lamp heating, which can adopt single or multiple synchronous control with high efficiency and reduce power consumption;
2) The system is equipped with a muffler, connecting rod and crank arm refueling device;
3) The preform will not be caught dry by external environmental factors and will be evenly heated;
4) The cold air circulation cooling system can ensure the heating consistency of the inner and outer walls of the preform;

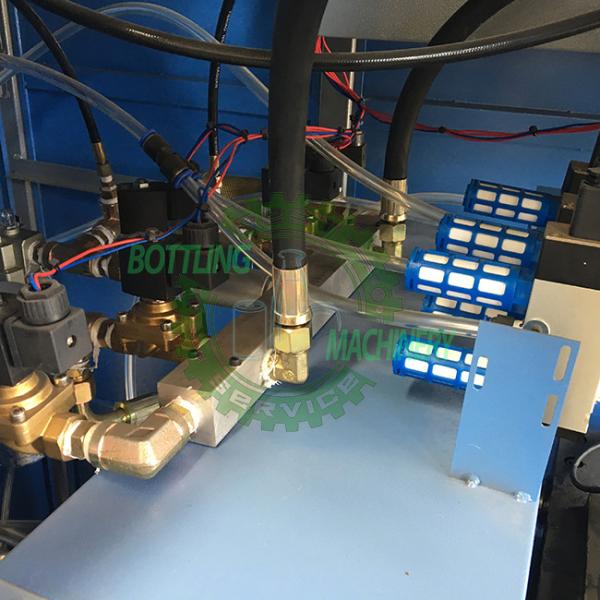

5) The air circuit system is divided into two parts: action and blowing to meet the needs of different air pressures for action and blowing, and can provide stable high pressure to blow large-volume bottles with special shapes;
6) The operation is divided into two modes: inching and semi-automatic;

Equipment list of 350BPH Semi-auto 1 cavity blow molding machine for 10L PET bottle:

ITEMS NAME MODEL Size(mm) Qty.

1.1

 Blow Molding Machine

BL-500C

1 blower+1 heater

2000*630*1570

2170*565*1360

 1set

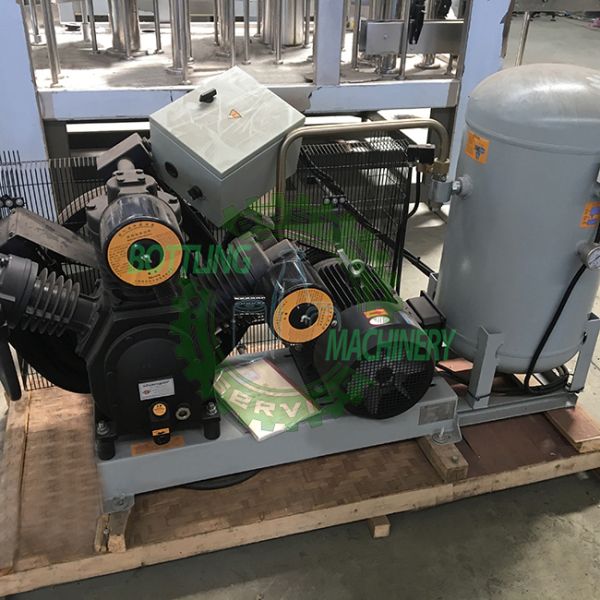

1.2 HP Air Compressor

1.2m3/min 30Kg

With air tank

1900*1000*1300

15kw

 1set
1.3 Air filter 2.0m3/min 30kg 300*300*660 2sets
1.4.1 Blow Mold 10L one cavity / 1set
1.4.2 Blow Mold 5L one cavity / 1set
OPTION
1.5 Mould Chiller 3HP 1200*680*1100 1set
1.6 Air dryer 2.0 m3/min 30Kg 630*420*800 1set

Parameter of 350BPH Semi-auto 1 cavity blow molding machine for 10L PET bottle:
Model BL-500C

Container

 Product material PET
Volume 5-10L
output Within250-350PCS/H
Preform length 15mm-320mm
Preform inner diameter φ5mm-200mm

Moulding

 Max.mould plate Dimension (L x W) 520x350mm
Max.mould thickness 180mm
Clamping force 480KN
Mould opening stroke 420mm

Machine size and weight

 Main machine (L x W x H) 2000*630*1570mm
Main machine weight 900Kg
Heater (L x W x H) 2170*565*1360mm
Heater weight 350Kg
Power 40kw

350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine

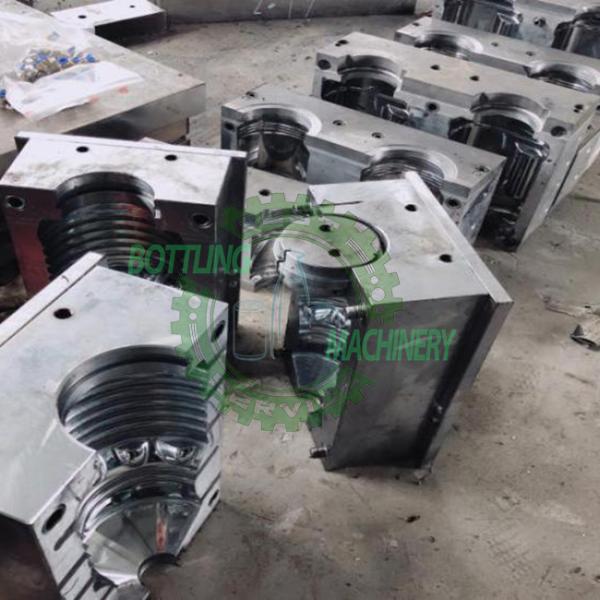

10L bottle blow mold:

350BPH Semi Auto 1 Cavity 3 Gallon 5L-10L Bottle Blow Molding Machine
