2000BPH Automatic PET / Plastic Cosmetic Oil Water Bottle Blow Molding Machine
2000BPH Automatic PET / Plastic Cosmetic Oil Water Bottle Blow Molding Machine
2000BPH Automatic PET / Plastic Cosmetic Oil Water Bottle Blow Molding Machine
2000BPH Automatic PET / Plastic Cosmetic Oil Water Bottle Blow Molding Machine
2000BPH Automatic PET / Plastic Cosmetic Oil Water Bottle Blow Molding Machine
2000BPH Automatic PET / Plastic Cosmetic Oil Water Bottle Blow Molding Machine
2000BPH Automatic PET / Plastic Cosmetic Oil Water Bottle Blow Molding Machine
2000BPH Automatic PET / Plastic Cosmetic Oil Water Bottle Blow Molding Machine
Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
BL-2000
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
23000-24000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5sets per month
Delivery Time :
20-25 working days
Packaging Details :
Sea shipping Wooden case
Name :
2000BPH 0-2L Automatic 2 Cavity PET bottle blow molding machine
Capavity :
2000-2400 bottles per hour
Cavity :
2 cavities
Finished bottle :
0.1-2Liters
Preform unscrambler :
2000*950*2480mm
Main machine :
2500*1650*1850mm
Main machine weight :
3200KG
Install Power-Using power :
18KW
Description
Description of 2000BPH automatic PET / plastic cosmetic oil water bottle blow molding machine

BL-2000 type Automatic blow molding machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles, cola bottles etc.

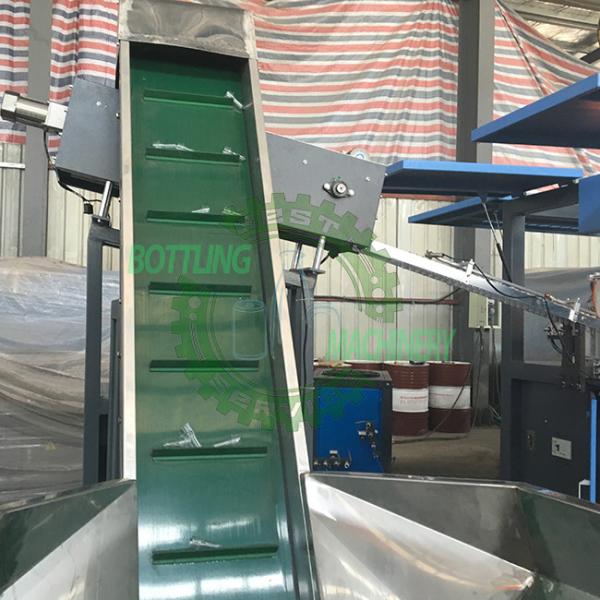

1. Pre-formed loading
The preforms are manually poured into the hopper, and then the preforms enter the preform guide along with the conveyor. Then the ordered preforms will automatically enter the equipment. This type of loading is fully automatically controlled, highly efficient, and will not damage the execution.
2. Heating adjustment
The heating head automatically receives continuously, and performs an average circle automatic operation, so that proper heating can be obtained when the heating area is moved. The blowing machine adopts far infrared heating, and each lamp can independently control the temperature. If the lamp is out of power, the machine will automatically alarm for testing. The airflow in the heating area and the precisely designed surface neck protection device, in this case, can achieve the ideal temperature heating without affecting the bottleneck. If necessary, a temperature test device can help automatically adjust the temperature. Each type of heating temperature is displayed on the instrument, with simple appearance and convenient operation.

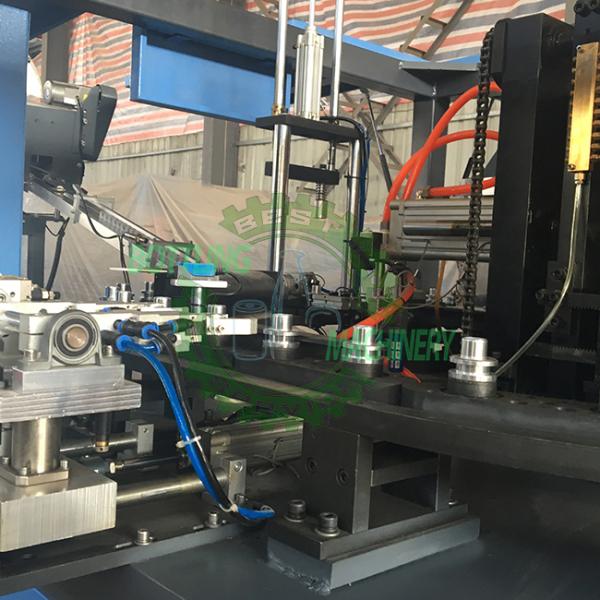

3. Stretch blow
PLC can precisely control the opening and closing of the mold base. The structure of the mold base is simple and stable, and it is more convenient to replace the mold. The mold locking and pressure expansion system is special. The blowing data of each cavity is easily controlled by the touch screen, and it has a good test function. The special structure of the mouthpiece ensures stable sealing under different blowing pressures and ensures the rate of finished bottles.
4. The bottle pops up
After blowing, the robot hand will automatically take out the finished bottle and test the bottle, if the bottle cannot be automatically kicked out. This ensures continuous production. The bottles are transported to the filling machine via an air conveyor.

Equipment list of 2000BPH 0-2L Automatic 2 Cavity PET bottle blow molding machine:

Items Name of machine Model Size(mm) Qty.
1,2 cavity automatic blow molding system : Total 23,780USD

1.1

 Automatic blow molding machine

BL-2000

 2500*1650*1850 1set
Preform unscramble 2000*950*2480 1set

1.2

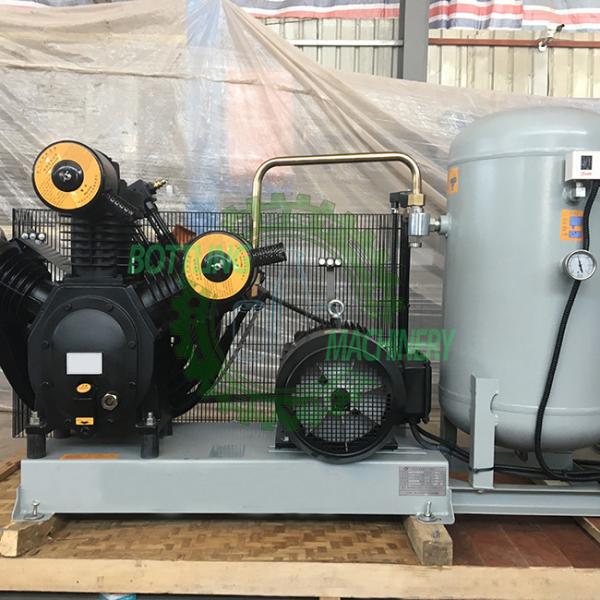

 HP Air Compressor 1.6m3/min 30Kg 1300*1100*1750 1set

1.3

 LP Air Compressor 1.6m3/min 10Kg 1700*760*1440 1set
1.4 Air storage tank 0.6m3 30Kg 1200*1100*1650 1set
1.5 Air cooling dryer 2.0m3/min 30Kg 1050*650*1100 1set
1.6 Air filter 2.0m3/min 30Kg 750*350*350 2set

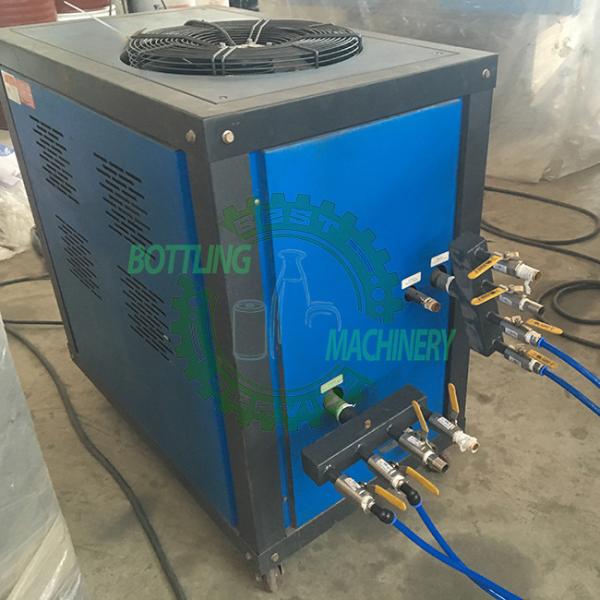

1.7 Mould chiller 3HP 850*560*1040 1set
1.8 Blow mould 250-2000ml 2cavity 1 set

Main parameter of 2000BPH 0-2L Automatic 2 Cavity PET bottle blow molding machine:
Model BL-2000

Container

 Product material PET
Volume 0.1L-2L
Theoretical output 2000-2400PCS/H (0.5L)
Applicable bottle body diameter 20-92mm
Applicable bottle height 50-350mm

Moulding

 Max.mould plate Dimension(L x W) 450x490mm
Max.mould thickness 180mm

Machine size and weight

 Main machine (L x W x H) 2500*1650*1850mm
Main machine weight 3200Kg
Preform unscrambler (L x W x H) 2000*950*2480mm
Unscrambler weight 250Kg
Install Power-Using power 18kw
