Specifications
Brand Name :
BOTTLING MACHINERY
Model Number :
DCGF12-12-4G
Certification :
CE/ISO9001-2008
Place of Origin :
Zhangjiagang city Jiangsu provice China
MOQ :
1
Price :
170000-19000USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5sets per month
Delivery Time :
25-30 working days
Packaging Details :
Sea shipping Wooden case
Name :
3 in 1 12-12-4 glass bottle crown cap beer / gas drink filling machine
Capavity :
2000 bottles per hour
Applicable bottle :
0-2L glass bottle
Cap type :
Crown cap
Filling temp :
≤4℃
Main motor Power :
2.2KW
Machine type :
3 in 1 monoblock
Suitable filling liquid :
Beer, soda, carbonated drink, soft drink, wine with gas etc.
Description
Description of PLC and touch screen crown cap Isobaric beer carbonated drink filling line

1. The basic characteristics of carbonated drinks
(1) Definition of carbonated drinks: refers to the general term for soft drinks containing CO2
(2) Classification
1. Juice carbonated beverages: refers to juices containing 2.5% and above
2. Fruit-flavored carbonated beverages: use spices as the main flavoring agent, and the juice content is less than 2.5%
3. Cola-type carbonated drinks: Contains kola nut, white lemon, laurel, caramel coloring
4. Other types of carbonated drinks: milk protein carbonated drinks, ice cream soda, etc.
(3) The solubility of CO2 in water
1. The role of CO2 in carbonated beverages
2. Solubility of CO2 in liquid
The influencing factors are:
1 The temperature of the liquid
2 Pressure caused by the environment
3 Area and time of contact between liquid and CO2
4 The purity of CO2
(4) Main equipment for carbonated beverage production
1. Water treatment equipment (clarification, filtration and purification, etc., water treatment has been discussed above)
2. Syrup preparation equipment (sugar pot, sandwich pot, batching tank)
3. Carbonation equipment: CO2 gas pressure regulating station, water cooler, soda water mixer)
4. Bottle washing equipment 5. Filling equipment 6. Packaging equipment
2. The production process of carbonated beverages
(1) Preparation and mixing of syrup
1. Sugar dissolution:
(1) Cold melt method
(2) Hot melt method
2. Blending the syrup
Adding order: original syrup (add sweetener) → add preservative → add sour agent → add fruit juice → flavor → pigment → water (carbonated water)
(2) Carbonation process
1. CO2 gas pressure regulating station 2. Water cooler 3. Soda water mixer (carbonation tank) (4) Filling, labeling, inspection
1. Bottle washing 2. Filling 3. Labeling 4. Cooling, inspection

The carbonated beverage production line is suitable for the production of beverages containing carbon dioxide gas of 350ml, 500ml, 1L, etc. The whole line mainly includes water treatment equipment, ingredient mixing equipment, cooling equipment, filling equipment, light inspection equipment, bottle warming equipment, and drying equipment , Coding equipment, labeling equipment, packaging equipment.
Main feature:

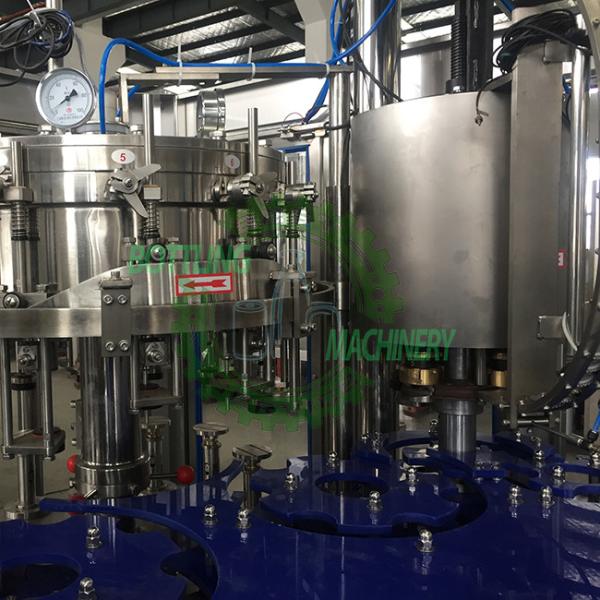

1. The gas-containing production line and filling machine for glass bottles adopt the structure of screw feeding the glass bottles, automatic bottle rinsing, and the principle of lifting and lowering the filling valve, so that the entire line of bottles can be conveyed smoothly;
2. The principle of equal pressure filling is used for fixed-level filling, and the two-time valve opening technology is used to meet the requirements of the full-level filling process;
3. The rotary cap sorter adopts pneumatic cap sorting, which has the functions of not damaging the surface of the cap, sending a signal to the lack of cap in the hopper, and controlling the capping machine to automatically replenish the cap;
4. The whole machine adopts man-machine interface operation, Japan MITSUBISHI PLC is automatic control technology such as computer program automatic control, frequency conversion stepless adjustment, etc. It has automatic shutdown at low temperature, automatic control of feeding and reflux, and has no bottles, no caps, and lack of bottles. Waiting, the cover chute will automatically stop if there is no cover in the cover chute.

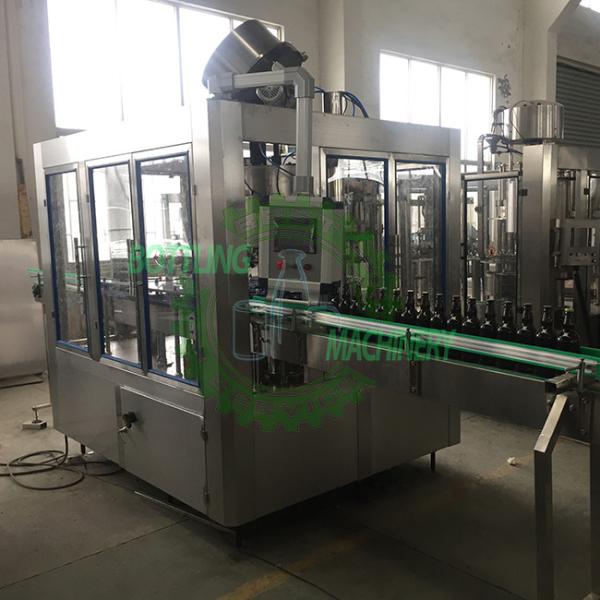

Equiment list of 2000BPH 3 in 1 12-12-4 glass bottle crown cap beer / gas drink filling machine:

4.1 Triblock washing-filling-capping unit DCGF12-12-4G 2350*1850*2100/2450 1set
4.1.1 Air conveyor FS-1 2.2m 1set
4.1.2 Belt conveyor SYS-1 2m 1set
4.1.3 Light checker DJ-1 800 1pc
4.1.4 Air blowing cap elevator TSJ-1 600*600*2800 1set
