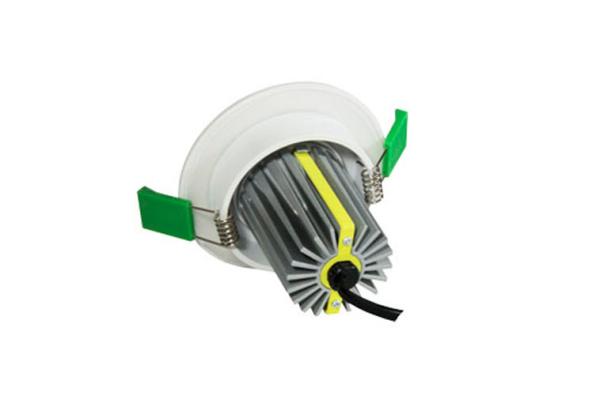

3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting
3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting
3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting
3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting
3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting
3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting
3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting
3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting
Specifications
Place of Origin :
China
Brand Name :
MF
Certification :
CE, RoHS
Model Number :
MF-F01W090
MOQ :
100PCS
Price :
Negotiable
Packaging Details :
100x75x90mm/1pcs, G.W: 221g
Delivery Time :
Depends on orders
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
10,000pcs/Month
Description

3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting



Quick Detail:

  1. 9W COB Modular LED Down light
  2. Input: AC 200V-240V, 50/60Hz
  3. Luminous Flux:≧850Lm
  4. CRI: >85
  5. Beam Angle: 24°,60°
  6. LED chip: CITIZEN
  7. Protection Against Shock: IK01
  8. IP 54
  9. Dimmable: Yes



Description:

MingFeng, as a prominent China COB LED down light company, devotes himself to providing high quality COB LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.


Long LED lifespan comes from scientific thermal management. Superior material, heat sink appearance design and the thermology application, not a single one of these can be dispensed with Ming Feng Lighting utilize distinctive highly thermal conductivity material, unique multi-surface and hole designing for heat sink making the air flow fast, which fully taking away the heat and keeping the junction temperature of LED chips very low.


Specifications:

Model No:

MF-F01W090

Input voltage

200-240Vac, 50hz/60hz

Power(watt)

9W

Dimension

¢90X H65mm, Cut-size: ¢75mm

Color temperature

3000K /4000K/ 5000K

LED Chip

CITIZEN

PF

>0.92

Luminous Flux (lm)

760LM, 850lm

CRI(Ra)

≥85

Lifespan

≥35000hrs

Beam Angle

24°,60°

Material

Aluminum Alloy

Operating Temperature

-200C ~450C

Dimmable

Y

IP

20

Protection Against Shock

IK01

Dimension Single Package

100x75x90mm

Weight Single Package

221g

Certificate

CE/RoHS

Warranty Period

3 years

Competitive Advantage:

  1. High output Citizen COB LED chips
  2. 24°and 60°beam angle for option
  3. High efficient reflector (94%)
  4. CRI > 85
  5. Smooth and linear dimming on most dimmers
  6. Advanced thermal management
  7. Life to 70% lumen maintenance- 45,000hrs
  8. High power factor > 0.92
  9. 3 years guarantee
  10. Professional design compatible with all types of MingFeng mounted ring, and conventional MR16 fitting with “C” clip for fixing

Light distrution curve:

3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting

3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting

Dimension:

3000K 9W 760LM CITIZEN IP54 Grade Dimmable LED Downlights Indoor Lighting
