Specifications
Place of Origin :
China
Brand Name :
MF
Certification :
CE,RoHS,UL,DLC
Model Number :
MF-GS150
MOQ :
100PCS
Price :
Negotiable
Packaging Details :
39.5*39.5*20.8cm/1pcs, G.W: 9.5Kg
Delivery Time :
Depends on orders
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
5,000pcs/Month
System Power :
160±5W
Input Voltage :
85-265Vac, 50/60Hz
Efficiency :
110lm/w
CRI :
>70
PF :
>0.90
IP Grade :
IP66
Mounted Style :
Recessed /Surface/Pendant
THD :
<17%
Impact Protection :
IK10
Explosion Proof :
Yes
Description

LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W


LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

1.System efficiency up to 130lm/Watt.Professional light distribution design

2.IP66 rated and IK08.

3.0-10V,1-10V Dimmable available

4.Photocell available

5.Compact Design, with self-cleaning function.

6.Tool-less Entry, Easy installation and maintenance.

7.Class Il Optional.

8.5 years warranty.

LED calculated life


131,000 hrsLifetime(L70B50)

82,000 hrsLifetime(L80B50)

40,000 hrsLifetime(L90B50)


LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

  • Energy Efficiency: LED street lights are highly energy-efficient, consuming less electricity compared to traditional street lights, resulting in cost savings and reduced environmental impact.
  • Long Lifespan: LED street lights have a significantly longer lifespan than traditional lights, reducing the frequency of replacements and maintenance.
  • Bright and Uniform Illumination: LED street lights provide bright and uniform illumination, ensuring enhanced visibility and safety on the streets.
  • Instantaneous On/Off: LED street lights have instant on/off capabilities, eliminating the warm-up time required by traditional lighting technologies.
  • Directional Lighting: LED street lights offer directional lighting, allowing for better light control and minimizing light pollution by directing light where it is needed most.
  • Smart Lighting Controls: LED street lights can be integrated with smart lighting controls, enabling features such as dimming, remote monitoring, and adaptive lighting, optimizing energy usage and enhancing operational efficiency.

LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

Model No. MF-S19A75H MF-S19A75H-T3M MF-S19A10OH MF-S19A10OH-T3M
Light source Cree 3030 Cree 5050 Cree 5050 Cree 5050
lnputVoltage 100-277VAC50/60Hz 100-277VAC50/60Hz 100-277VAC50/60Hz 100-277VAC50/60Hz
LED Power (w) 65-69 65-69 84-90 84-90
System Power(w) 70-78 70-78 93-102 93-102
Luminous flux (lm) 8,400-9,400 8,400-9,400 10,900-12,300 10,900-12,300
Power Factor >0.95 >0.95 >0.95 >0.95

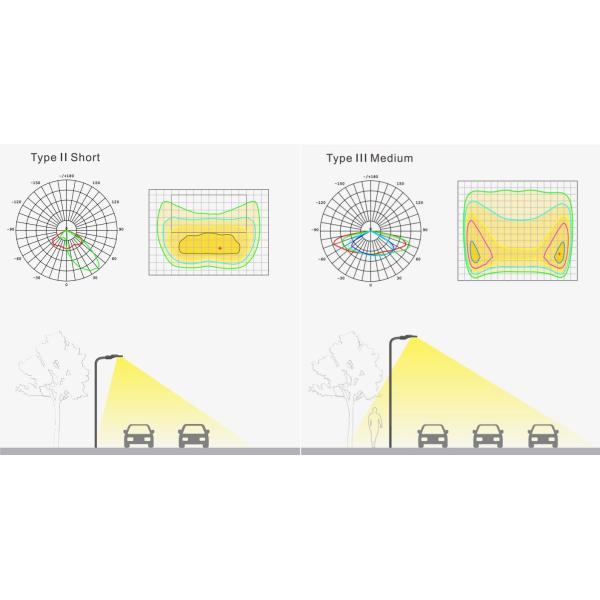

Light Distrlbution Type ll Short Type lll Medium Type ll Short Type lll Medium
CCT (K) 3000/4000/5000/5700 3000/4000/5000/5700 3000/400015000/5700 3000/400015000/5700
CRI >70 >70 >70 >70
THD(230VAC) <20% <20% <20% <20%
Surge Protection CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well)
CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well)
CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well)
CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well)
Powor Cable 1.5m HO5RN-F3×1.0 1.5m HO5RN-F3X1.0 1.5m H05RN-F 3Xx1.0 1.5m H05RN-F 3X1.0
Driver Output Volage (vDc) 32-54 32-54 32-54 32-54
Driver Output Current (mA) 1400 1400 2000 2000
Working Temperature (c) -20 to +50 -20 to+50 -20 to +50 -20 to +50
Working Humidity (RH%) 10-90 10-90 10-90 10-90




LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W




LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W


LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

  1. Parking lot light
  2. Urban/Village Street
  3. Country Road
  4. Highways
  5. Garden/Park
  6. School/Square/Hospital
  7. Avenues
  8. Square and residential area.
  9. Any Large Outdoor Are,et

LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W

LED Street Light Park Sidewalk IP66 Waterproof Ik08 Weather Resistant Proof 25W 50W 75W 100W
