Specifications
Brand Name :
MF
Model Number :
MF-E500162
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
100PCS
Price :
factory price
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
10,000pcs/Month
Delivery Time :
Depends on orders
Packaging Details :
44*42.5*32.5cm/12pcs, G.W: 15.3KG
Power :
22W
Input voltage :
220-240Vac, 50/60Hz
Luminous Flux :
1870lm
UGR :
<19
Beam angle :
40 Deg.
CCT :
3000K / 4000K / 6000K
Efficiency :
95lm/w
LED Brand :
COB CREE
LED Driver :
Lifud/meanwell
Certificated :
CE, RoHS
Description

Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
30Wattage COB IP65 Led DownLights, 3000K/4000K/6000K, UGR<19, 40° Beam angle



Description:

MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality IP65 Waterproof COB LED down lights for the replacement of traditional down lights in residential, museum, office and commercial applications.


MingFeng IP65 waterproof COB led down lights use USA COB CREE LEDS, IP67 MEANWELL DRIVER, whole lamp waterproof protection up to IP67, power are 12W/16W/22W/30W/40W/50W from 3inch to 8inch, Luminous Flux efficiency up to 90lm/w,Also CRI>80 is available.


The IP65 COB LED DOWN LIGHTS maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.

Our this IP65 waterproof COB LED DOWNLIGHTS widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and some outdoor place.




Specifications: MF-E500162 Spec--22W & 30W.pdf

Model No

MF-E500162

Input voltage

200-240Vac, 50hz/60hz

Power(watt)

22W

Dimension

Product Size: Dia186*90mm, Cutting hole size: 162mm

Color temperature

3000K /4000K/5000K/6000K

LED Chip

COB CREE

LED Driver IP67 MEANWELL

PF

>0.92

Housing Color

Matt White(RAL9003)

Luminous Flux (lm)

1870LM

CRI(Ra)

≥80

Lifespan

≥40000hrs

Beam Angle

400

Material

Die-casting Aluminum

Operating Temperature

-200C ~400C

Dimmable

Y

IP

IP65

Protection Against Shock

IK01

Dimension Single Package

240x230x116mm,

Weight Single Package

1.32KG

Certificate

CE/RoHS

Warranty Period

3 /5 years



Competitive Advantage:

  1. Die-casting aluminum heatsink, advanced cooling system.
  2. High output CREE COB LED Chips.
  3. Stable performance IP67 waterproof driver.
  4. 40 degree flood beam angle, soft light effect.
  5. Excellent reflector, complete visual comfort.
  6. IP65 design suitable for outdoor application.
  7. Both CRI>80 and CRI>90 for option.
  8. Kn<10 driver, waterproof meanwell led driver, reliable performance.
  9. Smooth dimming on most dimmers.
  10. Life to 70% lumen maintenance, 45,000 hours.
  11. High power factor>0.92.
  12. 3 or 5 years guarantee options.

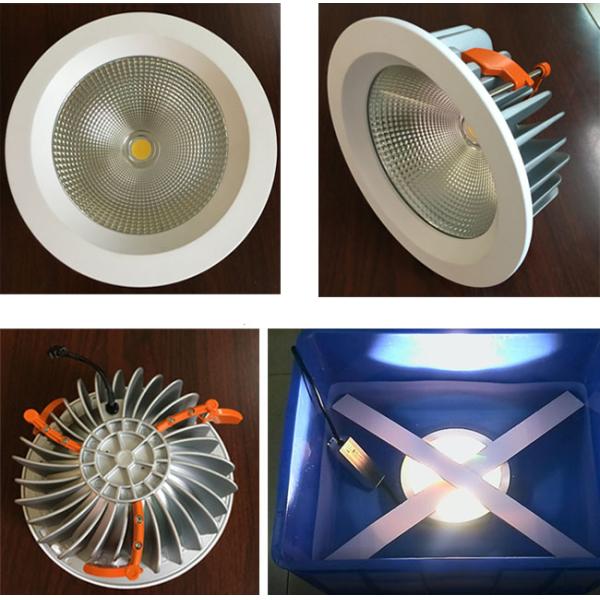

30Wattage COB IP65 Led DownLights​​ SHOW:
