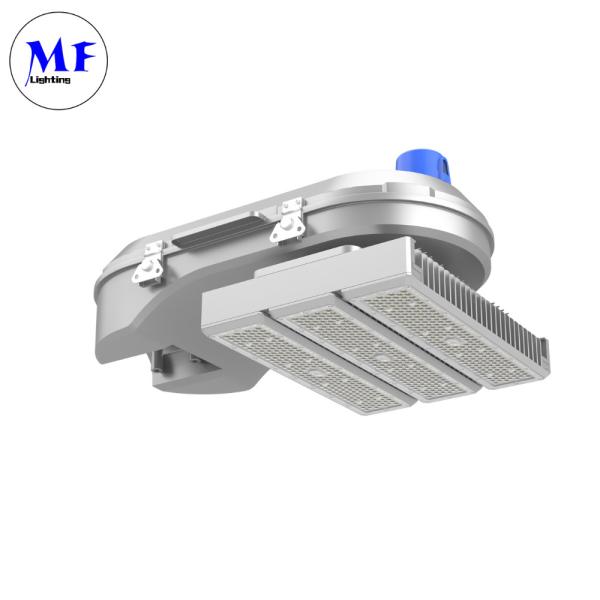

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
Specifications
Place of Origin :
China
Brand Name :
MF
Certification :
CE, RoHS, DLC, UL
Model Number :
MF-Sea Gull High Mast
MOQ :
100PCS
Price :
Negotiable
Packaging Details :
58.5*36.5*18.5cm/1pcs, G.W: 7.0Kg
Delivery Time :
Depends on orders
Payment Terms :
T/T, Western Union,L/C Paypal
Supply Ability :
5,000pcs/Month
CCT :
2700K-6500K
Material :
ADC12 Aluminum Die-Casting Fixture Housing
IP :
66
Power :
400W-600W-800W
Certificated :
CE/ETL/FCC/ROHS/SAA/TUV/CB/UL
Application :
Wharf/Airport/Aproan/Stadium/Highway/Sea Port/etc
Input Voltage :
AC100-305V,50-60Hz
LED Brand :
Lumileds
Luminous Efficacy :
140lm/W
CRI(Ra) :
70+/80+/90+
Beam Angle :
30/45/60/90/80*140°/Asymmetrica L60°
Output Voltage :
DC48
Installation :
Pole
Description

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan


IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan

  1. Pole Installation:Suitable for pole diameter from 60mm to 100mm
  2. Clips Design:Opening by two clips, tool-less design, and easy maintenance
  3. 10KV/20KV SKD and Spirit Level,ADC12 Aluminum Die-casting Driver Box
  4. Rotatable 360 °:The lighting fixture can be rotatable 360 degree, easy installation.
  5. NEMA Socket
  6. LED options 3030 & 5050:Top brand LED Chips, high brightness. 3030 LEDs: 140lm/W 5050 LEDs: 150lm/W
  7. ADC12 Aluminum Die-casting Fixture Housing:Die Casting Heat Sink: concise appearance, excellent thermal management & compact
  8. Polycarbonate Lens:Japan brand TElJIN PC with multiple optical lighting design,anti-UV and high mechanical strength.
    Photometry: Symmetrical 30°/45°/60°/90Asymmetric 140°*80°/120*40*60
  9. Tempered Glass Cover Options:4mm high strength tempered glassfurther reduces the UV and anti-rusttypically designed for coastal areas
  10. Copper Breather Valve , Balance Internal and External Humidity and Pressure


IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan

Optical Data
Power 400w
LED Chips Lu-mileds
Luminous Efficacy 140lm/W15%
Luminous Flux Refer to lES
CCT 2700K-6500K
Beam Angle 30/45°/60/90/80*140R/Asymmetrica 160°
CRI(RA) 70+/80+/90+

Electrical Data
Driver Mean-well/So-sen/Inven-tronics
InputVoltage AC100-305V,50-6OHz
Power Factor >0.95
OutputVoltage DC48
Total Harmonic Distortion <15%
DriverEfficiency 92%

Others
lRating lP66
Lifespan 60,000Hrs
Housing Die-Cast Aluminum
Lens Material Polycarbonate
Fixture Size 672*430*304mm
Carton Size
Net Weight 16.9KG
Gross Weight 18.9KG
lnstallation Pole
Diameter 60mm-100mm

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan



Luminous Intensity Distribution Diagram:

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan

Installation:
​IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan

Accessory:

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan
LED High Mast Light

  1. Roads and highways
  2. Parking lots
  3. Sports stadiums
  4. Railroad yards
  5. Shipyards
  6. Warehouses
  7. Truck stops and rest areas
  8. Outdoor parks and recreation areas
  9. Playgrounds
  10. Storage facilities
  11. Any Outdoor place,Etc

IP66 High Mast LED Flood Light Stadium Light High Power 400W 600W 800W For Wharf Airport Aproan

About us:

Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
