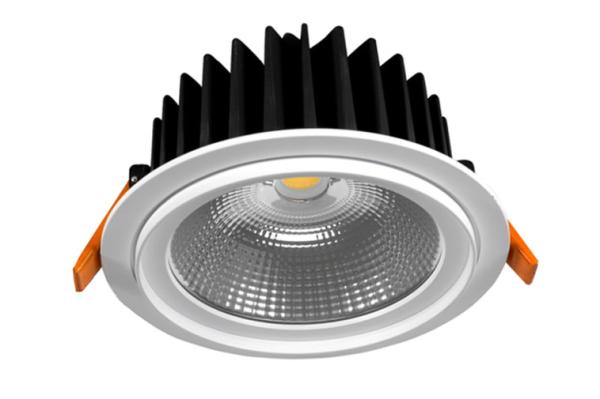

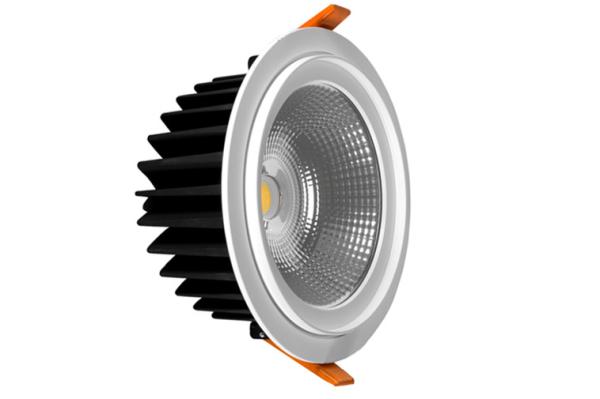

Dimmable AC220-240v 1150lm COB Led Downlight 13w 100lm / W 19 UGR

Quick Detail:

1. 13W/1150LM COB LED Down light
2. Input: AC 200V-240V, 50/60Hz
3. Luminous Flux:≧1150Lm
4. CRI: >83
5. Beam Angle: 45⁰
6. Lifespan: ≧40000Hrs
7. Protection Against Shock: IK01
8. IP: 44
9. Dimmable: Yes

Description:

MingFeng, as a prominent China LED down light manufacotry, devotes himself to providing high quality COB LED down light for the replacement of traditional down lights in residential, museum, office and commercial applications.
MingFeng D Series COB led down light is the most comprehensive architectural LED downlights in the market to replace CFL downlight, Cut out are 105mm, 145mm, 175mm, power are 13W/19W/27W, Luminous Flux efficiency up to 100lm/w,Also CRI>90 is available, the whole series provide a collection of intelligent led lighting solutions,

A reliable heat management and different optical systems based on the size of the lamps help exploit at the best characteristics of every luminaires, D series COB LED DOWN LIGHT maximize efficacy with minimum maintenance,making surroundings more dynamic. Advanced optic design precisely control the beam angle to achieve an ideal lighting effect. Anti-glare strcuture brings pleasant and comfortable visual experience.


Specifications:

Competitive Advantage:

1. Die-casting aluminum heatsink, advanced cooling system.
2. High output CITIZENCOB LED Chips.
3. Super high efficiency, up to 1150lm at 13W.
4. 45 degree flood beam angle, soft light effect.
5. Excellent reflector, complete visual comfort.
6. IP44 design suitable for damp environment.
7. Both CRI>80 and CRI>90 for option.
8. Kn<10 driver, reliable performance.
9. Smooth dimming on most dimmers.
10. Life to 70% lumen maintenance, 45,000 hours.
11. High power factor>0.92.
12. 3 or 5 years guarantee.

13W/1150LM COB LED DOWN LIGHT SHOW:

Dimension:

Light distribution curve:

Applications:

Widely used in automobile exhibition, clothing shop, furniture store, shoe stores, jewelry store, exhibition, art exhibition hall, the villa, and hotel, etc.
