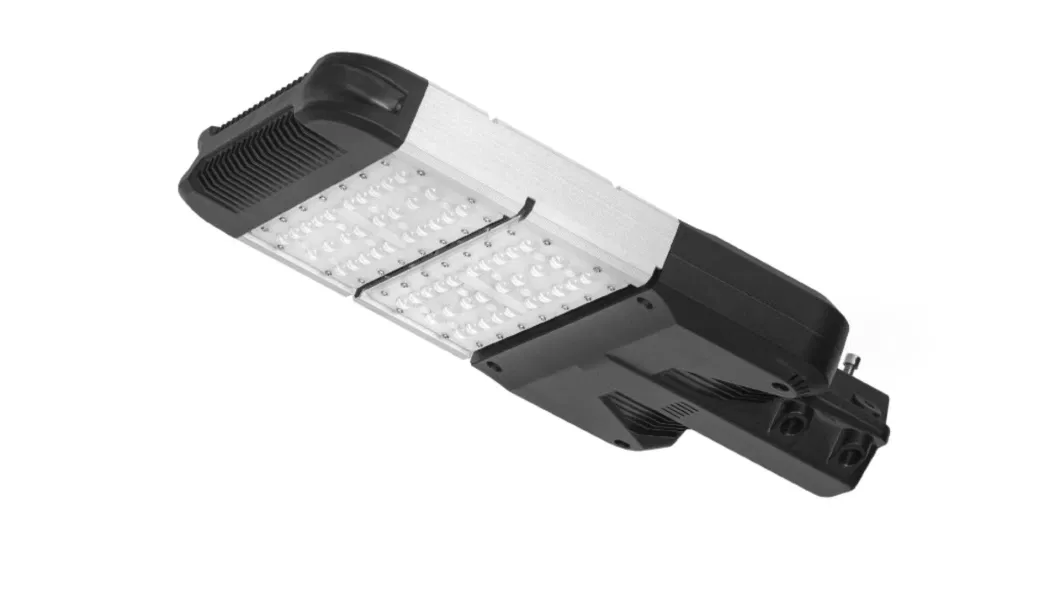

50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
Specifications
Brand Name :
MF
Model Number :
MF Owl Street light 4
Certification :
CE, RoHS,SAA,TUV,CB,ETL,UL
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
5,000pcs/Month
Delivery Time :
Depends on orders
Packaging Details :
16.5*15*22cm/1pcs, G.W: 1.2Kg
Power supply :
AC
CCT :
3000K-6500K
Material :
ADC12 Aluminum Die-Casting + PC
Power :
45W/75W/100W/150W/200W/250W
IP RATE :
IP65
Voltage :
AC 100V-277V
LED Chip :
LuMileds3030
Ik Rate :
Ik10
Beam Angle :
Type I, Type II, Type III,Type V
Lens :
PC+Glass
Smart Control :
Photocell, Motion Sensor, Lora, Zigbee
Luminous Efficacy :
175lm/W
Adjustable Bracket :
90degree and 180 Degree Support, up and Down 30deg
CRI :
Ra70/Ra80/Ra90+
SPD :
4kv/10kv/20kv as Options

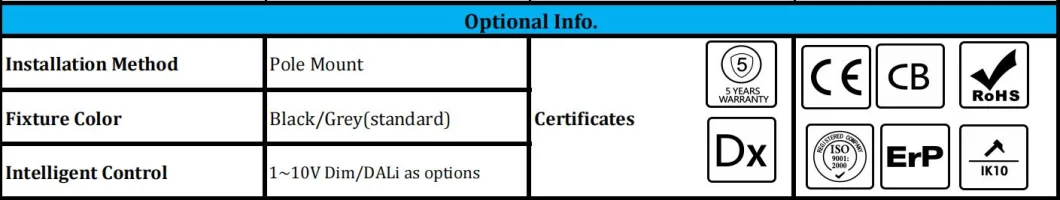

Intelligent Control :
1~10V Dim/Dali as Options
Description

Product Description

50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W


Factory Price 50W 120W 150W 200W 250W 20KV SPD 0-10V Dim Die-Casting Aluminum Waterproof IP65 175lm/W LED Flood Street Light

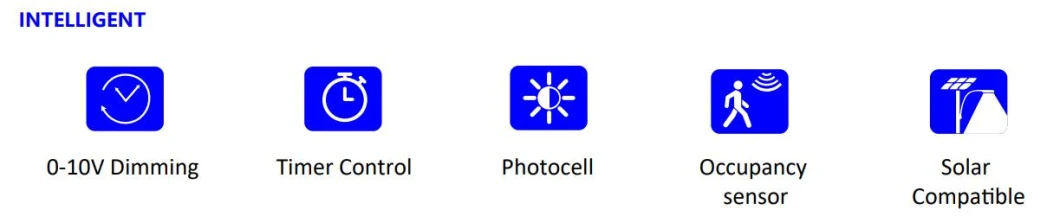

ENERGY SAVING CONTROL OPTION- DIM - 0-10 volt dimming enabled with controls by others.

EXPECTED LIFE - Minimum 100,000 hours depending upon the ambient temperature of the installation location.

LEDS - Select high-brightness LEDs in Warm White, Neutral White or Cool White color temperature, 80 CRI.

DISTRIBUTION/PERFORMANCE- High performance, multifaceted, reflector provides uniform Forward Throw (FT) distribution with sharp backlight cutoff. Photometric data is tested in accordance with IESNA guidelines

HOUSING - One-piece, die-formed aluminum housing contains factory prewired driver in a gasketed, weather-resistant wiring compartment.
Hinged wiring access door (with safety lanyard) located underneath. Fixture is IP65 rated.

OPTICAL UNIT - Precision engineered lenses made of optical grade Mitsubishi polycarbonate for maximum light intensity. Come standard with field-rotatable optics

OPERATNG TEMPERATURE - -30° C to +55°ºC (-40°F to +122°F)

WARRANTY - 5 years warranty

SHIPPING WEIGHT - 465x320x120MM,3.1Kg/CTN (in carton)

Product Description

Features
Lighting Data Electrical Data
LED Type Sanan/Phili-ps LUMI-LEDS Power Supply IEC Certified PSU
System Efficacy 170lm/W±5%(CCT=5000K) Input Voltage 100~240V ac
System Power Consumption 120W Power Frequency 50~60Hz
CCT 2700K,3000K,4000K,5000K SPD 4KV/10KV/20KV as options
Beam Angle Type I,Type II,Type III,Type V Class Rate Class I
CRI Ra70/Ra80/Ra90+ Power Efficiency >90%
Lens PC Power Factor >0.90
SDCM <5 Total Harmonic Distortion <20%
Material Data Packing Data
Fixture Material Alu.+PC Junction Temperature(Tj) <70ºC(Ta=30ºC)
Powder Coating AkzoNobel Storage Temperature -40~+70ºC
Cable 3x1.00mm Operating Temperature -30~+50ºC
Ingress Protection IP65 Outlook Size(MM) 451x300x90 MM
Life Span 10 years at 12 hours/day Export Carton Size 465x320x120MM,3.1Kg/CTN
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
Photometry

LIGHT DISTRIBUTION CURVE

50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W

50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W

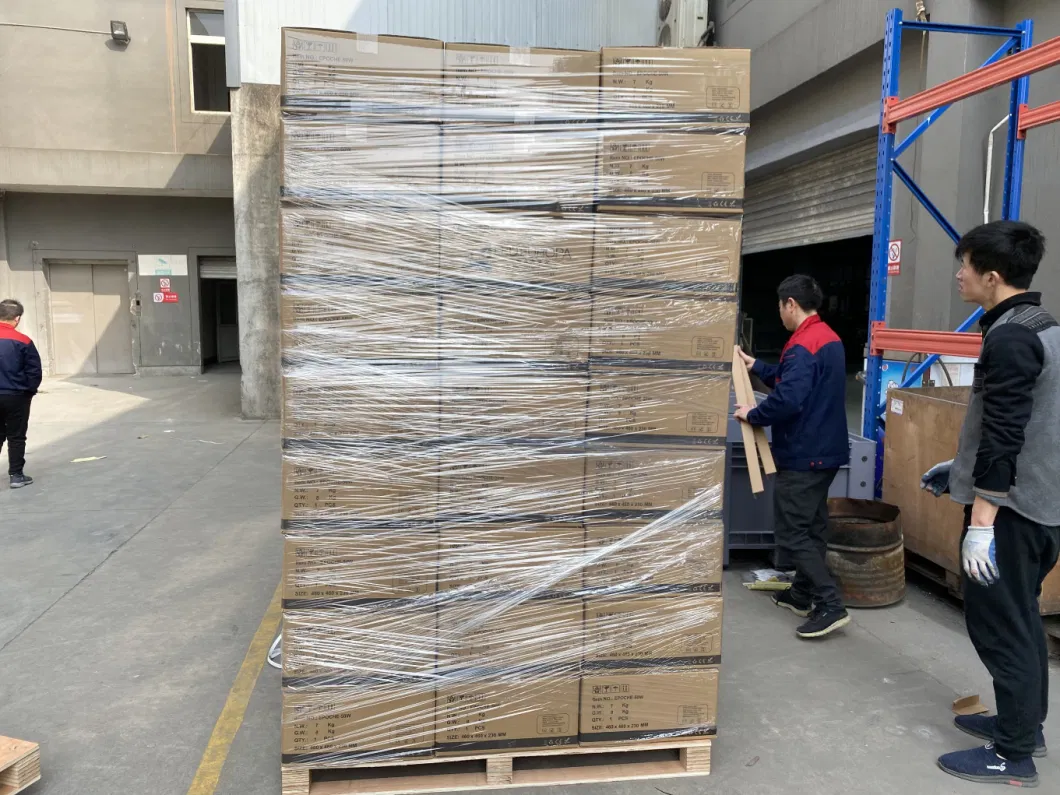

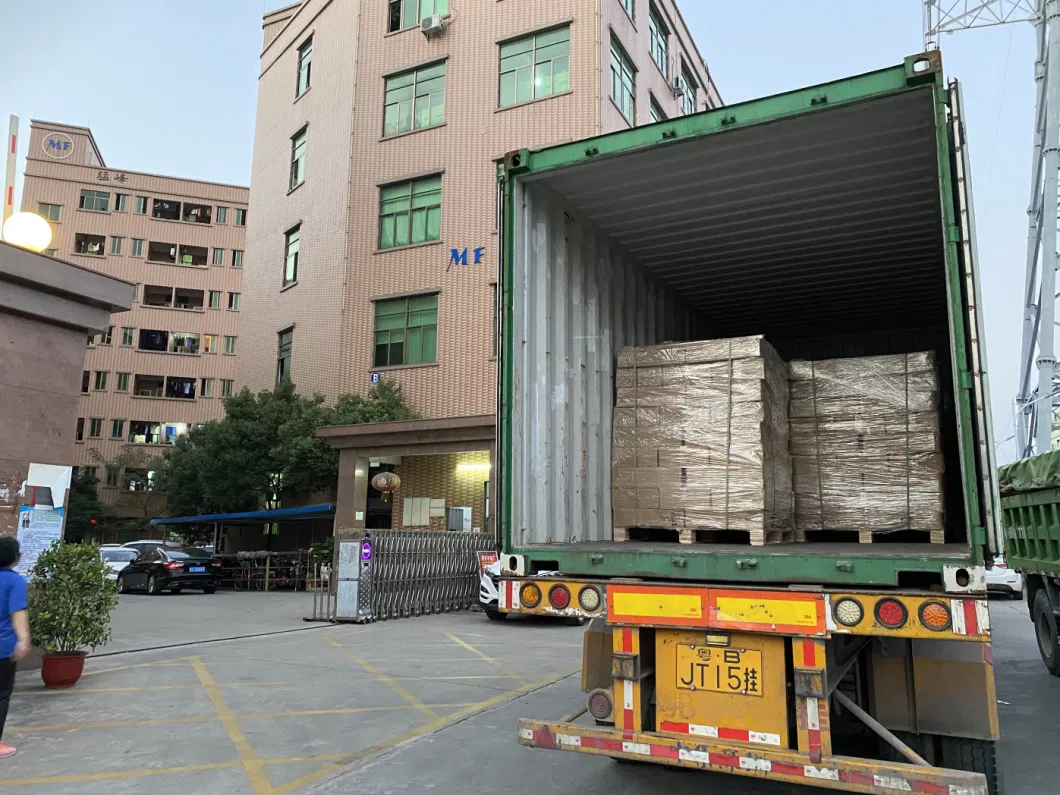

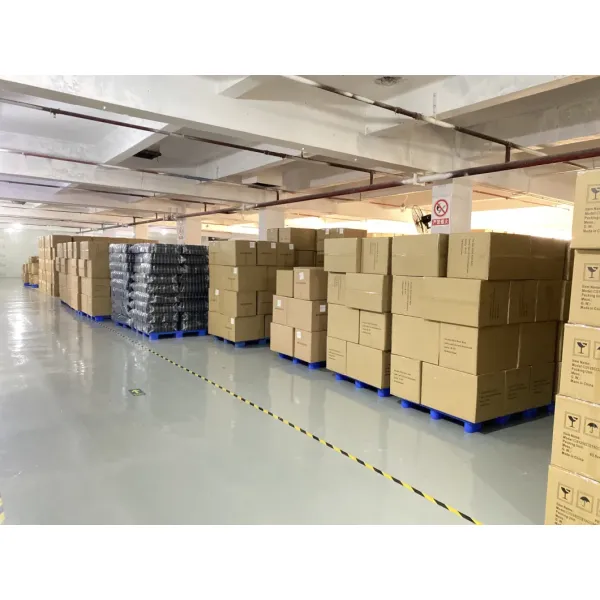

Packaging & Shipping

50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W

50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W

Application

50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
50W 120W 150W 200W 250W LED Flood Street Light 20kv SPD 0-10V Dim Die Casting Aluminum Waterproof IP65 175lm/W
Street lights are commonly used to illuminate roads, streets, highways, parks, squares, parking lots and other public places. They can provide nighttime lighting, improve visibility for pedestrians and vehicles, reduce the risk of traffic accidents, and increase public safety. In addition, street lights can also be used for:

Enhance the urban landscape: The use of street lights in cities and communities can improve the beauty of the urban landscape and night environment, and promote urban tourism and economic development.

Wildlife protection: The use of street lights in protected areas and nature reserves can improve the safety of visitors at night and reduce disturbance to wildlife.

Increase the sense of security of residents: The use of street lights in the community can increase the sense of security of residents, improve the environmental quality of the community, and reduce the crime rate.

In conclusion, street lights can be used in many different venues and applications to increase public safety and visibility, improve urban environments and landscapes, and protect wildlife and the natural environment.
