Specifications
Brand Name :
MF
Model Number :
MF Stadium Light Horse-6
Certification :
CE, RoHS,SAA
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
5,000pcs/Month
Delivery Time :
Depends on orders
Packaging Details :
16.5*15*22cm/1pcs, G.W: 1.2Kg
CCT :
3000K,4000K,5000K,6000K, CCT etc
material :
PC, Aluminum Alloy, Tempered Glass
Power :
200W/300W/400W/600W/800W/1000W/1200W
IP Rate :
IP66
Driver :
Sosen/MeanWell/Inventronics
Luminous Efficacy :
140lm/W~155lm/W
CRI(Ra) :
70+/80+/90+
Beam Angle :
15°/25°/40°/60°/90°/P45°
Ik Rate :
Ik10
Installation :
Bracket Installation/Wall Installation/Pole Instal
Surge Voltage :
10kv
Life Span :
>50, 000hrs
Operation Temperature :
Ta=40
LED Brand :
LuMileds 5050/3030
Description

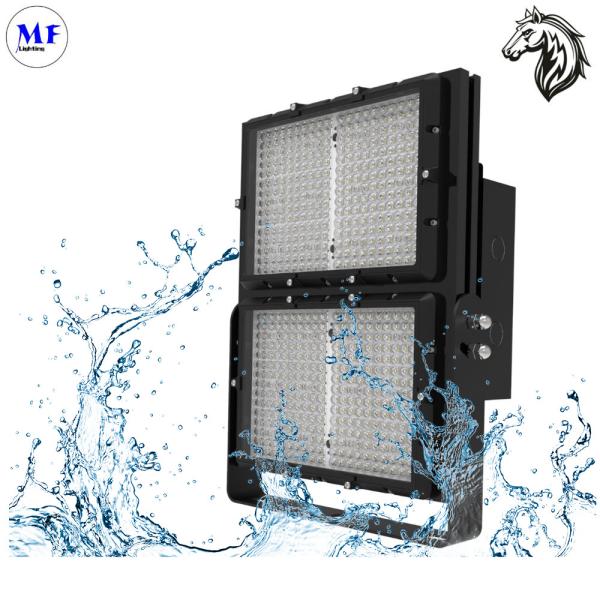

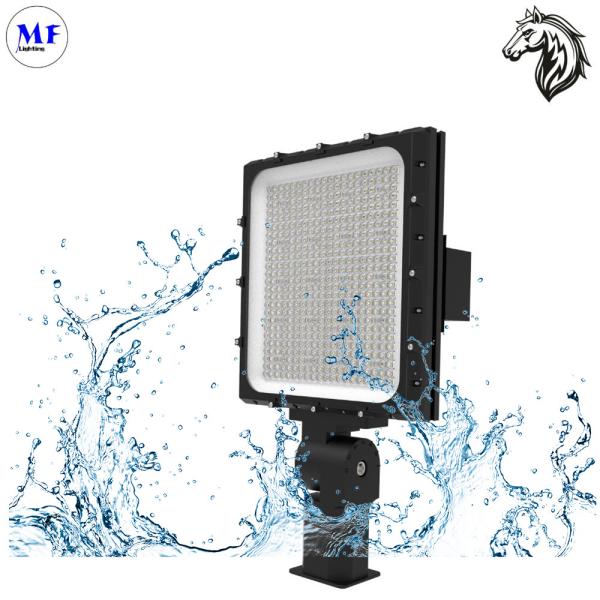

IP67 5 years warranty Vertical module design Outdoor Waterproof 200W LED Flood Light for Arena Tennis Basebal Field Court Golf Course

Product Description

1.Vertical module design better heat dissipation performancemore durable and longer lifespan

2.Built-in driver IP67 waterproof plus shellprotection,double protection.much safer

3.Special optical design mask Japanese emperor Optical PC. lighttransmittance> 95%no vellowing,with anti-ultraviolet and other functions

4. 3 way to install
LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field CourtLED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field CourtLED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field CourtLED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court

LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field CourtLED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field CourtLED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court
ltems MF-S06A
200BT
MF-S06A
300BT
MF-S06A
400BT
MF-S06A
600BT
MF-S06A
800BT
MF-S06A
1200BT
Wattage 200w 300w 400w 600w 800w 1200W
Lumen Output 28000LM 42000LM 56000LM 84000LM 112000LM 168000LM
LED Brand Lu-mileds5050/3030
LED Driver SOSEN/MEAN-WELL/INVENTRONICS
Luminous Efficacy 145LMW~155LMW
Beam Angle TYPE I,TYPE I,25°,60,90 °,80*150
Color Temperature 3000K,4000K,5000K,6000K,CCT etc
lnput Voltage 100-277
CRI 70/80
Life Hours 50000H
Surge Voltage 10KV
peration Temperature Ta=40
IP Rating IP65
Warranty 5years
LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court

Characteristic

Free Dialux Lighting Design

Our experienced lighting designers can provide you professional DIAlux simulations and constructive LED lighting solutions. We know lighting standards of all applications well and we care about all of your projects. Not matter your case is big or small, we will always provide you solutions.

1.Free OEM/ODM
2.Free DIALux testing service.
3.8 years of engineering experience, for your project escort.
4.Complete certificate, CE, RoHS, ETL, FCC etc.
5.Provide a complete test report.
6.First sample test, provide complete test report and product picture before delivery
7.5 years warranty, free replacement.
LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court

Dimension

LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court

Photometry

LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court

Application

Ideal for football pitches, sports fields, airport hangers, Wharfs, Tower Cranes, Golf Course, stadium etc.
LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field CourtLED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court

Accessory

0-10V, DMX and DALI dimming modes optional

LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court

Packaging & Shipping

ltem# MF-S03B
200BT
MF-S03B
300BT
MF-SO3B
400BT
MF-S03B
600BB
MF-S03B
800BB
MF-S03B
1000BB
Watts 200w 300w 400w 600w 800w 1000w
Qty 1
N.w. 7.1kg
15.6lb
10.14kg
22.3lb
12.82kg
28.2lb
19.7kg
43.4lb
25.8kg
56.8lb
33.38kg
73.6lb
G.w. 8kg
17.6lb
11.24kg
24.8lb
14.06kg
31lb
21.2kg
46.7lb
27.9kg
61.5b
35.88kg
79.1lb
Carton
Size
360*475*160
mm
14.1*18.7*6.3
inch
470*475*160
mm
18.5*18.7*6.3
inch
580*475*160
mm
22.8*18.7*6.3
inch
690*475*160
mm
27.1*18.7*6.3
inch
620*795*160
mm
24.4*31.3*6.3
inch
730*795*160
mm
28.7*31.3*6.3
inch
LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court
LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court
LED Flood Light IP67 5 Years Warranty Vertical Module Design Outdoor Waterproof For Arena Tennis Basebal Field Court

FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED High Mast Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED High Mast Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED High Mast Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED High Mast Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
