Specifications
Brand Name :
MF
Model Number :
MF Stadium Light Horse-11
Certification :
CE, RoHS,SAA
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
5,000pcs/Month
Delivery Time :
Depends on orders
Packaging Details :
16.5*15*22cm/1pcs, G.W: 1.2Kg
CCT :
3000K,4000K,5000K,6000K, CCT etc
material :
PC, Aluminum Alloy, Tempered Glass
Power :
500W/750W/1000W/1200W
IP Rate :
IP66
Driver :
Sosen/MeanWell/Inventronics
Luminous Efficacy :
150LM/W-155LM/W
CRI(Ra) :
70+/80+
Beam Angle :
NEMA2/NEMA3/Mema4/NEMA5/Mena6
Ik Rate :
Ik10
Installation :
Bracket Installation/Wall Installation/Pole Instal
Surge Voltage :
10kv
Life Span :
>50, 000hrs
Operation Temperature :
Ta=40
Description

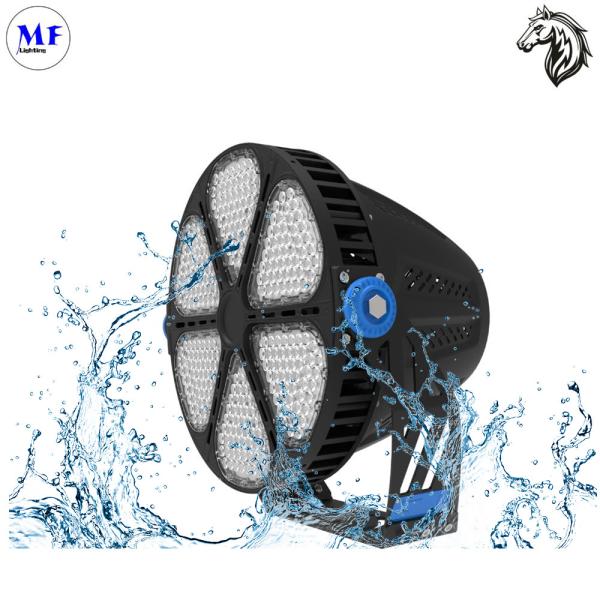

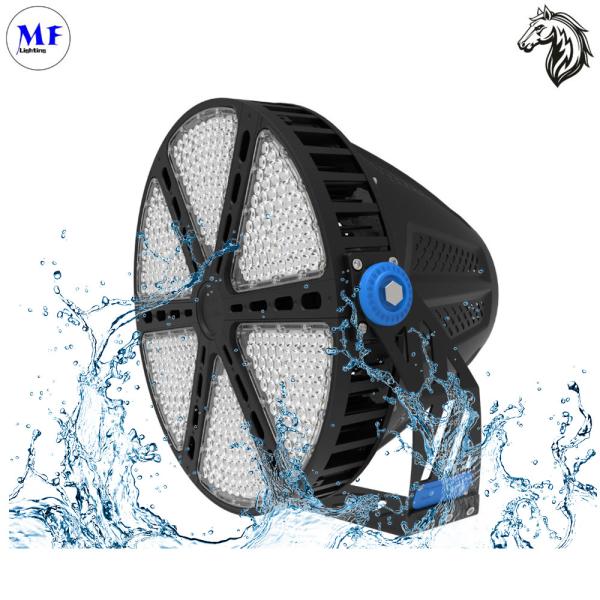

LED Flood Light High mast lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square

• High conductive thermal management aluminum cold forging.

• Anodize oxidation process, anti-corrosion.

• Professional light distribution design, various LENs beam, multiple choice, can be used for the different application.

• Low EPA, withstand high level wind.

• Waterproof IP66, Suit for wet locations.

• Constant current LED Driver, more stable

Items
MF-S11A
500BT
MF-S11A
750BT
MF-S11A
1000BT
MF-S11A
1200BT
Wattage
500W
750W
1000W
1200W
Lumen Output
75000LM
112500LM
150000LM
180000LM
LED Brand
Lumi-leds
LED Driver
SOSEN/MEANWELL/INVENTRONICS
Luminous Efficacy
155LM/W ~ 155LM/W
Beam Angle
NEMA2,NEMA3,MEMA4,NEMA5,MENA6
Color Temperature
3000K,4000K,5000K,6000K, CCT etc
Input Voltage
100-277V
CRI
70/80/90
Life Hours
50000H
Surge Voltage
10KV
Operation Temperature
Ta=40
IP Rating
IP65
Warranty
5years


LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square

LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square



LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor SquareLED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square

Characteristic

Free Dialux Lighting Design

Our experienced lighting designers can provide you professional DIAlux simulations and constructive LED lighting solutions. We know lighting standards of all applications well and we care about all of your projects. Not matter your case is big or small, we will always provide you solutions.

1.Free OEM/ODM
2.Free DIALux testing service.
3.8 years of engineering experience, for your project escort.
4.Complete certificate, CE, RoHS, ETL, FCC etc.
5.Provide a complete test report.
6.First sample test, provide complete test report and product picture before delivery
7.5 years warranty, free replacement.
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square

Dimension

LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square

Photometry

LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square

Application

Ideal for football pitches, sports fields, airport hangers, Wharfs, Tower Cranes, Golf Course, stadium etc.
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor SquareLED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor SquareLED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor SquareLED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square

High mast lights are tall lighting structures typically used in large outdoor areas that require extensive illumination. They are commonly found in various applications, including:

Sports Stadiums: High mast lights are installed in stadiums and sports arenas to provide sufficient lighting for sporting events, allowing players and spectators to have optimal visibility.

Airports: High mast lights are crucial in airport settings to ensure proper lighting for runways, taxiways, and aircraft parking areas, enhancing safety during takeoff, landing, and ground operations.

Ports and Harbors: High mast lights are used in port areas to illuminate docking areas, container yards, and shipping terminals, facilitating efficient loading and unloading operations.

Industrial Facilities: High mast lights are installed in industrial areas such as manufacturing plants, warehouses, and construction sites, providing bright and uniform illumination for improved productivity, safety, and security.

Highways and Interchanges: High mast lights are strategically positioned along highways, interchanges, and major roadways to ensure clear visibility and enhance safety for drivers during nighttime travel.

Public Spaces: High mast lights are utilized in public spaces such as parks, plazas, and parking lots, illuminating large areas and enhancing security for pedestrians and vehicles.

Military Bases: High mast lights play a vital role in military installations, providing enhanced visibility for training exercises, aircraft operations, and general security purposes.

Railway Yards: High mast lights are deployed in railway yards to illuminate tracks, platforms, and maintenance areas, enabling efficient train operations and ensuring the safety of personnel.

These are just a few examples of the applications where high mast lights are commonly used. The specific requirements and configurations of high mast lighting systems can vary depending on the intended purpose and location.

Accessory

0-10V, DMX and DALI dimming modes optional
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square

Packaging & Shipping

LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor SquareLED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square

LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square
LED Flood Light High Mast Lights CE, RoHS, ETL, FCC IP65 Ik10 Waterproof 155lm/W 1000W Dimmable Outdoor Square
