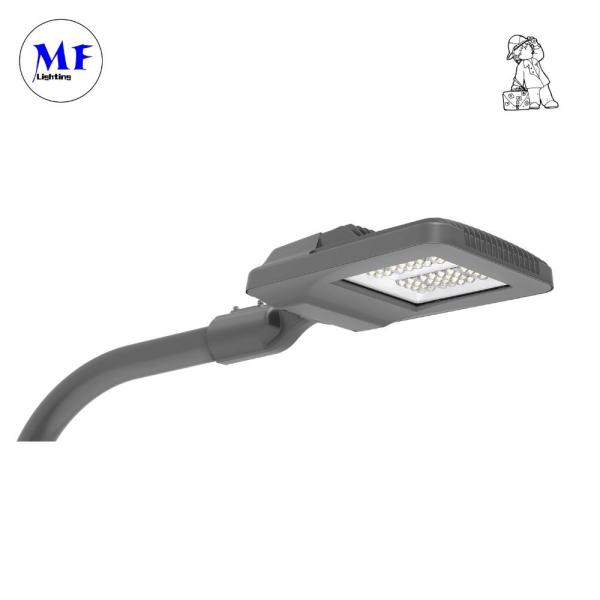

30W-200W IK08 IP66 Outdoor Auto LED Street Light With Sensor Photocell For Bike Lane Walkway Bus Stop Station
1.System efficiency up to 130lm/Watt.Professional light distribution design
2.IP66 rated and IK08.
3.0-10V,1-10V Dimmable available
4.Photocell available
5.Compact Design, with self-cleaning function.
6.Tool-less Entry, Easy installation and maintenance.
7.Class Il Optional.
8.5 years warranty.
LED calculated life
131,000 hrsLifetime(L70B50)
82,000 hrsLifetime(L80B50)
40,000 hrsLifetime(L90B50)
Model No. | MF-S19A50S | MF-S19A50H | MF-S19A50H-T3M |
Light Source | Cree 3030 | Cree 5050 | Cree 5050 |
Input Voltage | 100-277VAC 50/60Hz | 100-277VAC 50/60Hz | 100-277VAC 50/60Hz |
LED Power (W) | 43-47 | 42-47 | 42-47 |
System Power(W) | 49-54 | 48-54 | 48-54 |
Luminous flux (lm) | 5,100-5,800 | 5,600-6,300 | 5.600-6,300 |
Power Factor | >0.95 | >0.95 | >0.95 |
Light Distribution | Type ll Short | Type ll short | Type lll Medium |
ccT(K) | 3000/4000/5000/5700 | 30004000150005700 | 3000/4000/5000/5700 |
cRI | >70 | >70 | >70 |
THD(230VAC) | <20% | <20% | <20% |
surge Protection | CM: 10KV,DM:6KV(Son-sen) CM:6KV.DM:4KV(Mean-well) | CM: 10KV,DM:6KV(Son-sen) CM:6KV.DM:4KV(Mean-well) | CM: 10KV,DM:6KV(Son-sen) CM:6KV.DM:4KV(Mean-well) |
Power Cable | 1.5m HO5RN-F3×1.0 | 1.5m HO5RN-F 3×1.0 | 1.5m HO5RN-F3x1.0 |
Driver Output Voltage (vDc) | 36-48 | 36-48 | 36-48 |
Driver Ourtput Gurrent (mA) | 950 | 950 | 950 |
Working Temperature rc) | -20 to +50 | -20to +50 | -20to+50 |
Working Humidity(RH%) | 10-90 | 10-90 | 10-90 |
Light Distribution:
Installation:
CLASS OF Highway:
Model | M5 | M4 | ||
Height of pole(H) | Distance between poles (L) | Height of pole (H) | Distance between poles (L) | |
S19A25H-T3M | 4.5m | 10m | 5m | 6m |
S19A50H-T3M | 6.5m | 17m | 6.5m | 11m |
S19A75H-T3M | 8m | 21m | 8m | 15m |
S19A10OH-T3M | 10m | 26m | 8.5m | 19 m |
S19A25H | 6 m | 7m | 6m | 5m |
S19A50H | 8m | 14 m | 7m | 9m |
S19A75H | 10 m | 17 m | 9m | 12m |
S19A100H | 12m | 21m | 11m | 14m |
S19A25S | / | / | 5m | 5 m |
S19A50S | / | / | 7m | 8 m |
CLASS OF Sidewalk:
Model | P1 | P2 | ||
Helght of pole (H) | Distance between poles (L) | Height of pole (H) | Distance between poles (L) | |
S19A25H-T3M | 4 m | 13m | 4.5m | 17m |
S19A50H-T3M | 6.5m | 25m | 8.5m | 31m |
S19A75H-T3M | 7.5m | 27 m | 10m | 33 m |
S19A100H-T3M | 9.5 m | 36m | 11.5m | 44m |
S19A25H | 4.5m | 11m | 4.5m | 17m |
S19A50H | 5m | 23 m | 6 m | 33 m |
S19A75H | 6 m | 32 m | 8m | 42m |
S19A10OH | 7.5m | 40m | 9.5m | 50m |
S19A25S | 4.5 m | 13 m | 4.5m | 18m |
S19A50S | 5.5m | 22m | 7m | 27m |
LED Street Light Applications:
1.Roadway lighting: LED street lights are widely used for illuminating roads and streets in urban and rural areas, providing enhanced visibility and safety for motorists and pedestrians.
2.Parking lot lighting: LED lights are commonly installed in parking lots to ensure well-lit and secure environments, improving visibility for drivers and pedestrians.
Pathway and sidewalk lighting: LED street lights are utilized to illuminate pathways, sidewalks, and park trails, creating safer walking and cycling routes, especially during nighttime.
3.Highway lighting: LED street lights are employed along highways and expressways, offering clear visibility for drivers, reducing accidents, and improving overall road safety.
4.Residential street lighting: LED lights are commonly used for lighting residential streets, enhancing the safety and security of neighborhoods.
5.Public space lighting: LED street lights are installed in public spaces such as parks, plazas, and public buildings, providing adequate lighting for outdoor activities and gatherings.
6.Industrial area lighting: LED lights are utilized in industrial areas and warehouses, ensuring proper illumination for increased productivity and worker safety.
7.Campus and institutional lighting: LED street lights are used in educational campuses, hospitals, and other institutional settings to provide efficient and reliable lighting solutions.
8.Smart city integration: LED street lights can be integrated into smart city systems, allowing for remote monitoring, energy management, and adaptive lighting control.
Overall, LED street lights find applications in various settings, including roadways, parking lots, pathways, highways, residential areas, public spaces, industrial areas, and smart city infrastructures, contributing to improved visibility, energy efficiency, and safety.
Accessory and Production:
Model No. | MF-S19A25S/HH-T3M | MF-S19A50S/HH-T3M | MF-S19A75SHH-T3M | MF-S19A100S/HH-T3M |
lnner Box(mm) | 380*380*130 | 380*380*130 | 495*470*150 | 495*470*150 |
outer Carton(cm) | 40*40*57(4pcs/CTN) | 40*40*57(4pcs/CTN) | 51.5*49"33.5(2pcsICTN) | 51.5-49*33.5(2pcs/CTN) |
Net Weight(kg) | 2.7 | 2.7 | 4.6 | 4.6 |
