Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable
Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable
Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable
Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable
Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable
Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable
Specifications
Brand Name :
MF
Model Number :
MF-SP08CW-SMD
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
50PCS
Price :
Factory price
Payment Terms :
T/T, Western Union, Paypal, L/C
Supply Ability :
5000pcs/Month
Delivery Time :
1 week for sample order, 2 weeks for mass order
Packaging Details :
54*29*15.5cm/50pcs, G.W: 8.0KG,N.W:7.5
Power :
8W
Input voltage :
DC24V
Dimensions :
D75*H115mm
Beam angle :
30°
CRI :
>80Ra
Material :
Die-Cast Aluminum
Tunable white :
3 options adjustable
Dimmable :
Yes
Housing color :
White/Black
Warranty :
2 years
Description

DC12V/24V Tunable white Smart Surface Mounted Downlight, 2700K-6500K CCT adjustable

Introduction:

DC24V Surface mounted Downlight adopts brand SMD and high reflective (more than 88%) reflector which make sure the high luminous, the die-casting aluminum heat sink and multi-layer structure provide excellent thermal dissiption;

Internal driver solution with DC24V constant voltage input compatible with

KNX or Dali Dimmer
or PWM Loxone Dimmable
or DMX512 Controller
or 0-10/1-10V dimmable driver

or 2.4G RF Remote controller

Can be surface mounted, suspending mounted for hotel, home, office, shop etc. It is also widely used for public areas such as stairway, lobby, reception, corridors etc.

Installation Warning: 1. Switch off before installation. 2. Switch on only after complete installation andexamination of the circuit. 3. Professional electrician for installation and maintenance only.


Technical data:

Input voltage DC24V
Product Size ￠75*H115mm
Power(watt) 8W
Color temperature Tunable white(2700K-6500K, 2000K-6000K, 1800K-4500K 3 options adjustable)
LED Chip Epistar COB
Housing Colour White/Black
CRI(Ra) >80
Lifespan ≥50000hrs
Beam Angle 30°
Material Die-cast Aluminum
Operating Temperature -200C ~500C
Mounted type Surface/Suspending
IP IP20
Certificate CE/ RoHS
Warranty Period 2 years

Also can RGBW(2700K) Or RGBW(6000K) with 5 separate connecting cables.

compatible with :
KNX or Dali Dimmer
PWM Loxone Dimmable
or DMX512 Controller
or 2.4G RF Remote contorller

DATA SHEET DOWNLOAD: MF-SP08CW-SMD Surface mounted Led downlight Tunab...

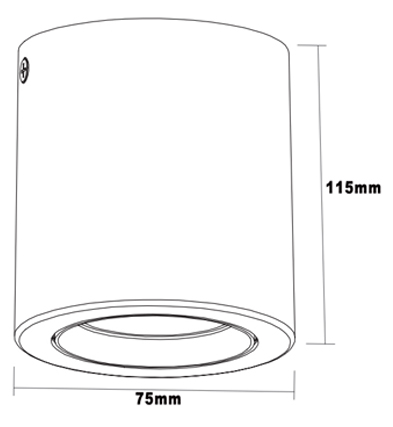

DC24V Surface mounted CCT adjustable donwlight​ dimensions:

Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable

DC24V Surface mounted CCT adjustable donwlight​ package:

Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable

Inner box L90*W90*H60mm
Carton box L540xW290xH155mm
Qty/ctn 50pcs
G.W 8.00kg/ctn

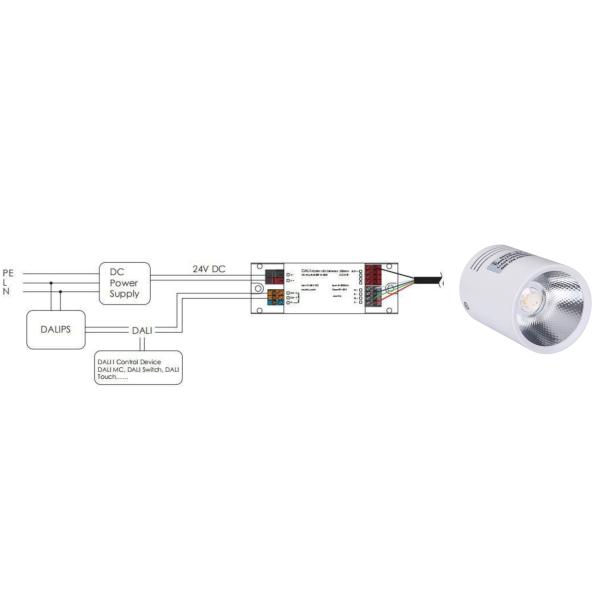

DC24V Surface mounted CCT adjustable donwlight​ Connection:

Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable

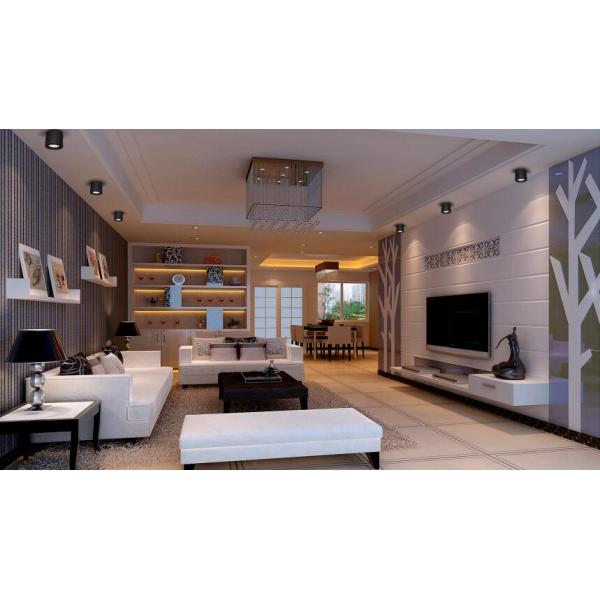

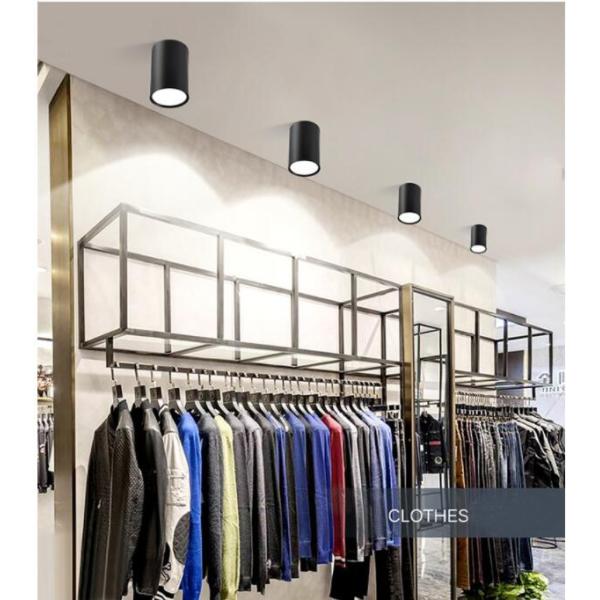

Application:

Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable

Tunable White Smart Surface Mounted Downlight DC12V DC24V 2700K-6500K CCT Adjustable
