Dimmable LED Down Light, Epistar, Cree, Lumnus COB Chips, IP44 Indoor Lighting

PRODUCT SPECIFICATIONS:

LAMP TYPE :Down light series
LIGHT SOURCE :Cree or Epistar COB LED
Power :7W/10W/12W/15W/20W/25W/30W/35W
BEAM ANGLE :45°±3° RENDERING INDEX (Ra) >80Ra or 90Ra
Color Temperature :2700/4000/5000K(Cree); 3000/4000/6000K(Epistar)
Efficiency :85-90lm/w for non-dimmable model; 80-85lm/w for dimmable model
OPTICS :Aluminum coating reflector
HEATSINK :Machined pure aluminum with anodize finish
BASE TYPE :External Driver
DIMMABILITY :Dimmable / Non-dimmable Model
TEMPERATURE RANGE :Ambient: -20°C to 40°C; Surface of Lamp: 60°C to 70°C
HUMIDITY RANGE :0 to 95% non-condensing humidity

Technical data download: MF DLT04 Series LED Down Light Specification.pdf

Specifications:

Features and Benefits:

* Light source: COB LED
* Long LED life: More than 50,000 hours
* Low heat, less than 60°C
* No UV or IR light radiation
* No mercury or other inorganic
* Homogeneous flood illumination
* Machined aluminum heat fins with excellent thermal efficiencies
* The LED down light is available in the following white color temperatures: 2700K/3000K/4000K/5000K/6000K
* 3 or 5 years limited warranty(3 years for Epistar LED chip model and 5 years for Cree LED chip version)
* Works with worldwide lighting systems 110VAC/220VA

Typical Applications:

Spot lighting Retail Store lighting Commercial lighting Residential lighting

General lighting Energy Saving Programs Sustainable Energy



Description :
*MF-DLT down ligt is a new design for 2020. MF-DLT uses high-quality and thicker precision die-casting aluminium material, good heat dissipation, strong and durable, will not fade.
* Integrated reflector, the Beam Angle is 45°.

*MF-DLT down light uses Lumnus/Cree/Epistar chips, CRI:>80Ra, CCT:2700K/3000K/4000K/5000K/6000K.

*We with portable spring buckle, rust-free, easy to install.
*Different power:7W/10W/12W/15W/20W/25W/30W/35W

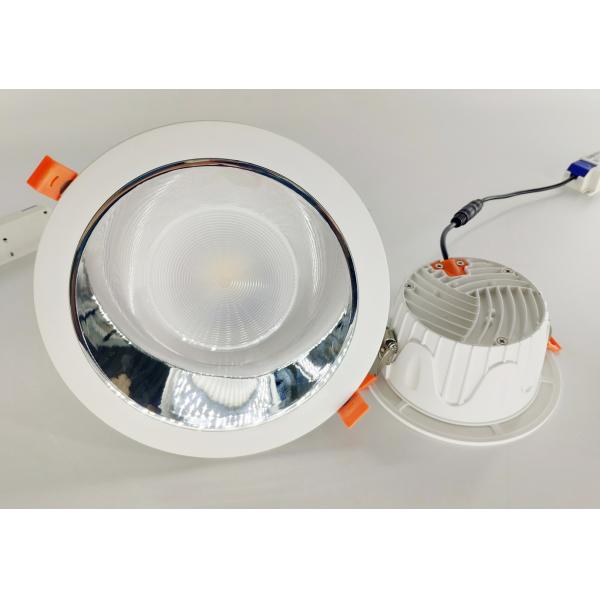

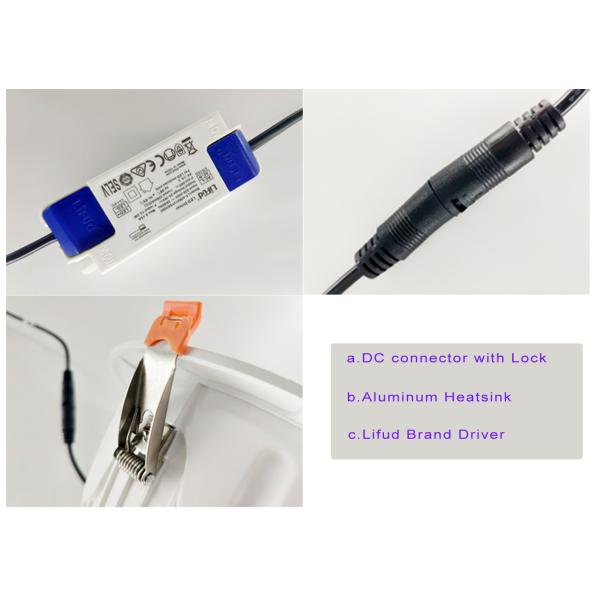

Product pictures:

Applications:

They are widely used in shopping mall, restaurant, hotel, guesthouse,home,corridor,office building,sitting room, study, bedroom,exhibition hall, museum, hosipital, jewelry store, brand chain, etc.
