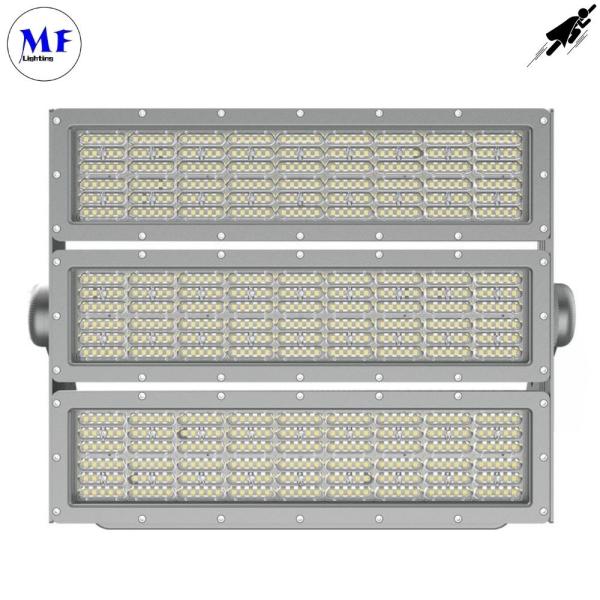

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
Specifications
Brand Name :
MF
Model Number :
MF-800WiSF
Certification :
CE, RoHS,SAA
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, Paypal
Supply Ability :
5,000pcs/Month
Delivery Time :
Depends on orders
Packaging Details :
16.5*15*22cm/1pcs, G.W: 1.2Kg
CCT :
2700K/3000K/4000K/5000K/5700K
material :
Aluminum Alloy
Power :
400W/600W/800W/1200W/1500W/1800W
IP Rate :
IP66
Driver :
Sosen/MeanWell
Luminous Efficacy :
140LM/W-145LM/W
CRI(Ra) :
70+/80+90+
Beam Angle :
15D/20*30d/30d/35*85D/Pg30d/Pg60d
Power Efficiency :
0.90
Ik Rate :
IK8
Material :
Die-Cast Aluminum
PF :
>0.95
Installation :
Bracket Installation/Wall Installation/Pole Instal
Life Span :
>50, 000hrs
Warranty :
5 Years
Description

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

Features Of ISF Series

The MF Series Stadium Floodlight represents a new generation of outstanding lighting solutions, boasting easy maintenance, easy installation, versatile light distribution options, and professional-grade features. Its expectional optical design ensures outstanding performance, making it the ideal choice for illuminating outdoor large venues and events, saving maintenance budget and operating costs.

· Up to 150lm/w, power range: 400w-1800w
· Modular design, a maximum of 3 modules available.
· UV stabilized polyester power paint finish for durability and corrosion resistance.
· Die-casting aluminum, excellent heat dissipation design, more conductive to prolong the lifespan.
· Excellent lighting system design, better performance.
· Eco-friendly, the lighting around the site is not plagued by light pollution.
· The illumination of the site is significationly improved, with better uniformity, and the overflow light is reduced to a minimum.
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
Note: Normal Voltage=100-277VAC, High Voltage=277-480V AC, please evaluate before choosing. For the power supply in the United States and Canada, in case the input voltage fluctuation >240v, the high voltage solution is highly recommended for performance stability. Improper selection will cause damage to the driver or the light.
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
Multiple mounting options turn installation & maintenance job into a easy way.
Installation options include integrated and split setups, with driver box maintenance requiring no tools. you can easily adjust the position, wither on the bracket or using a remote power box, ensuring straightforward and convenient maintenance.
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
Flexible & convenient installation:
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
The MF series features a customizable high -performance optical system designed for professional sports fields. It includes floodlighting optics for precise pitch illumination, offering flexibility and excellent light distribution. Speciazed LEDs ensure high TLCI for television broadcasts.

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
The MF series introduces an innovative lighting technique for sports fields, streamlining floodlight installation without requiring precise aiming. It's designed for sports facilities like tennis courts, making luminaire installation quick and easy.
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

Parameter Table:

Electrical Data
Model MF-400WiSF MF-600WiSF MF-800WiSF MF-1200WiSF MF-1500WiSF MF-1800WiSF
Power(W) 400W 600W 800W 1200W 1500W 1800W
Modules 1 1 2 2 3 3
Input Voltage 100-277V/277-480V, 50/60Hz
THD <20%
PF >0.90
Control Option 0-10V/PWM Timer diming (standard), DALI, DMX512 (optional)
Amblent Temperature -40°C to +50°C
Driver Brand Based on the actual project demand
Surge protection 20kv available
Photometric Data
Efficacy (lm/w, std, dev. ±5%)@CCT=4000K, CRI>70Ra 15D 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W
35*85D 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W
20*30D 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W
30D 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W
PG30D 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W
PG60D 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W 140LM/W
Luminous Flux (lm, std, dev. ±5%)@CCT=4000K, CRI>70Ra 15D 56000lm 84000lm 112000lm 168000lm 210000lm 252000lm
35*85D 60000lm 90000lm 120000lm 180000lm 225000lm 270000lm
20*30D 56000lm 84000lm 112000lm 168000lm 210000lm 252000lm
30D 60000lm 90000lm 120000lm 180000lm 225000lm 270000lm
PG30D 56000lm 84000lm 112000lm 168000lm 210000lm 252000lm
PG60D 56000lm 84000lm 112000lm 168000lm 210000lm 252000lm
Efficacy (lm/w, std, dev. ±5%)@CCT=4000K, CRI>70Ra, with visor 15D 125lm/w 125lm/w 125lm/w 125lm/w 125lm/w 125lm/w
35*85D 135lm/w 135lm/w 135lm/w 135lm/w 135lm/w 135lm/w
20*30D 125lm/w 125lm/w 125lm/w 125lm/w 125lm/w 125lm/w
30D 135lm/w 135lm/w 135lm/w 135lm/w 135lm/w 135lm/w
PG30D / / / / / /
PG60D / / / / / /
Luminous Flux (lm, std, dev. ±5%)@CCT=4000K, CRI>70Ra, with visor 15D 50000lm 75000lm 100000lm 150000lm 187500lm 225000lm
35*85D 54000lm 81000lm 108000lm 162000lm 202500lm 243000lm
20*30D 50000lm 75000lm 100000lm 150000lm 187500lm 225000lm
30D 54000lm 81000lm 108000lm 162000lm 202500lm 243000lm
PG30D / / / / / /
PG60D / / / / / /
ULOR =0%, @Luminaire inclination 0°
CCT 2700K,3000K,4000K,5000K,5700K
CRI Ra70,Ra80,Ra90
Beam Angle 15D/20*30D/30D/35*85D/PG30D/PG60D
800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

Dimension:

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

Application Fields:

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane

800W Class I LED Football Stadium Lighting Ra80 High Brightness Waterproof 140lm/W Ik08 IP66 for Tower Crane
