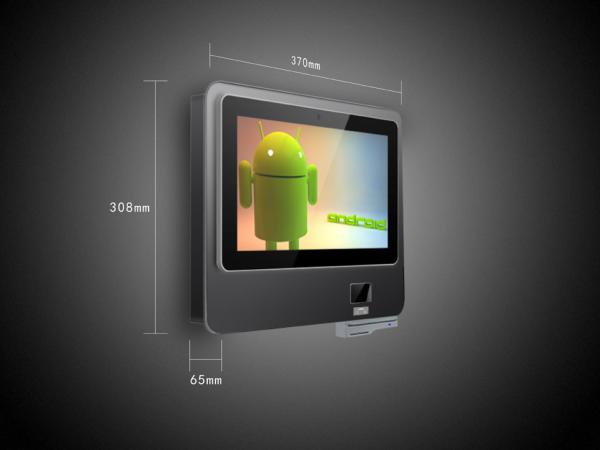

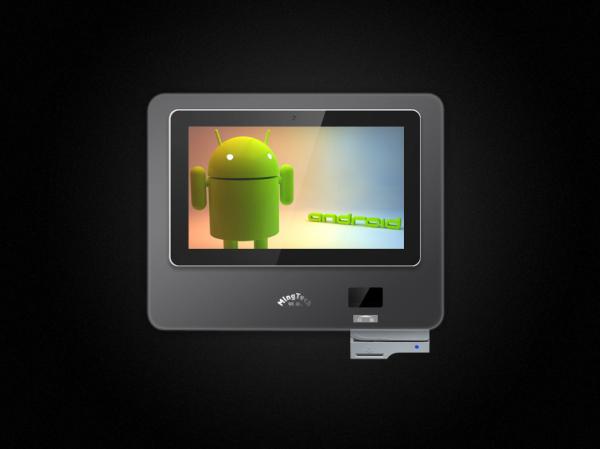

RK3288 Self Service Payment Terminal 10.4'' screen With Build In Printer
RK3288 Self Service Payment Terminal 10.4'' screen With Build In Printer
RK3288 Self Service Payment Terminal 10.4'' screen With Build In Printer
RK3288 Self Service Payment Terminal 10.4'' screen With Build In Printer
Specifications
Brand Name :
Ming tech
Model Number :
MT3
Certification :
Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS
Place of Origin :
China
Color :
Any Pantone standard.
CPU :
RK3288,dual-core processor,1.8GHz processor
Extral function add-on :
Yes
Power :
220V
Display :
10.4 inch capacitive touch screen AIO
MOQ :
2
Price :
negotiate
Delivery Time :
15 days<
Supply Ability :
1300 sets per days
Payment Terms :
T/T, PayPal, Western Union, D/P, CommBank.
Description

Modern minimalist style tape and pay with build-in printer terminal.

Specifications
Modular Parameter
Mother board RK3288 dual-core processor,1.8GHz processor,HDMI slot,VGA slot,EDP slot,4K display available ,single RJ45 serial port,WIFI bluetooth 1个,6 serial ports,6 USB interfaces,2G memory,8G HDD.
Monitor 10.4 inch capacitive touch screen AIO,display ratio 4:3,water proof, anti-explosion,dust-proof,luminance 250cd/m2,contract ratio 1000:1,resulotion:1280×1024,screen hardness 7H,touching respond time <10ms, multidirection touch available.
Card Reader contactless:Standard ISO14443 Type,S50/S70/CPU/MIFARE
finger print recognise function USB slot,the optical scanners model,image definition:700(DPI),service voltage:5.0V +/-.25V,running:<1000mA,acquisition time 0.01s,process time 0.01s,
Build-in Thermal printer Line thermal printer,print density 8 dots/mm,speed 150 mm/s(MAX),reciept wide 80mm,printing character: ASCII/GB18030/multinational character set,DC12V/2A,RS-232 communication interface,black label detection,paper out indicator(Neop),anti-paper jamming. Paper wide: 80mm. Scroll diameter:80mm.
Pinhole Camera Dual mode camera,3 mega-pixels with CMOS sensor,resolution :320*240,640*480,1280*720,1920*1080,2048*1536.25FPS,Output:MJPEG,YUV.
Face recognition algorithm and vivo detection function.

Applicable Field:


Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.


Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;


Non-profit Organizations: Telecommunications, post offices, hospital, schools;


Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;


Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;


Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
