EMID Contactless Reader Module , Rfid Reader Writer Module 125kHz
EMID Contactless Reader Module , Rfid Reader Writer Module 125kHz
Specifications
Brand Name :
Mingtech
Model Number :
MT3F-00-A3D8
Certification :
Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS
Place of Origin :
China
Power supply :
5V±5%
Reading distance :
0-30mm (Depending on label size and surroundings)
Frequency :
13.56 MHz±7kHz
Speed :
125kHz
SAM slots :
8
EEPROM :
200 bytes
MOQ :
5
Delivery Time :
<15 days
Supply Ability :
2500-3000 sets pers day
Payment Terms :
T/T, PayPal, Western Union, D/P, CommBank.
Packaging Details :
Antistatic package
Description

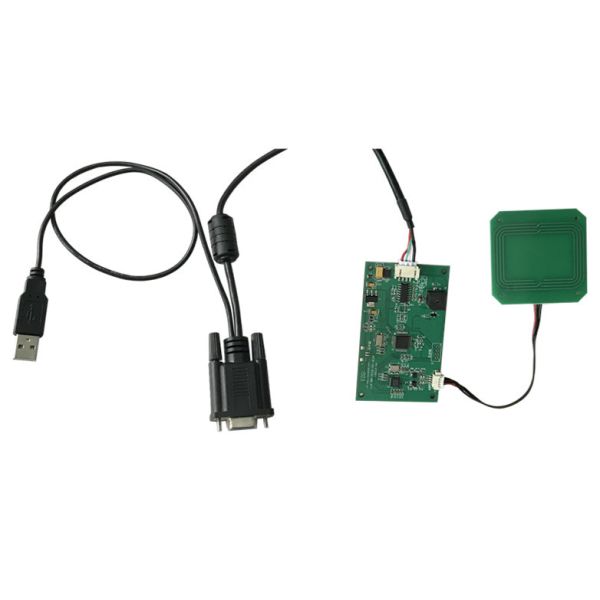

Card read modular with EMID element.

Product Features

Ø Smart card read/write and contact less IC ,EMID identify.

Ø NFC point to point connection

Ø Multifunction contact less card reader

Ø 8 SAM slots optional

Ø Support all Windows systems.

Ø Free drive, easily plug in and play.
Card Standard

  • EMID card: compatibility with EM,TEMIC,TK etc.
  • Contact less IC card
  • ISO14443 Type A&B,Mifare S50/S70
  • NFC card reader with point to point connection.

Specifications

Project Parameters Of Specifications

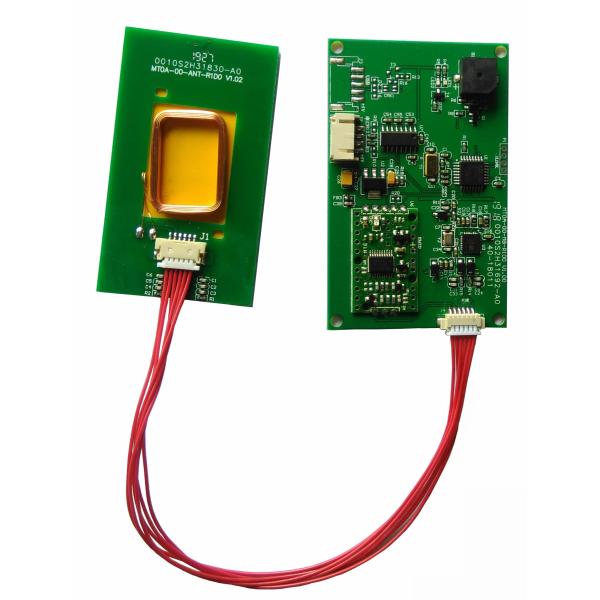

Dimensions

Main board :90mm×74mm.
Ant: 80mm×80mm
EMID Ant: 80mm×80mm
Power Interface
Power Source USB
Supply Voltage DC 5V±5%
Supply Current ≦300mA
Cable Length 1.8m,Fixed
Communication Interface
Input USB HID
Speed

USB Full Speed(12Mbps)
RS232 cable available(115200 bps).
EMID
card type Compatibility of EM,TEMIC,TK etc.
Speed 125kHz
Interaction 0-30mm( regard to actual distance).
Reading speed Less than 4 sec.
Service time Rolling ≥1,000,000 times ,MTBF 10,000 hours.
Contactless IC Card Interface
Standard ISO14443 Type A&B,Mifare S50/S70
Protocol ISO14443 /1/2/3/4 T=CL,MIFARE
Frequency 13.56MHz±7kHz
Speed 106Kbps
Detecting distance 0~30mm
Certifications Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1.
NPF application

NFC card reader with point to point connection.
SAM Card Interface
Number of Slots 8 Standard SAM-Sized Card tanks
Standard ISO7816 protocol PSAM Level B.
Others
EEPROM 200 bytes available.
Cable length Between MB and Ant : 20 cm.
LED 3 LED,Red color LED for power status,Green color LED for card status, ID card indicator.
Buzzer Monotone, frequency adjustment and duration.
Device Vision Support
Device SN Support
Supporting System Windows 2000/NT/XP/Vista/Windows 7/Linux/Android
Working conditions
Temperature 0℃ ~ 50℃
Humidity 10% ~ 90%
Technical Support
Driver No driver
API Windows 32&64bit SDK
Technical Service Supply SDK and Demo
Certifications Contact PBOC3.0 L1,Contactless PBOC3.0 L1,Contact EMV L1,Contactless EMV L1,CE,FCC,RHOS
