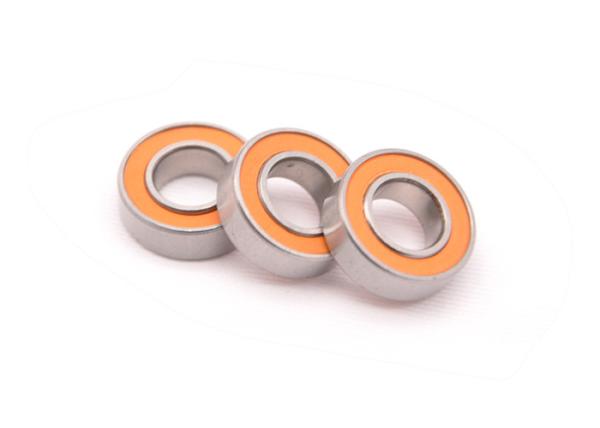

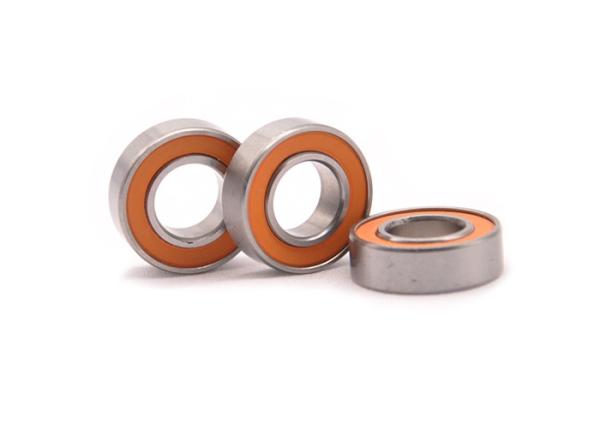

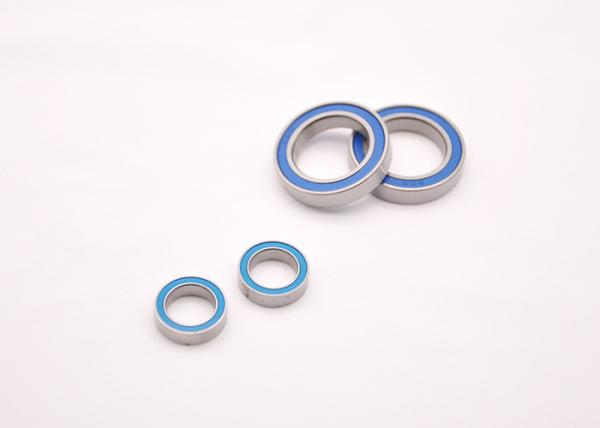

High precison miniature ball bearng with rubber shield

Specification

• A deep groove ball bearings is the must popular type of rolling-element bearing composed of an outer race ball, an inner race and a bearing cage.and the race dimensions are close to balls dimensions.
• The materials for producing ball bearing are variety including stainless steel,chrome steel and silicon nitride and more with a simpler construction comparing with other ball bearing, deep groove bearings are suitable for large quantity production
• The function of deep groove ball bearings is to reduce rotation friction.those balls between outer race and inner race help avoid two flat surfaces rotating on each other thus to achieve the purpose of lowering down friction coefficient
• Additionally, deep groove ball bearings are primarily used to support radial loads; supports both radial and axial loads is also possible
• Deep groove ball bearings can be used in wide range of applications.

1. Firstly, they can de used in industrial transmission mechanical products.
2. Miniature bearings are widely used in household appliances, toys, electric power tools, car motors and other fields. With optimal design, high reliability heat treatment, precision manufacturing processes and high-grade grease, these products perform better on reliability, vibration and noise levels than standard products making them more suitable for electric motor applications. These products can also be applied to most gearbox applications as well.
3. Thirdly, our bearing are ideal for electrical motor with good quality and excellent performance. Because of their high precision, high rotating speed, high reliability, low friction and low noise, they are widely used in areas of machine tools, measuring instruments, office machinery, household appliances, various types of electric motors, industrial automation control, etc.

Ⅰ. Material

Ⅱ. Accuracy

Ⅲ. Vibration and Noise

According to ralated standard, the vibration noise(dB) of "DAW" bearing for their vibration under acceleration

and divided into four groups:Z1,Z2,Z3,Z4.

Also the bearing can be divided into four groups in according to vibration speed" V1,V2,V3,V4.

Ⅳ. Clearance

Ⅴ. Retainer (Optional)

Ⅵ. Daiwa bearing series:

1.MR series bearings

2.67 series bearings

3.68 series bearings

4.69 series bearings

5.60 series bearings

6.62 series bearings

7.63 series bearings

Hot models as:

Based on reliable quality , Daiwa has got great achievement in the field of high rotating speed, and cooperated with several aeromodelling motor companies to develop good ball bearing with high speed,low noise,long life features. Advantages in the manufacturing process gradually formed and started to take a fixed market share. Shared a very big market in excess of 70% for miniature ball bearing domestically. Especially in aeromodelling market ,we are taking 80% market share .

Ⅶ .More info about Daiwa

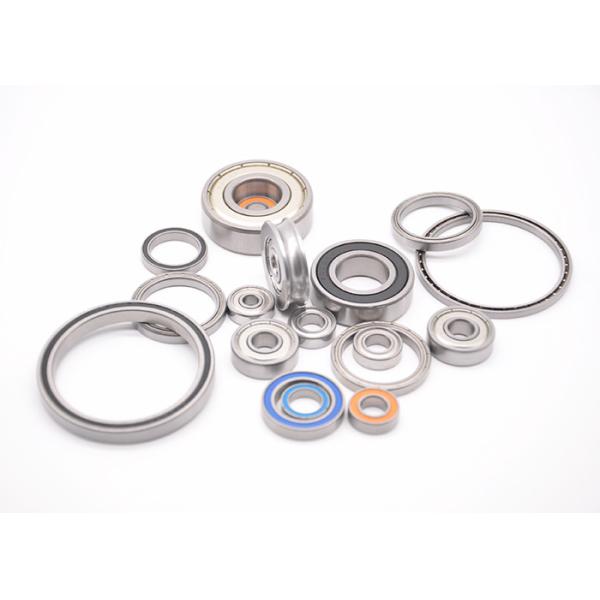

With over 18years of production experience and knowledge supplying of ball bearing . There is no doubt that we are professional in miniature ball bearing production and design. Our product range as deep groove ball bearing/thrust ball bearing/ thin wall ball bearing/non-standard ball /Customized bearings/bearing/Flange ball bearing. We are dedicated to produce and sell the miniature size bearings in the size of 1 - 15mm Inner diameter and Outer diameter within 30mm.We designed to assure the precise operation of the drive shaft or any rotating device with high precision and precision components mounted on the load-bearing part.
