ZZ 2RS OPEN Seals Mini Ball Bearing 1*3*1mm Long Service Life For Mobile Phone
ZZ 2RS OPEN Seals Mini Ball Bearing 1*3*1mm Long Service Life For Mobile Phone
ZZ 2RS OPEN Seals Mini Ball Bearing 1*3*1mm Long Service Life For Mobile Phone
ZZ 2RS OPEN Seals Mini Ball Bearing 1*3*1mm Long Service Life For Mobile Phone
Specifications
Brand Name :
DAW
Model Number :
681
Certification :
SGS, ROHS，RECH
Place of Origin :
Shanghai
MOQ :
200
Price :
0.15-0.36(negotiable）
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000
Delivery Time :
5-8 work days
Packaging Details :
Tube+box
Precision rating :
P0 P6 P5 P4 P2
Type :
Deep Groove Ball Bearing
Seals type :
ZZ 2RS OPEN
Material :
Chrome Steel,Stainless Steel
Lubrication :
Grease or oil
Cage :
Steel Cage
Feature :
Long Life,High Speed,low noise
Description

Mini Ball Bearing 1*3*1mm Long Service Life For Mobile Phone

Product Description

Deep groove ball bearing feature :

1. The most representative of the rolling bearings, widely used
2. Outer ring with a ring or flange bearing, that is easy to axial positioning, and easy to install the shell;
3. The maximum load bearing size is the same as the standard bearing, but the inner and outer rings have a trough, which increases the number of balls and improves the rated load.

The main purpose:
Deep groove ball bearings can be used for transmission, instrumentation, motors, household appliances, internal combustion engines, transport vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo

ZZ 2RS OPEN Seals Mini Ball Bearing 1*3*1mm Long Service Life For Mobile Phone

ZZ 2RS OPEN Seals Mini Ball Bearing 1*3*1mm Long Service Life For Mobile Phone

Our Service

1. We are a manufacturer of producing bearing for more than ten years of experience in product.

2. The Most advanced machinery and a strict quality control team.

3. On-time delivery service.

4. Accept non-standard production according to customers’ requirement.

5. High level of performance, quality, of all equipment and service.

6. Promptness in technical support pre- and after sales.

7. Do OEM for our customers.

Shipping and Packing

Shipping instuctions of all bearing series.

  • By courier like EMS, DHL, UPS, TNT, Fedex
  • By air to air port
  • By sea to sea port
  • Select the best shipment mode after customers' confirmation through negotiations between us
  • Generally it is 3-15days if the goods are in stock. Or it is 10-45days if the goods are not in stock, it is subject to customers' quantity.

Packaging Details: plastic bags or tube,paper box,and cartons. or according to the customer's requirements

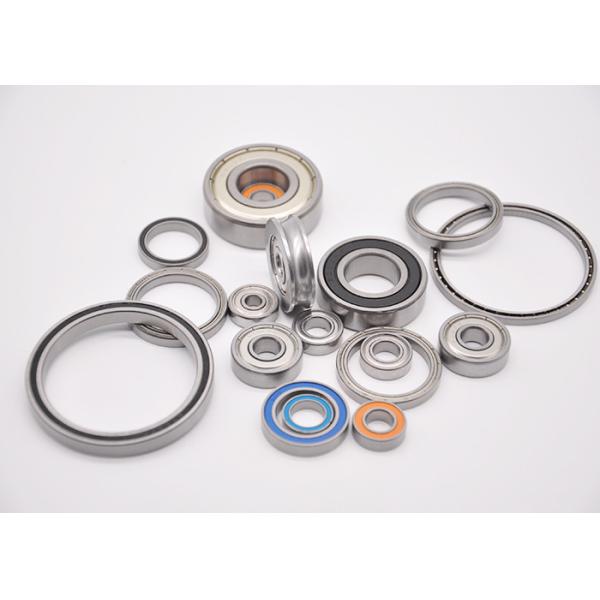

Product Show

Type Size(mm) Load Rating Cr(N) Load Rating Cor(N) Max.Speed*1000rpm
Bore Diameter Outer Diameter Open ZZ Grease Oil
681Xzz 1.5 4 1.2 2 112 33 100 120
MR52ZZ 2 5 2 2.5 169 50 85 100
692ZZ 2 6 2.3 3 330 99 75 90
MR62ZZ 2 6 2.5 2.5 330 99 75 90
MR63ZZ 3 6 2 2.5 209 74 71 80
683ZZ 3 7 2 3 311 112 63 75
MR83ZZ 3 8 2.5 3 395 141 60 67
693ZZ 3 8 3 4 558 180 60 67
