Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ
Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ
Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ
Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ
Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ
Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ
Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ
Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ
Specifications
Brand Name :
DAW
Model Number :
693ZZ
Certification :
SGS
Place of Origin :
China
MOQ :
100PCS
Price :
USD0.15~0.2
Payment Terms :
T/T
Supply Ability :
5000000PCS Per month
Delivery Time :
3-25days
Packaging Details :
Plastic tube+carton box+pallet
Material :
SAE 52100
Retainer :
Pressed steel ribbon retainer
Dimension :
3*8*4mm
Lubricant :
Grease
shield :
metal shield
Structure :
Deep Groove
Package :
Plastic tube+carton box+pallet
Country of Origin :
China
Main Applications :
Small motors (cooling fan motor, etc.)
Noise level :
under 25db
Vibration :
V3Z3
Internal Clearance :
C3
Tolerance :
P0 P6 P5
Description

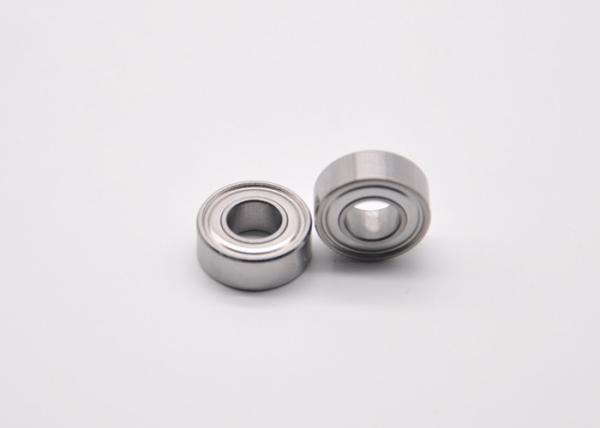

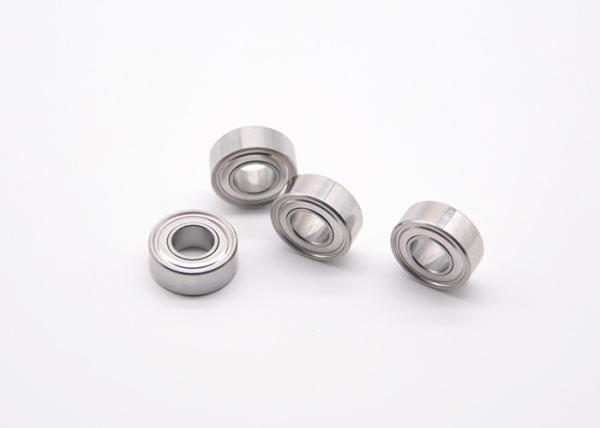

1. 693ZZ Miniature ball bearing mainly used in fans and motors

Fans and motors ball bearing
Inner and Outer Rings SAE 52100
Balls SAE 52100
Retainer SPCC
Shield SECC
Precision Grade JISO
Internal Clearance C3 5~10um
Lubricant Grease
Noise level MT

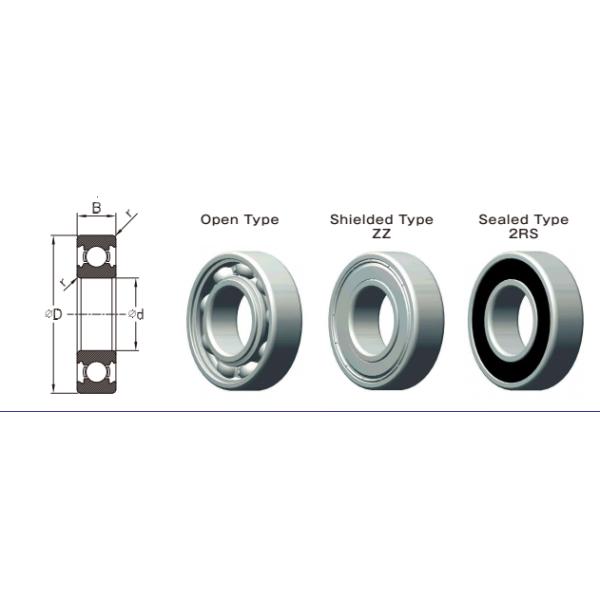

Different Shield design :

Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ

Deep groove ball bearing have two inherent advantages; they can sustain some axial load in either direction as well as radial loads, and the two raceway cross-sections are simple circular arcs which can be very precisely finished so the bearings have low friction and very little noise or vibration .

Several different cage designs are available with different characteristics and the choisece depends upon the individual application.

2. Package: Plastic tube + carton box + Pallet

3. Shipping: By DHL or nominated forwarder

4. Exhibition show

Automation expo 2019 in Bombay Centre

Fans / Motors Small Motor Bearings 3*8*4mm Chrome Steel SAE52100 Material 693ZZ

5. Related models:

Plz visit to our company web to check more detals: www.dawbearing.com

6. Contact info:

Ms sharon

Tel: +86-138-2357-3563

E-mail: szdhll@dawbearing.com
