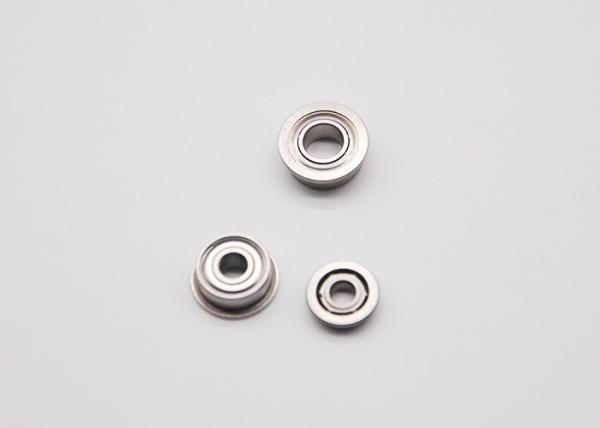

Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft
Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft
Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft
Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft
Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft
Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft
Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft
Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft
Specifications
Brand Name :
DAW or ODM brand acceptable
Model Number :
Flange bearing MF684ZZ
Certification :
SGS ISO9001:2015
Place of Origin :
Shanghai, China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000000 Piece/Pieces per Month
Delivery Time :
7--45days
Packaging Details :
tubes+cartons +pallets
Precision Rating :
Standard class P0
Tolerance :
ABEC-1 ABEC-3 ABEC-5 optional
Clearance :
C2 C0 C3 C4 C5 optional
Vibration :
V1,V2,V3,V4 optional
Noisy level :
Z1,Z2,Z3,Z4 optional
Seals Type :
ZZ , Z, 2RS, RS,OPEN optional
Cage Material :
Steel , Nylon , Brass optional
Material :
Gcr15 , Stainless steel
Lubrication :
Grease , oil optional
Number of ROW :
Single Row
Sample :
available
Load Direction :
Radial
Description

Miniature Flanged Extended Bearings MF684ZZ small flange bearings for RC aircraft

Ⅰ. About Extra-miniature, miniature and small ball bearings of this type have flanges on their outer rings to make positioning in the axial direction easy, and they achieve economy by eliminating the need to spotface the housing edges.
This type is ideal for parts that require high-speed rotation, low-friction torque and low-vibration/noise for devices that should be smaller, thinner and lighter-weight..

Ⅱ. Feature : Advantage MF684ZZ flanged ball bearings with a flange on the outer, axial positioning easy.no need bearing block, become more economical. flanged ball bearings is suitable for low-friction bearing torque, high rigidity, good rotation accuracy condotion.


Ⅲ. Application: Miniature Flanged ball bearings is use in small motor, R/C toys, micro engine, R/C cars, RC Aircraft, Radio Control,RC Slot car and mini fan, etc.

Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft

Ⅳ. Specification

Series Metric Flange Bearings
Type MF684ZZ-Flange Bearings
Bore Diameter(mm) 4
Outer Diameter(mm) 9
Flange Outer Diameter(mm) OPEN 10.3
ZZ 10.3
Width(mm) OPEN 2.5
ZZ 4
Flange Width(mm) OPEN 0.6
ZZ 1
Grease Rate 25%~30%

Ⅴ. PACKING / Shipping

Normally we packed as below 3 methods, also we can provide package as customer requirements:

1) Tube+outer carton+pallets
2) Single box+outer carton+pallets
3) Tube package+middle box+outer carton+pallets

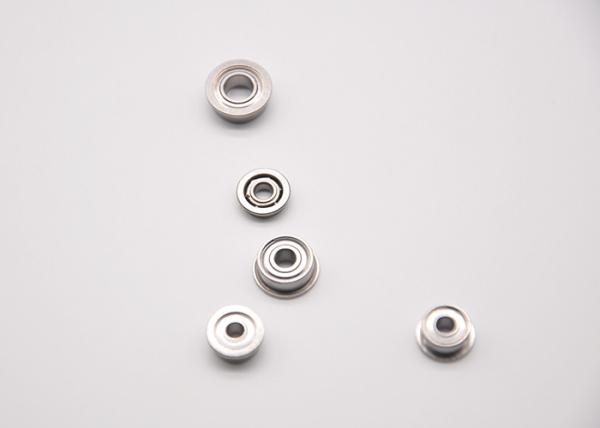

Ⅵ. Product Show:

Miniature MF684ZZ Flanged Extended Bearings , Single Row Ball Bearing For RC Aircraft
