Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings
Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings
Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings
Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings
Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings
Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings
Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings
Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings
Specifications
Brand Name :
DAW or ODM brand acceptable
Model Number :
Flange bearing FR4ZZ
Certification :
SGS ISO9001:2015
Place of Origin :
Shanghai, China
MOQ :
100
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000000 Piece/Pieces per Month
Delivery Time :
7--45days
Packaging Details :
tubes+cartons +pallets
Precision Rating :
Standard class P0
Tolerance :
ABEC-1 ABEC-3 ABEC-5 optional
Clearance :
C2 C0 C3 C4 C5 optional
Vibration :
V1,V2,V3,V4 optional
Noisy level :
Z1,Z2,Z3,Z4 optional
Seals Type :
ZZ , Z, 2RS, RS,OPEN optional
Cage Material :
Steel , Nylon , Brass optional
Material :
Gcr15 , Stainless steel
Lubrication :
Grease , oil optional
Number of ROW :
Sing Row
Sample :
available
Load Direction :
Radial
Description

Micro engine flange ball bearings FR4ZZ Miniature flange ball bearing single row bearings

Ⅰ. About Extra-miniature, miniature and small ball bearings of this type have flanges on their outer rings to make positioning in the axial direction easy, and they achieve economy by eliminating the need to spotface the housing edges.
This type is ideal for parts that require high-speed rotation, low-friction torque and low-vibration/noise for devices that should be smaller, thinner and lighter-weight..

Ⅱ. Feature : Advantage MF684ZZ flanged ball bearings with a flange on the outer, axial positioning easy.no need bearing block, become more economical. flanged ball bearings is suitable for low-friction bearing torque, high rigidity, good rotation accuracy condotion.


Ⅲ. Application: Miniature Flanged ball bearings is use in small motor, R/C toys, micro engine, R/C cars, RC Aircraft, Radio Control,RC Slot car and mini fan, etc.

Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings

Ⅳ. Specification

Series Inch Flange Bearings
Type FR4ZZ-Flange Bearings
Bore Diameter(mm) 6.350
Outer Diameter(mm) 15.875
Flange Outer Diameter(mm) OPEN 17.526
ZZ 17.526
Width(mm) OPEN 4.978
ZZ 4.978
Flange Width(mm) OPEN 1.067
ZZ 1.067
Grease Rate 25%~30%

Ⅴ. PACKING / Shipping

Normally we packed as below 3 methods, also we can provide package as customer requirements:

1) Tube+outer carton+pallets
2) Single box+outer carton+pallets
3) Tube package+middle box+outer carton+pallets

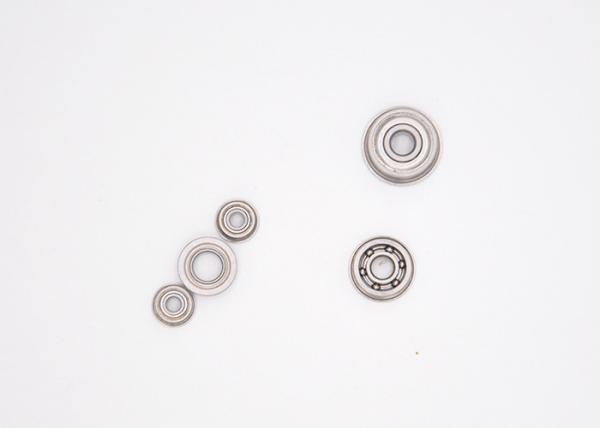

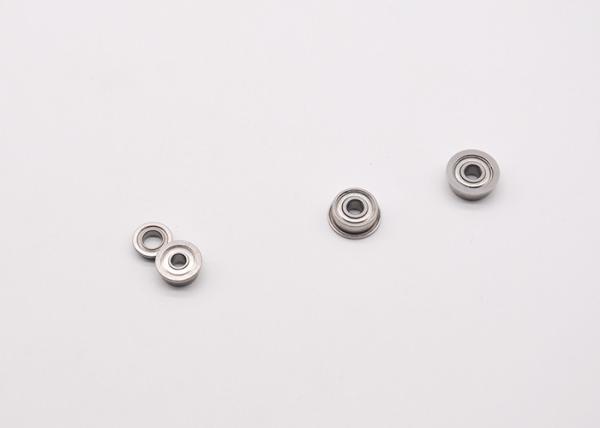

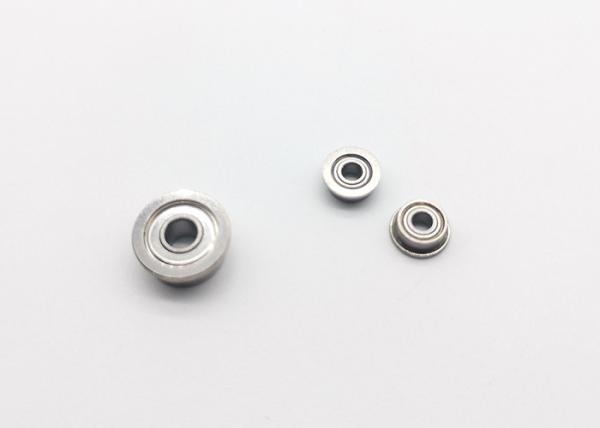

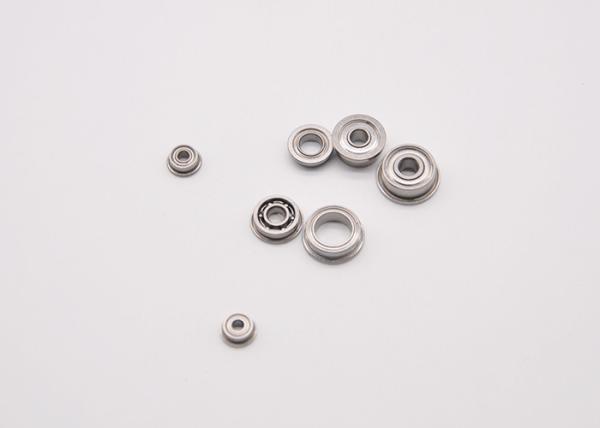

Ⅵ. Product Show:

Micro Engine Flanged Ball Bearing FR4ZZ High Rigidity Single Row Bearings

Other models

Type Inner Diameter Outer Diameter Width Load Rating Cr(N) Load Rating Cor(N) Max Speed 　
Grease Oil
OPEN ZZ *1000rpm
R2-5ZZ 3.175 7.938 2.779 3.571 558 180 60 67
R2ZZ 9.525 3.967 3.967 631 219 56 67
R2ZZA 12.7000 4.366 4.366 640 227 53 63
R168ZZS 6.35 9.525 3.175 3.175 373 172 48 56
R188ZZ 12.7000 3.175 4.762 1082 442 40 50

If you have other questions, please feel free to contact us as below.

Sharon Liu
Sales Manager
M:+86-138-2357-3563
Skype:+86-138-2357-3563
Mail:szdhll@szdhzc.com
szdhll@dawbearing.com
