FF-130SH Low Speed 12v DC Motor , Miniature DC Motor For Electric Shaver
FF-130SH Low Speed 12v DC Motor , Miniature DC Motor For Electric Shaver
FF-130SH Low Speed 12v DC Motor , Miniature DC Motor For Electric Shaver
FF-130SH Low Speed 12v DC Motor , Miniature DC Motor For Electric Shaver
Specifications
Brand Name :
Tronsun Motor
Model Number :
FF-130SH
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Product name :
mini brush dc motor
Voltage Range :
6v-24v
Speed :
3000-20000rpm
Application :
Audiovisual Equipment
Bearing :
oil-impregnated bearing
Shaft Diameter :
2mm
End cap :
Metal
Housing :
20.4*15.4*25.1mm
Description

High Quality micro low rpm 5v mini dc motor for electric shaver

Model No.: FF-130SH/FK-130SH

Applications:

Electric shaver

Home appliance

Tattoo machine

Toys

Features:

We can make it precious metal brush or carbon brush

Metal end cap

Built-in varistor

Dual shaft available

We can adjust the voltage and speed

Mini oil-impregnated bearing

We can add vibrator on the shaft

Knurling shaft available

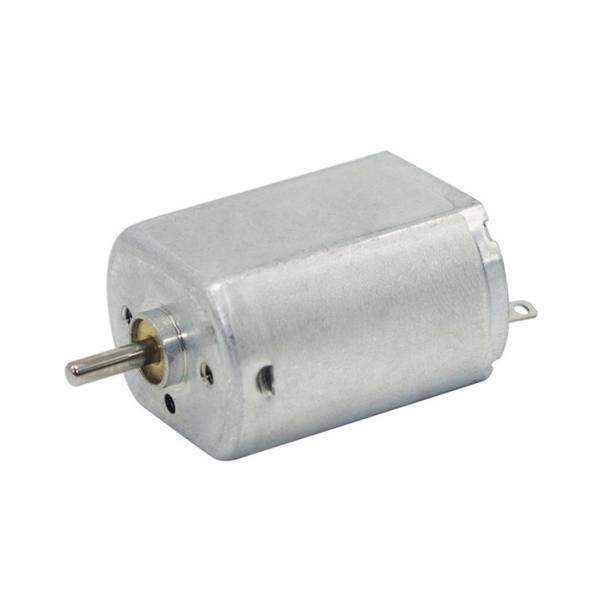

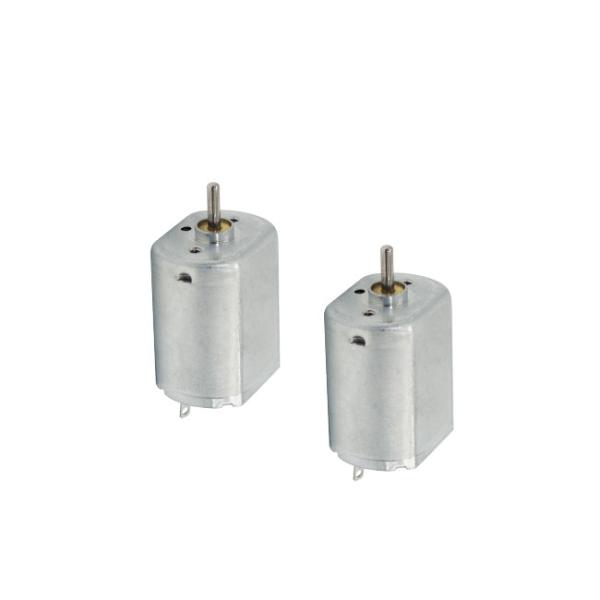

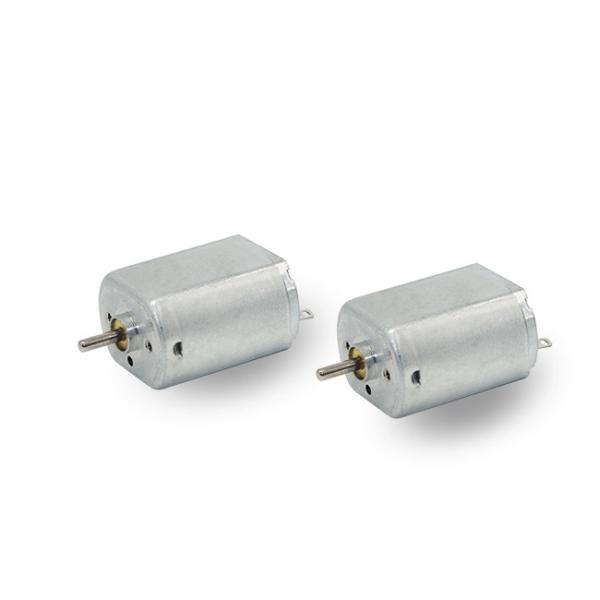

Product Showcase:

FF-130SH Low Speed 12v DC Motor , Miniature DC Motor For Electric Shaver

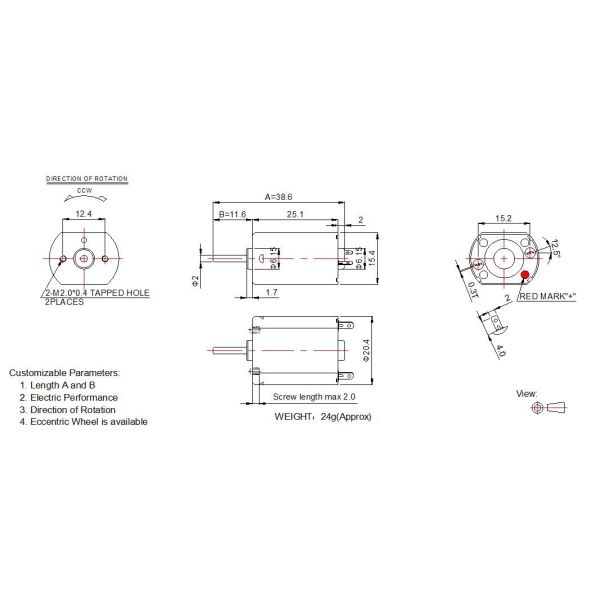

2D Drawing:

FF-130SH Low Speed 12v DC Motor , Miniature DC Motor For Electric Shaver

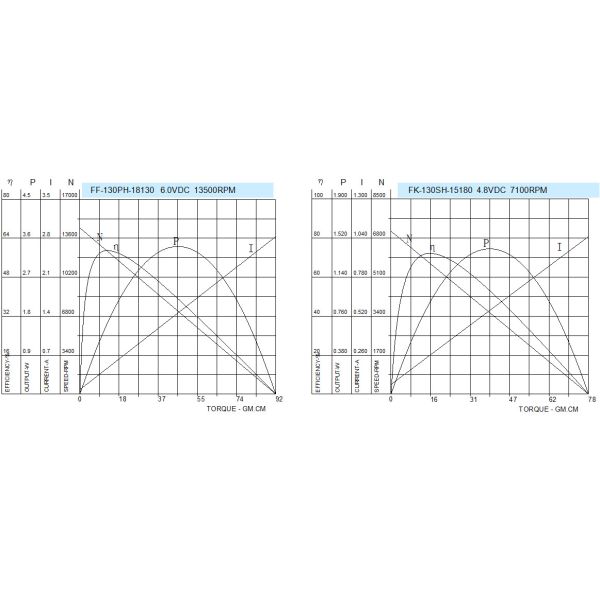

Motor Performance:


MODEL		 VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
FF-130PH-18130 3.0~7.0 6.0 13500 0.082 11500 0.48 13 1.28 1.53 92 9.03 2.83
FK-130SH-15180 3.0~6.0 4.8 7100 0.065 5685 0.26 15.5 1.52 0.90 78 7.65 1.05
FF-130SH-11340 4.5~10.0 9.0 7000 0.035 5619 0.15 15.4 1.51 0.89 80 7.85 0.61

FF-130SH Low Speed 12v DC Motor , Miniature DC Motor For Electric Shaver

Pls download the PDF document for referrence.

FF-130SH.pdf

FAQ

Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q: Can you make motors customized?

Yes, we can and welcome.

Q: What's the deliverly time of sample and the cargo?

For regular specification, it needs about 3-5 working days for samples, and 15-20 working days for the cargo; For customized specification, it needs about 7-10 working days for samples, 25-30 working days for the cargo.

Q: What is your MOQ?

Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .

Q: Do you have motors in stocks?

No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
