Customized Mini DC Motor 12v 24v 3000 - 20000 Rpm Speed With Female Terminal
Customized Mini DC Motor 12v 24v 3000 - 20000 Rpm Speed With Female Terminal
Customized Mini DC Motor 12v 24v 3000 - 20000 Rpm Speed With Female Terminal
Customized Mini DC Motor 12v 24v 3000 - 20000 Rpm Speed With Female Terminal
Specifications
Brand Name :
Tronsun Motor
Model Number :
FT-280SA
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Other name :
micro DC motor
Voltage Range :
6v-24v
Bearing :
oil-impregnated bearing
Application :
Central lock
Speed :
3000-20000rpm
Terminal :
Female terminal
Housing Diameter :
24mm*18.3mm
Housing Length :
30mm
Description

High Quality 12v 24v mini dc motor with female terminal for car central lock

Model No.: FT-280SA

Typical application:

This motor is typically used for automotive car central lock, and rearview mirror, with female terminal.

Main Features:

Plastic end cap

Carbon brush

Oil-impregnated bearing

Female terminal for automotive product

Built-in varistor inside the motor

3 slots rotor

Flat type housing

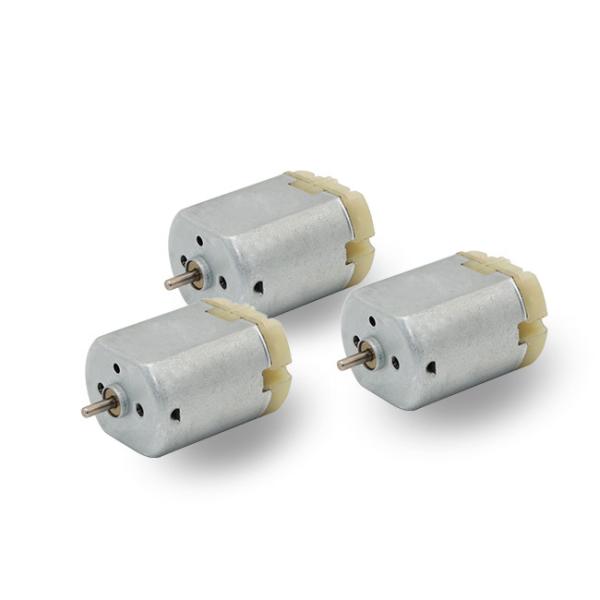

Product Showcase:

Customized Mini DC Motor 12v 24v 3000 - 20000 Rpm Speed With Female Terminal

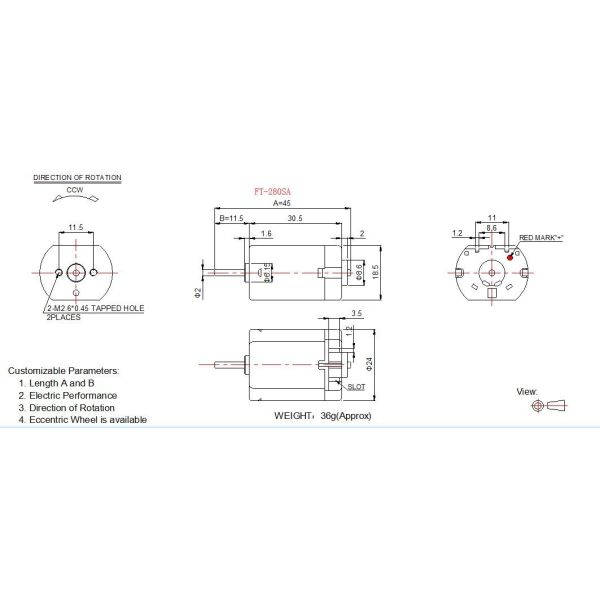

2D Drawing:

Customized Mini DC Motor 12v 24v 3000 - 20000 Rpm Speed With Female Terminal

Motor Performance:


MODEL		 VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
FT-280PA-22125 3.0~13.0 12.0 14500 0.14 12500 0.91 50 4.91 6.41 378 37.10 5.85
FT-280SA-18165 6.0~14.0 13.0 11800 0.12 9745 0.57 50.5 4.96 5.05 290 28.46 2.70
FT-280PA-16220 6.0~13.0 12.0 8000 0.06 6793 0.34 39.2 3.85 2.73 260 25.52 1.85
FT-280SA-10425 6.0~25.0 24.0 8300 0.04 6817 0.18 38.5 3.78 2.69 214 21.00 0.84

Pls download the PDF document for referrence.

FT-280SA.pdf

Why US

We have professional international sales team.

We can provide different type brush dc motor, bldc motor and gearbox.

We have experienced engineer of motor and gearbox.

We can reply all the inquiry within 24h.

FAQ

Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q: What certifications do you have?
A: We currently have CE and ROSH certifications.

Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.

Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Thanks!
