Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor
Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor
Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor
Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor
Specifications
Brand Name :
Tronsun Motor
Model Number :
FF-N20
Certification :
RoHS
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500kpcs/month
Delivery Time :
25 Working Days
Packaging Details :
TBD
Other Name :
car door lock motor
Diameter :
12*10mm
Housing Length :
15mm
Bearing :
Oil-impregnated bearing
Motor Type :
Brush dc motor
Typical Appliacation :
Smart lock
Shaft :
1mm
Weight :
5g
Description

High quality 12mm mini N20 dc motor micro door lock motor 3v 6v 12v

Model: FF-N10TA/FF-N20TA/FF-N30TA

Tytical Application:

Electronic Door Lock

Smart Home appliance

Smart Robot

Electric Toys

Gear box

Precision Instruments


Features:

Shaft Material: Stainless Steel

Oil-impregnated bearing

Output power 0.1-1.6W

Encoder available

Precious metal brush or carbon brush

3 slot armature

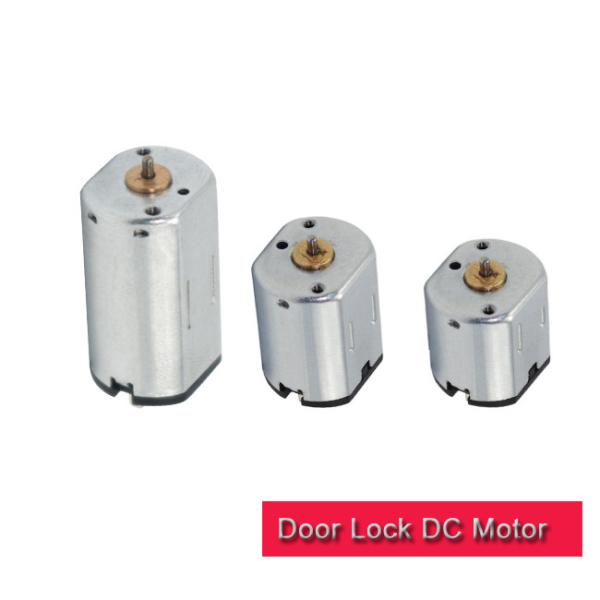

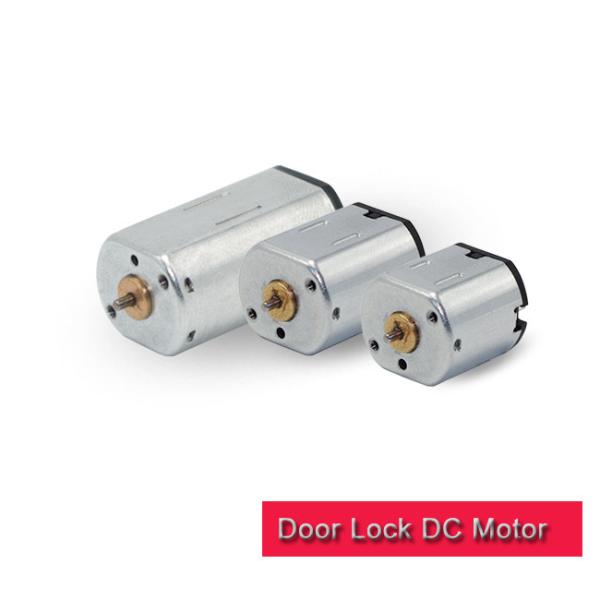

Product Showcase:
Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor

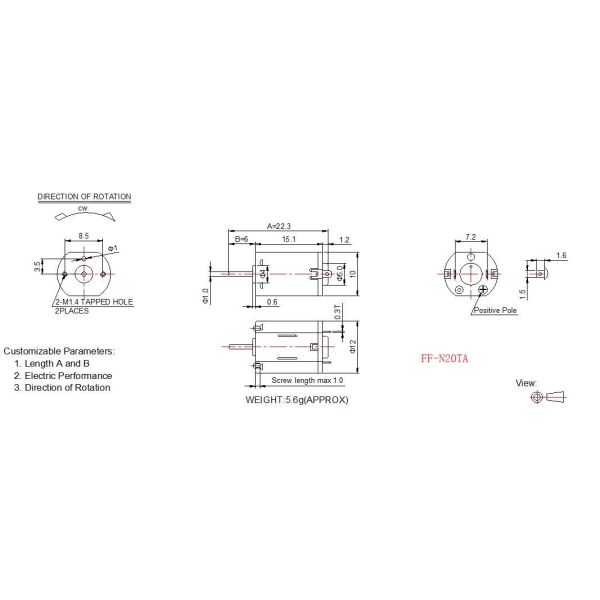

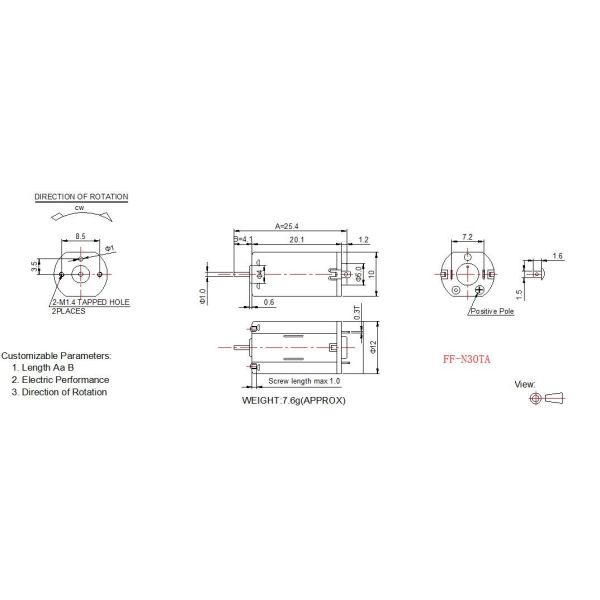

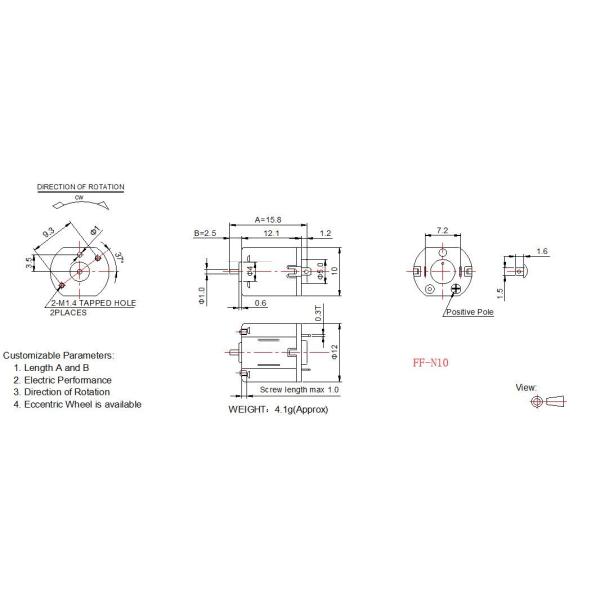

Outline Drawing:
Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC MotorMicro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor​

Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor

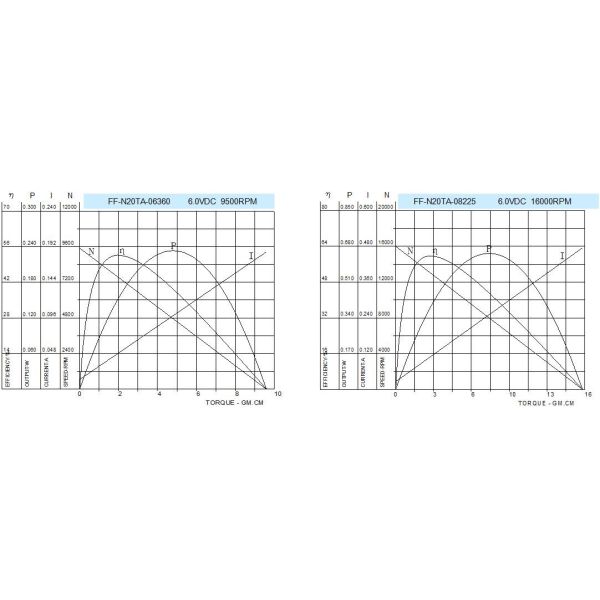

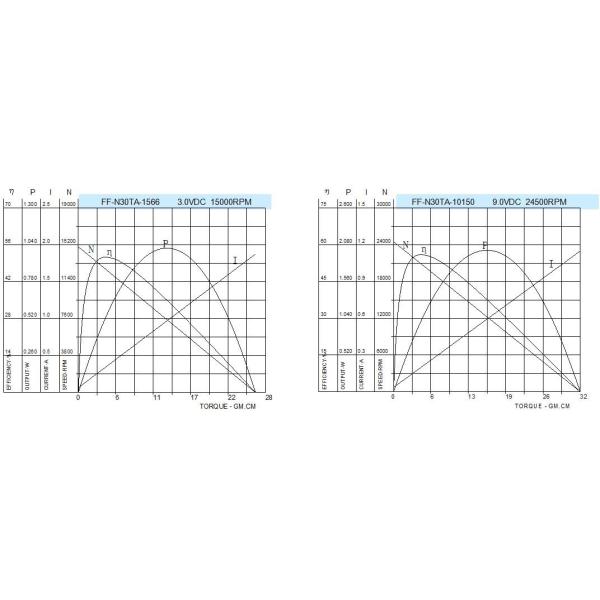

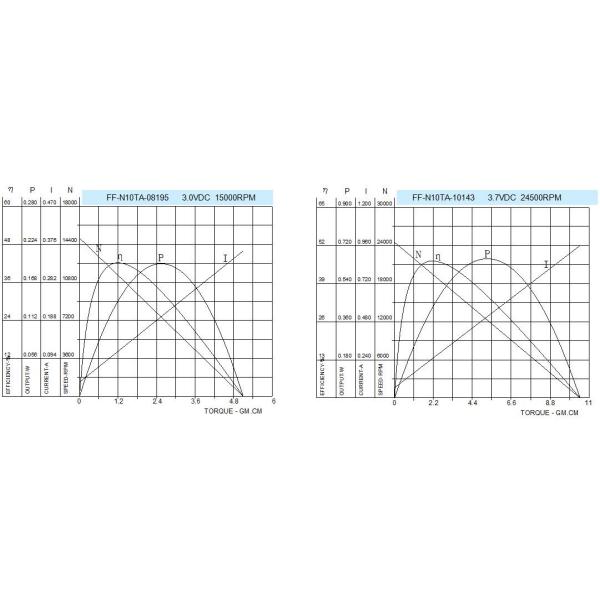

Motor Performance:


MODEL		 VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
FF-N10TA-08195 2.0~4.0 3.0 15000 0.035 11400 0.11 1.2 0.12 0.14 5.1 0.50 0.36
FF-N10TA-10143 2.0~4.0 3.7 24500 0.065 19400 0.25 2.2 0.22 0.44 10.5 1.03 0.96
FF-N10TA-07280 3.0~7.0 6.0 22500 0.025 18500 0.12 1.5 0.15 0.28 8.6 0.84 0.56

Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor


MODEL		 VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
FF-N20TA-06360 3.0~7.0 6.0 9500 0.013 7800 0.05 2 0.20 0.16 9.6 0.94 0.185
FF-N20TA-07280 3.0~12.0 12.0 26000 0.02 22000 0.11 3 0.29 0.68 21 2.06 0.625
FF-N20TA-08225 3.0~7.0 6.0 16000 0.025 12960 0.11 3 0.29 0.40 15.8 1.55 0.475
FF-N20TA-09180 3.0~7.0 6.0 20500 0.034 16950 0.16 3.1 0.30 0.54 17.8 1.75 0.77
FF-N20TA-09168 3.0~7.0 3.0 10800 0.026 8400 0.104 2.1 0.21 0.18 10.5 1.03 0.418
FF-N20TA-10165 3.0~7.0 5.0 18500 0.034 15400 0.16 2.9 0.28 0.46 17.2 1.69 0.792
FF-N20TA-11125 3.0~7.0 6.0 20500 0.065 23700 0.33 4.5 0.44 1.09 27 2.65 1.66
FK-N20TA-12115 3.0~7.0 6.0 31000 0.135 24500 0.51 6.3 0.62 1.58 31 3.04 1.92

Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor


MODEL		 VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
FF-N30TA-06360 3.0~7.0 6.0 6000 0.01 4560 0.042 3 0.29 0.14 12.5 1.23 0.14
FF-N30TA-1566 2.0~4.0 3.0 15000 0.066 12600 0.35 4.2 0.41 0.54 26.5 2.60 1.875
FF-N30TA-10150 3.0~9.0 9.0 24500 0.036 20800 0.205 4.8 0.47 1.02 32 3.14 1.15
FF-N30TA-10140 3.0~7.0 6.0 17600 0.028 14850 0.15 3.2 0.31 0.49 20.6 2.02 0.82
FF-N30TA-09210 2.0~5.0 2.5 5200 0.026 4200 0.055 1.6 0.16 0.07 8.2 0.80 0.23
FF-N30TA-06425 3.0~13.0 12.0 12000 0.012 9800 0.055 3.5 0.34 0.35 19.5 1.91 0.23
FK-N30TA-10140 3.0~9.0 9.0 24500 0.036 20100 0.28 5.3 0.52 1.09 30 2.94 1.28
FK-N30TA-13100 3.0~6.0 5.0 16000 0.135 13300 0.33 5.8 0.57 0.79 35 3.43 1.65

Micro Electric Door Lock Motor 6v 12v 12mm Diameter Mini N20 DC Motor

The Shaft and the motor performance such as voltage and speed can be custom made.

PLS download PDF spec for referrence.

FF-N10TA.pdf

FF-N20TA.pdf

FF-N30TA.pdf

FAQ


Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.

Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.

Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q: What’s the capacity per month?
A: Over One Million pieces per month for all DC Motor series.

Q: Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.

Q: Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM
