3 - 24 Volt DC Gear Motor 38GF3540 Spur Gearbox For Medical Equipment
3 - 24 Volt DC Gear Motor 38GF3540 Spur Gearbox For Medical Equipment
3 - 24 Volt DC Gear Motor 38GF3540 Spur Gearbox For Medical Equipment
3 - 24 Volt DC Gear Motor 38GF3540 Spur Gearbox For Medical Equipment
Specifications
Brand Name :
Tronsun Motor
Model Number :
38GF3540
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Product name :
micro metal gearmotor
Voltage Range :
3v-24V
Gearbox type :
Spur gearbox
Reduction ratio :
36/1-450/1
Weight :
230g
Application :
Medical Machine
Rotation :
CW/CCW
Motor :
Carbon brush motor
Description

High Quality 24 volt dc motor with gear reduction 38GF3540 12v 24v geared dc motor for medical equipment

Model No.: 38GF3540

Applications:

Vending Machine

Valve

Home appliance

Medical machine

Features:

Carbon brush dc motor

64*38mm spur gearbox

36/1-450/1 reduction ratio

Threaded shaft available

Encoder available

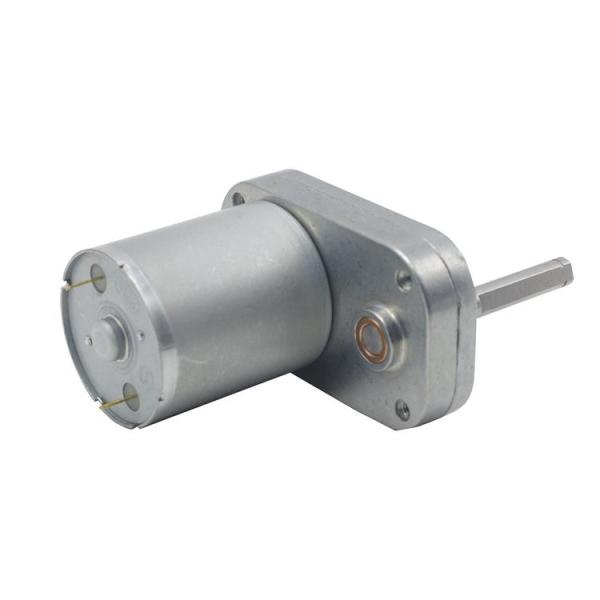

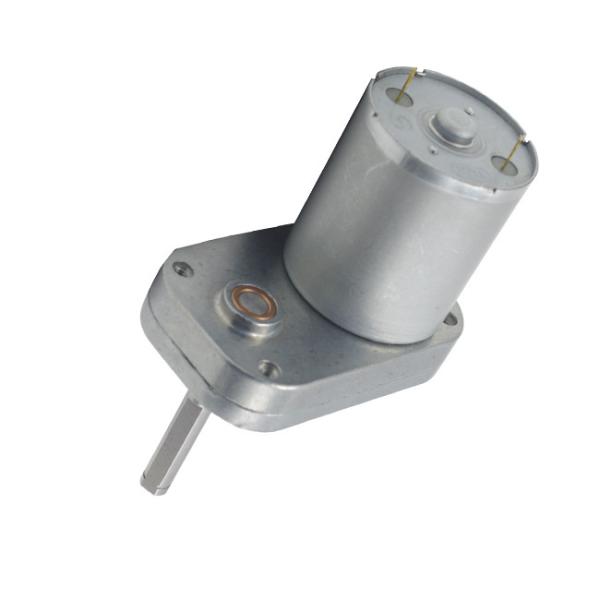

Product Showcase:

3 - 24 Volt DC Gear Motor 38GF3540 Spur Gearbox For Medical Equipment

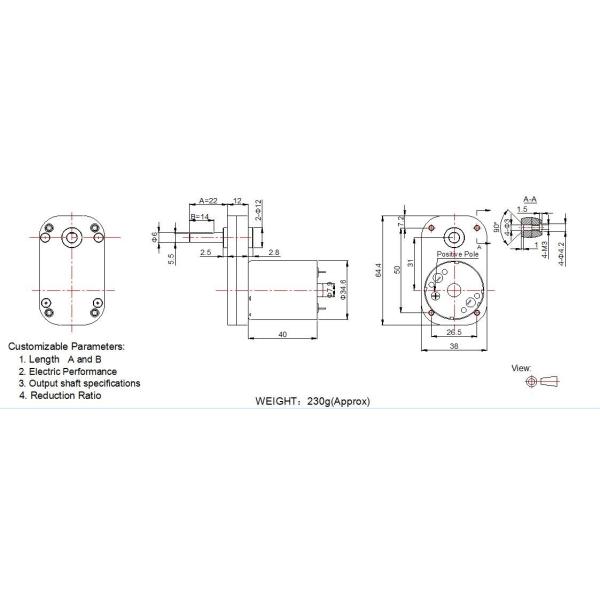

2D Drawing:
3 - 24 Volt DC Gear Motor 38GF3540 Spur Gearbox For Medical Equipment
GEARBOX REDUCTION RATIO:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
64.4 x 38 x 12 3 36/1 40/1 60/1 67/1 3.0 6.0
4 85/1 90/1 114/1 120/1 200/1 6.0 10.0
4 96/1 101/1 128/1 135/1 225/1 8.0 15.0
5 400/1 450/1 10.0 20.0


Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
38GF3540-36-24400 36/1 5.0~25.0 24.0 400 0.15 335 1.2 3.0 10.31 27.2 9.5
38GF3540-60-24240 60/1 5.0~25.0 24.0 240 0.15 213 1.2 5.0 10.92 44.1 9.5
38GF3540-135-24105 1351 5.0~25.0 24.0 105 0.09 94 0.64 10.0 9.64 93.5 9.5

Pls download the PDF document for referrence

38GF3540.pdf

FAQ

Q: What is the payment terms?

A: T/T, Western Union, Paypal, etc, easy for your business.

Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.

Q: What if i don't know the above data?
A: Please contact our saleman to handle,we'll answer your questions patiently.

Q: What information you need provide if you want we recommend motors for you?

A: You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.

Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.
