12v 24v Brushless Gear Motor , Brushless DC Electric Motor For Valve Product
12v 24v Brushless Gear Motor , Brushless DC Electric Motor For Valve Product
12v 24v Brushless Gear Motor , Brushless DC Electric Motor For Valve Product
12v 24v Brushless Gear Motor , Brushless DC Electric Motor For Valve Product
Specifications
Brand Name :
Tronsun Motor
Model Number :
38GF2418
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Product name :
brushless DC gear motor
Voltage Range :
3v-24V
Gearbox type :
Spur gearbox
Reduction ratio :
36/1-450/1
Weight :
155g
Application :
Valve
Motor :
24mm brushless dc motor
Gearbox size :
64*38
Description

Low noise long lifetime 12v 24v dc brushless gear motor with small brushless motor for valve product

Model No.: 38GF2418

Applications:

Valve

Smart home appliance

Smart Robots

Vending Machine

Features:

64*38mm spur gearbox

Dual shaft available

36/1-450/1 reduction ratio

3-5 gear stage gearbox

Threaded shaft available

Pins arrangements:

1. Vcc ( Red wire )

2. FG ( Green wire )

3. CW/CCW ( Yellow wire )

4. GND ( Black wire )

5. PWM ( Blue wire )

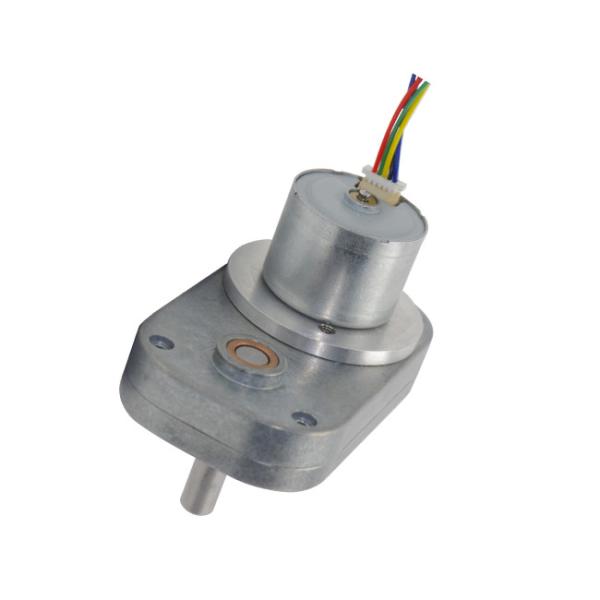

Product Showcase:

12v 24v Brushless Gear Motor , Brushless DC Electric Motor For Valve Product

2D Drawing:
12v 24v Brushless Gear Motor , Brushless DC Electric Motor For Valve Product
GEARBOX REDUCTION RATIO:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
64.4 x 38 x 12 3 36/1 40/1 60/1 67/1 3.0 6.0
4 85/1 90/1 114/1 120/1 200/1 6.0 10.0
4 96/1 101/1 128/1 135/1 225/1 8.0 15.0
5 400/1 450/1 10.0 20.0


Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
38GF2418-40-12160 40/1 8.0~15.0 12.0 160 0.06 120 0.18 0.6 0.74 2.5 0.52
38GF2418-135-1248 135/1 8.0~15.0 12.0 48 0.06 35 0.18 2.0 0.72 7.6 0.52
38GF2418-225-2440 225/1 8.0~25.0 24.0 40 0.07 29.5 0.2 5.0 1.51 19.3 0.59
38GF2418-450-2420 450/1 8.0~25.0 24.0 20 0.07 14 0.23 10.0 1.44 34.5 0.59

Pls download the PDF document for referrence.

38GF2418.pdf

FAQ

Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.

Q: What if i don't know the above data?
A: Please contact our saleman to handle,we'll answer your questions patiently.

Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
