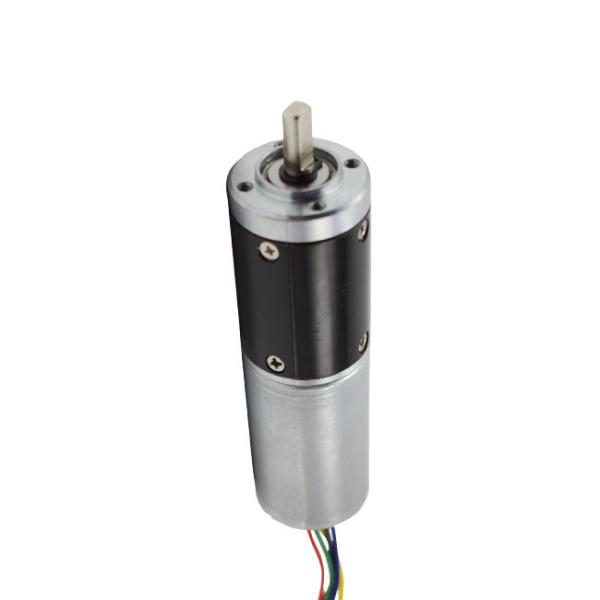

Long lifetime high torque 12 volt 24v dc brushless motor with 28mm planetary gearbox for smart robot
Long lifetime high torque 12 volt 24v dc brushless motor with 28mm planetary gearbox for smart robot
Long lifetime high torque 12 volt 24v dc brushless motor with 28mm planetary gearbox for smart robot
Long lifetime high torque 12 volt 24v dc brushless motor with 28mm planetary gearbox for smart robot
Specifications
Brand Name :
Tronsun Motor
Model Number :
28PA2838
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Product name :
DC Planetary gear motor
Voltage Range :
6v-24v
Gearbox type :
Planetary gear motor
Reduction ratio :
3.7/1-721/1
Weight :
260g
Application :
Electric Curtains
Rotation :
CW/CCW
Motor :
28mm bldc motor
Description

Long lifetime high torque 12 volt 24v dc brushless motor with 28mm planetary gearbox for smart robot

Model No.:28PA2838

Applications:

Electric curtains

Smart Home appliance

Robots

Features:

28mm metal planetary gearbox

3.7/1-721/1 reduction ratio

28mm brushless dc motor

Threaded shaft available

Pins arrangement:

1. Vcc ( red wire )

2. FG ( Green wire )

3. CW/CCW ( Yellow wire )

4. GND ( Black wire )

5. PWM ( Blue wire )

Product Showcase:

Long lifetime high torque 12 volt 24v dc brushless motor with 28mm planetary gearbox for smart robot

2D Drawing:
Long lifetime high torque 12 volt 24v dc brushless motor with 28mm planetary gearbox for smart robot
GEARBOX REDUCTION RATIO:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
27.5 1 3.7/1 5.2/1 5.0 10.0
35.5 2 14/1 19/1 27/1 8.0 20.0
43.5 3 51/1 71/1 100/1 139/1 15.0 30.0
51.5 4 189/1 264/1 369/1 515/1 721/1 20.0 40.0


Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
28PA2838-27-12330 27/1 8.0~15.0 12.0 330 0.25 264 1.2 2.5 6.77 12.68 5
28PA2838-71-12125 71/1 8.0~15.0 12.0 125 0.25 100 1.2 6.9 7.08 34.25 5
28PA2838-139-1264 139/1 8.0~15.0 12.0 64 0.25 52 1.1 12 6.40 65.8 5
28PA2838-264-2435 264/1 8.0~26.0 24.0 35 0.2 30 0.8 20 6.15 156.8 4.6
28PA2838-515-2418 515/1 8.0~26.0 24.0 18 0.21 16.2 0.7 30 4.98 309.4 7.8

Pls download the PDF document for referrence.

28PA2838.pdf

FAQ

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.

Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 50% deposit is available, the balance money should be paid before shipping.

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.

Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
