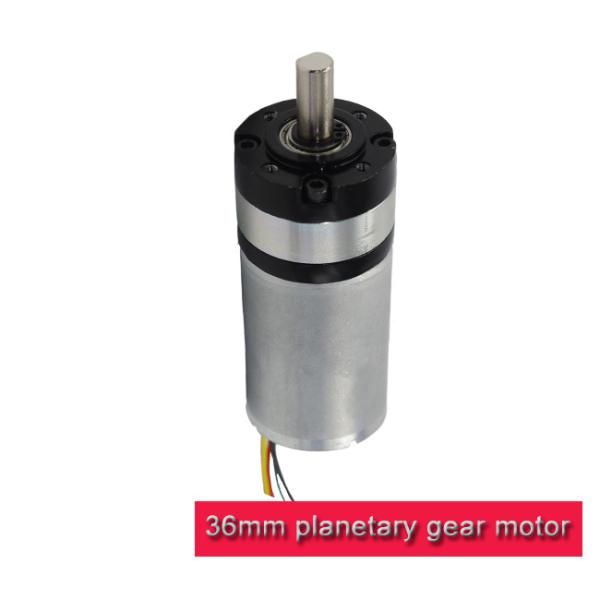

High Torque long lifetime 12v 24v dc planetary gear motor with 36mm brushless dc motor

Model: 36PA3650

Tytical Application:

Smart Robots

Smart home appliance

Power tools

Electric toys

Vending machine

Features:

Combine with 36mm brushless dc motor

Shaft can be custom made such as threaded shaft

Special customized gears available

Oil-impregnated bearing or ball bearing

36mm high precision metal planetary gearbox

1-5 gear stage, 3.7/1-3736/1 ratio

10-50kg.cm rated torque

Brake function

Long lifetime more than 5000h

Low EMI effect

Pins arrangement

1. VCC (red wire)

2. FG (green wire)

3. CW/CCW (yellow wire)

4. GND ( black wire )

5. PWM ( blue wire )

6. Brake ( white wire)

Product Showcase:

Outline Drawing:

​

Gearbox Reduction Ratio:

Motor Performance:

The Shaft and the motor performance such as voltage and speed can be custom made.

Here attached the PDF spec.

36PA3650.pdf

Competitive Advantages:

10 years in manufacturing dc motor and gearbox.

Customization available.

Reasonable price with good quality product.

High Product performance: Low noise, High efficiency, long lifespan

Prompt Reply and Short Lead time

Good Service and Nice Communication.

Small orders accepted.

Sample available.

100% inspection during the production.

FAQ

Q: What is the payment terms?

A: T/T, Western Union, Paypal, etc, easy for your business.

Q: What information you need provide if you want we recommend motors for you?

A: You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.

Q: What's your main products?
A: Dia4~42mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.

Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q: What is your MOQ?

A: Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .

Q: Do you have motors in stocks?

A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.
