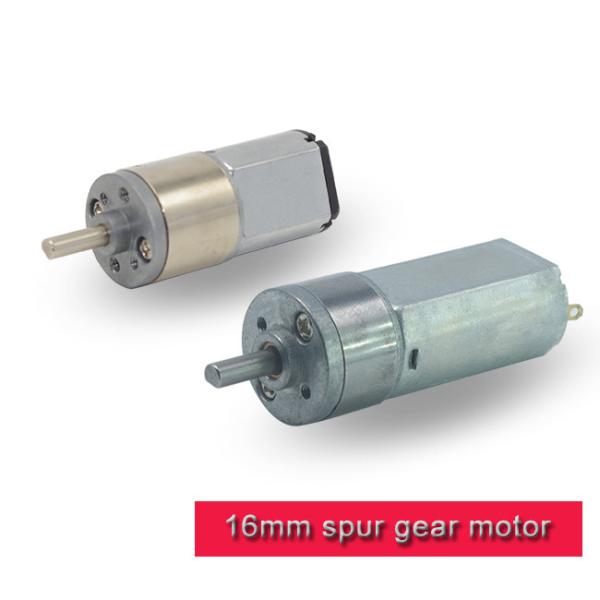

Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v
Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v
Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v
Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v
Specifications
Brand Name :
Tronsun Motor
Model Number :
16GA030/16GA050
Certification :
RoHS
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500kpcs/month
Delivery Time :
25 Working Days
Packaging Details :
TBD
Other Name :
Spur Gear Motor
Gearbox Size :
16mm
Voltage Range :
3-12v
Gear Reduction Ratio :
11.5/1-889/1
Motor Type :
Brush
Typical Appliacation :
Smart Robot
Shaft :
3mm
Material :
RoHS
Description

High Precision 16mm metal spur gearbox with small brush dc motor 3v 6v 12v geared motor

Model: 16GA030 / 16GA050

Characters:

16mm round Spur metal gearbox

Encoder available for 16GA050

0.1-1kg.cm load

Varied speed

Tytical Application:

Electronic door lock

Smart home appliance

Electric toys

Medical Instrument

Product Showcase:

Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v

Outline Drawing:

Smart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12vSmart Robot Micro Metal Gearmotor / 16mm Small Brushed DC Motor 3v 6v 12v​

Gearbox Reduction Ratio:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
11 3 11.5/1 14/1 0.2 0.5
12.5 4 23/1 28/1 32/1 40/1 0.3 0.7
14 5 46/1 56/1 65/1 80/1 91/1 112/1 0.4 0.8
15.5 6 130/1 159/1 183/1 224/1 257/1 315/1 0.5 1.0
17 7 365/1 448/1 515/1 630/1 725/1 889/1 0.6 1.2

Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
16GA030-14-061200 14/1 3.0~6.0 6.0 1200 0.08 945 0.06 0.06 0.58 0.29 1.12
16GA030-112-03120 112/1 2.0~4.0 3.0 120 0.1 96 0.42 0.36 0.35 1.8 1.65
16GA030-515-1225 515/1 5.0~12.0 12.0 25 0.05 19 0.16 1.6 0.31 6.45 0.48


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
16GA050-32-06385 32/1 3.0~6.0 6.0 385 0.08 317 0.37 0.23 0.75 1.32 1.42
16GA050-91-12130 91/1 5.0~12.0 12.0 130 0.05 102 0.16 0.67 0.70 3.1 0.58
16GA050-224-0658 224/1 3.0~6.0 6.0 58 0.06 46 0.23 1.1 0.52 5.3 0.85

The Shaft and the motor performance such as voltage and speed can be custom made.

Here attached the PDF spec.

16GA030.pdf

16GA050.pdf

RFQ

Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.

Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.

Q: What certifications do you have?
A: We currently have CE and ROSH certifications.

Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.
