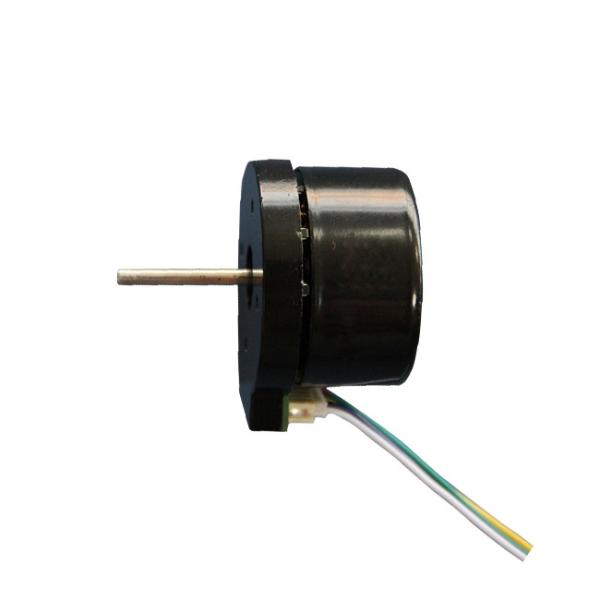

Brushless DC Outrunner Motor , Small High Torque Electric Motor 37mm 12v 18v 24v
Brushless DC Outrunner Motor , Small High Torque Electric Motor 37mm 12v 18v 24v
Brushless DC Outrunner Motor , Small High Torque Electric Motor 37mm 12v 18v 24v
Brushless DC Outrunner Motor , Small High Torque Electric Motor 37mm 12v 18v 24v
Specifications
Brand Name :
Tronsun Motor
Model Number :
BL3725O
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Product name :
small high torque DC motor
Voltage Range :
6v-24v
Diameter :
37mm
Bearing :
Ball Bearing
Shaft diameter :
3.0
Application :
Medical apparatus
Rotation :
CW/CCW
Length :
25
Description

High Torque 37mm 12v 18v 24v outrunner dc brushless motor for medical apparatus

Model No.:BL3725O

Applications:

Fitness products

Home appliance

Vacuum cleaner


Description:

Inner PCBA driving

Current Limit protection function

PWM Control

FG output

CW/CCW control

Low EMI

Low noise

Brake function

Lifetime more than 20000h

Motor Teminals:

No. Pin Arrangement
1 VCC
2 FG
3 CW/CCW
4 GND
5 PWM
6 Brake

2D Drawing:
Brushless DC Outrunner Motor , Small High Torque Electric Motor 37mm 12v 18v 24v

Motor Performance:


MODEL		 VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
BL3725O-V1 8.0~16.0 12.0 3857 0.2 3124 0.881 206.4 20.23 6.615 1086.5 106.48 3.785
BL3725O-V2 8.0~26.0 18.0 4832 0.2 4011 1.034 308.8 30.26 12.71 1816.5 178.02 5.105
BL3725O-V3 8.0~26.0 24.0 5280 0.2 4488 1.099 428.1 41.95 19.71 2584.1 253.24 6.194



Product Showcase:

Brushless DC Outrunner Motor , Small High Torque Electric Motor 37mm 12v 18v 24v

FAQ

Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.

Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q: What certifications do you have?
A: We currently have CE and ROSH certifications.

Q: Can you send me your price list?
A: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.
