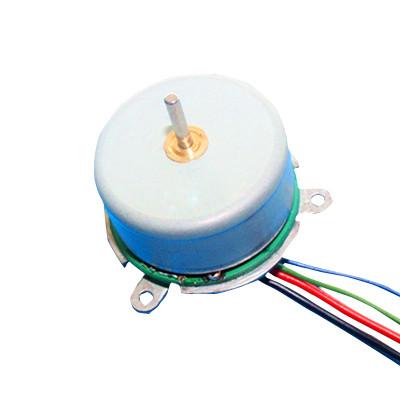

42mm Diameter High Speed Brushless Motor BL4225O For Medical Apparatus
42mm Diameter High Speed Brushless Motor BL4225O For Medical Apparatus
42mm Diameter High Speed Brushless Motor BL4225O For Medical Apparatus
42mm Diameter High Speed Brushless Motor BL4225O For Medical Apparatus
Specifications
Brand Name :
Tronsun Motor
Model Number :
BL4225O
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Product name :
high torque high speed DC motor
Voltage Range :
6v-24v
Diameter :
42mm
Bearing :
Ball Bearing
Shaft diameter :
4.0
Application :
Vacuum Cleaner
Rotation :
CW/CCW
Housing :
Metal
Description

High torque high speed 42mm outrunner brushless dc motor 12 24 volt brushless motor for Vacuum Cleaner

Model No.: BL4225O

Applications:

Fittness products

Home appliance

Vacuum cleaner


Description:

Inner PCBA driving

Current Limit protection function

PWM Control

FG output

CW/CCW control

Low EMI

Low noise

Brake function

Lifetime more than 20000h

Motor Teminals:

No. Pin Arrangement
1 VCC
2 FG
3 CW/CCW
4 GND

2D Drawing:
42mm Diameter High Speed Brushless Motor BL4225O For Medical Apparatus

Motor Performance:


MODEL		 VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm mN.m W g.cm mN.m A
BL4225O-V1 8.0~16.0 12.0 12963 0.23 11537 2.01 172.6 16.91 20.43 1569.4 153.8 16.44
BL4225O-V2 8.0~26.0 18.0 23246 0.34 21066 3.29 237.6 23.28 51.38 2533.8 248.31 31.77
BL4225O-V3 8.0~26.0 24.0 29489 0.53 26540 4.60 333.6 32.69 90.81 3335.9 326.92 41.23



Product Showcase:

42mm Diameter High Speed Brushless Motor BL4225O For Medical Apparatus

FAQ

Q: Can I visit your company?
A: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Thanks!

Q: Can you make a motor with custom specifications?

A: Definitely yes, that’s the aim we work for, we provide customized motor with valued add service for our clients.

Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
