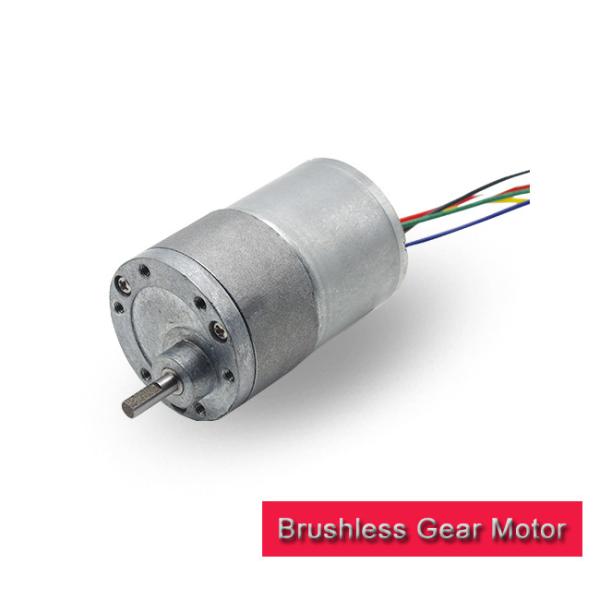

High Torque 37mm offset shaft 12v 24v brushless gear motor for printer

Model: 37GB3630

Tytical Application:

Smart Robots

Precious instruments

Vending Machine

Printer

ATM

Features:

Combine with 36mm brushless dc motor

Voltage Range from 6 volt to 24 volt

Shaft can be custom made such as threaded shaft

Special customized gears available

2-7 stage gearbox, 8.9/1-918/1 reduction ratio

Lifetime more than 5000h

Rated torque 10-25kg.cm

Enhanced gearbox 120/1

Pin Arrangement

1. Vcc , Red

2. FG , Green

3. CW/CCW, Yellow

4. GND, Black

5. PWM, Blue

6. Brake, White

Product Showcase:

Outline Drawing:

​

Gearbox Reduction Ratio:

Motor Performance:

The Shaft and the motor performance such as voltage and speed can be custom made.

PLS download the spec below.

37GB3630.pdf

WHY US:

High Quality IC, stable quality PCBA, long time brushless dc motor

Professional international sales team.

All gears are produced by hobbing machine

Promt response within 24h

Prefession in gearbox and motor

100% inspection during production

Customization available

Accessories Available

FAQ

Q: What is the payment terms?

A: T/T, Western Union, Paypal, etc, easy for your business.

Q: What information you need provide if you want we recommend motors for you?

A: You need provide the basic specification of the motor, like: Dimesnion, Application, Voltage, Speed and Torque. If you have samples or drawings, it's better you can send it to us.

Q: What's your main products?
A: Dia4~42mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.

Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.

Q: What if i don't know the above data?
A: Please contact our saleman to handle,we'll answer your questions patiently.
