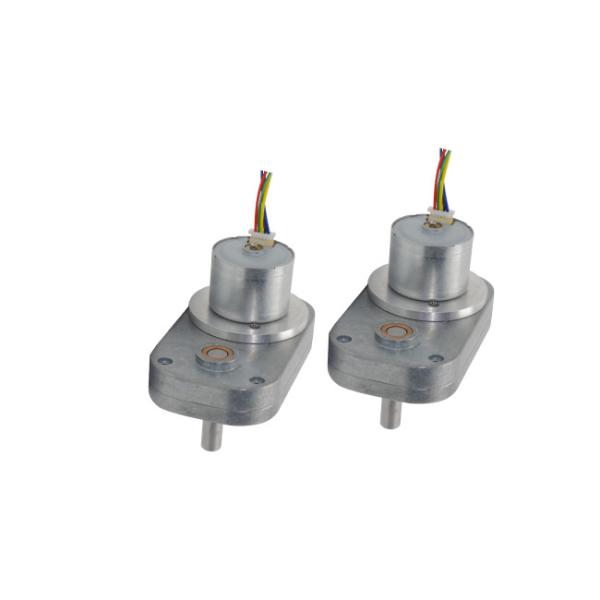

Long lifetime low noise dc brushless gear motor with flat gearbox

Main Product:

DC Brush Motor: 10mm-42mm brush dc motors, precious metal brush or carbon brush.

Coreless DC Motor: 4mm-10mm coreless dc motor, brush type.

Vibration Motor: We can add eccentric wheel on the brush dc motor and coreless dc motor. The size of eccentric wheel can be customized.

Brushless DC Motor: 24mm-42mm brushless dc motor

Gear Motor: 6mm-42mm round type gearbox, and right angle worm gearbox, we have both plastic and metal gearbox, gearbox type including spur gearbox, planetary gearbox and worm gearbox.

All the performance like voltage and speed can be custom made, for more information, pls email to us for detail.

Outline Drawing:

Motor Performance:

The Shaft and the motor performance such as voltage and speed can be custom made.

Pls download the PDF spec below.

38GF2418.pdf

Product Showcase:

Customization Characteristics

※ Encoder possible
※ Internal capacitors or varistor
※ Voltage and speed adjustment by winding change
※ Modification of shaft length
※ Modification of shaft configuration (flat, hole, knurling, rear shaft etc.)
※ Assembly of gears, vibrators, pulley, etc.
※ Ball bearing available.
※ Gears made by hobbing machine or powder metallurgy.
※ Special gears (Helical gears, bevel gears, etc)

FAQ:

Q: What's your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders

Q: What's your payment term?
A: For all our new customers, we will need 40% deposite, 60% paid before shipment.

Q: When will you reply after got my inquiries?
A: We will response within 24 hours once get your inquires.
