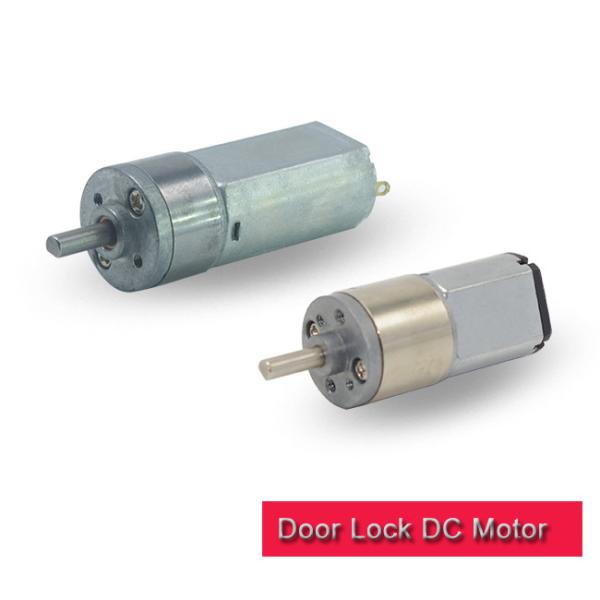

Car Door Lock Motor Metal Round Gearbox 3v 6v 12v Brushed DC Motor RoHS Approved
Car Door Lock Motor Metal Round Gearbox 3v 6v 12v Brushed DC Motor RoHS Approved
Car Door Lock Motor Metal Round Gearbox 3v 6v 12v Brushed DC Motor RoHS Approved
Car Door Lock Motor Metal Round Gearbox 3v 6v 12v Brushed DC Motor RoHS Approved
Specifications
Brand Name :
Tronsun Motor
Model Number :
16GA030
Certification :
RoHS
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500kpcs/month
Delivery Time :
25 Working Days
Packaging Details :
TBD
Other Name :
door lock mini DC motor
Diameter :
16mm
Reduction ratio :
100/1
Bearing :
Oil-impregnated bearing
Motor Type :
Brush dc motor
Typical Appliacation :
Smart lock
Shaft :
Inline
Voltage :
3-12v
Description

High Quality 16mm metal round gearbox with brush dc motor 3v 6v 12v door lock motor

Model: 16GA030/16GA050

Tytical Application:

Electronic Door Lock

Smart Home appliance

Smart Robot

Electric Toys

Educational Products


Features:

Shaft Material: Stainless Steel

Oil-impregnated bearing

Output power 0.1-1.5W

Encoder available

16mm Metal Spur gearbox

Thread shaft available

Precious metal brush or carbon brush


Product Showcase:
Car Door Lock Motor Metal Round Gearbox 3v 6v 12v Brushed DC Motor RoHS Approved

Outline Drawing:
Car Door Lock Motor Metal Round Gearbox 3v 6v 12v Brushed DC Motor RoHS ApprovedCar Door Lock Motor Metal Round Gearbox 3v 6v 12v Brushed DC Motor RoHS Approved​

Motor Performance:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
11 3 11.5/1 14/1 0.2 0.5
12.5 4 23/1 28/1 32/1 40/1 0.3 0.7
14 5 46/1 56/1 65/1 80/1 91/1 112/1 0.4 0.8
15.5 6 130/1 159/1 183/1 224/1 257/1 315/1 0.5 1.0
17 7 365/1 448/1 515/1 630/1 725/1 889/1 0.6 1.2


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
16GA030-14-061200 14/1 3.0~6.0 6.0 1200 0.08 945 0.06 0.06 0.58 0.29 1.12
16GA030-112-03120 112/1 2.0~4.0 3.0 120 0.1 96 0.42 0.36 0.35 1.8 1.65
16GA030-515-1225 515/1 5.0~12.0 12.0 25 0.05 19 0.16 1.6 0.31 6.45 0.48


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
16GA050-32-06385 32/1 3.0~6.0 6.0 385 0.08 317 0.37 0.23 0.75 1.32 1.42
16GA050-91-12130 91/1 5.0~12.0 12.0 130 0.05 102 0.16 0.67 0.70 3.1 0.58
16GA050-224-0658 224/1 3.0~6.0 6.0 58 0.06 46 0.23 1.1 0.52 5.3 0.85

The Shaft and the motor performance such as voltage and speed can be custom made.

PLS download PDF spec for referrence.

16GA030.pdf

16GA050.pdf

FAQ

Q: What's the minimum order quantity?
A: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q: What’s the capacity per month?
A: Over One Million pieces per month for all DC Motor series.

Q: Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.

Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
