6 Volt 12 Volt DC Worm Gear Motor 46GF370 / 58GF555 For Home Appliance
6 Volt 12 Volt DC Worm Gear Motor 46GF370 / 58GF555 For Home Appliance
6 Volt 12 Volt DC Worm Gear Motor 46GF370 / 58GF555 For Home Appliance
6 Volt 12 Volt DC Worm Gear Motor 46GF370 / 58GF555 For Home Appliance
Specifications
Brand Name :
Tronsun Motor
Model Number :
58GF555
Certification :
RoHS
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500kpcs/month
Delivery Time :
25 Working Days
Packaging Details :
TBD
Other Name :
Worm gearbox
Gearbox Size :
58*40mm
Voltage Range :
6-24v
Gear Reduction Ratio :
52/1-700/1
Motor Type :
Brush dc motor or bldc motor
Typical Appliacation :
Home appliance
Rotation :
CW/CCW
Weight :
430g
Description

worm gearbox with dc motor 6 volt 12v 24v dc worm gear motor

Model: 46GF370/58GF555

Tytical Application:

Smart Robots

Precious instruments

Valve

Home appliance

Vending machine

Features:

Combine with RS-555 brush dc motor or RF-370 brush dc motor

Combine with 36mm or 24mm brushless dc motor

Shaft can be custom made such as threaded shaft

Dual output shaft available

Special customized gears available

DC worm gearbox

Voltage range: 6-24v

Speed range: 5-200rpm

Encoder available

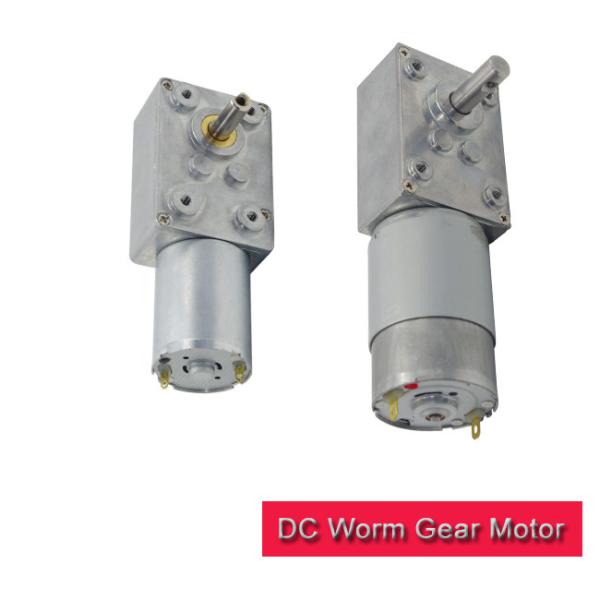

Product Showcase:

6 Volt 12 Volt DC Worm Gear Motor 46GF370 / 58GF555 For Home Appliance

Outline Drawing:

6 Volt 12 Volt DC Worm Gear Motor 46GF370 / 58GF555 For Home Appliance​

6 Volt 12 Volt DC Worm Gear Motor 46GF370 / 58GF555 For Home Appliance

Gearbox Reduction Ratio:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
46 x 32 x 21.5 3 65/1 105/1 185/1 3.0 6.0
4 320/1 412/1 478/1 600/1 900/1 5.0 10.0

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
kg.cm
58 x 40 x 21.5 3 52/1 105/1 202/1 30.0 60.0
4 350/1 700/1 50.0 100.0

Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
46GF370-65-06140 65/1 3.0~7.0 6.0 140 0.13 118 0.76 1.0 1.21 6.4 4.1
46GF370-105-0682 105/1 3.0~7.0 6.0 85 0.13 73 0.73 1.5 1.12 10.2 4.1
46GF370-65-12120 65/1 5.0~13.0 12.0 120 0.07 101 0.76 1.5 1.55 9.4 2.4
46GF370-478-1216 478/1 5.0~13.0 12.0 16 0.07 11.3 0.35 8.0 0.93 63.5 2.4
46GF370-900-2405 900/1 6.0~24.0 24.0 5.5 0.03 4.4 0.11 15.0 0.68 71.5 0.43


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
58GF550-52-12240 52/1 5.0~13.0 12.0 240 0.6 212 5.5 10.0 21.74 89.0 41.5
58GF550-104-12120 104/1 5.0~13.0 12.0 120 0.6 104 6.0 25.0 26.67 189.0 41.5
58GF555-202-2432 202/1 5.0~25.0 24.0 32 0.17 28 1.1 28.0 8.04 213.0 7.2
58GF555-350-2418 350/1 5.0~25.0 24.0 18 0.17 15.8 1.1 40.0 6.48 331.1 7.2
58GF555-700-2409 700/1 5.0~25.0 24.0 9 0.17 8.1 0.9 65.0 5.40 652.0 7.2

The Shaft and the motor performance such as voltage and speed can be custom made.

Here attached the PDF spec.

46GF370.pdf

58GF550.pdf

WHY US:

Professional international sales team.

Promt response within 24h

Prefession in gearbox and motor

100% inspection during production

FAQ

Q: Do you accept customize?
A: Sure,as we have a strong design team,any problems will get our technical answer.

Q: What kind of data do i neet to provide if i want to order?
A: Please kindly tell us your voltage,speed,torque and overall dimension.

Q: What is your MOQ?

A: Generally, the MOQ is 1000 pieces for our motors. But we can support you with small quantity for the first trial order .

Q: Do you have motors in stocks?

A: No, all motors are made according to the customers' requirements, so it is difficult for us to make in stocks.

Q: What is the payment terms?

A: T/T, Western Union, Paypal, etc, easy for your business.
