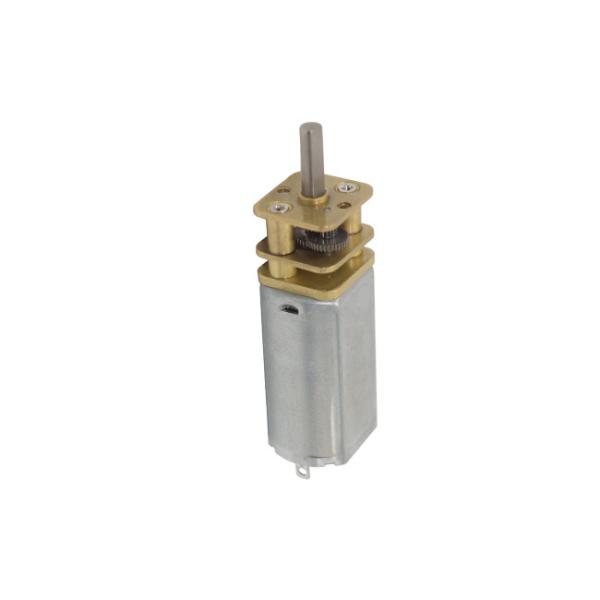

6v 12v DC Gear Motor High Torque Square Micro Metal Gearmotor 13mm Diameter
6v 12v DC Gear Motor High Torque Square Micro Metal Gearmotor 13mm Diameter
6v 12v DC Gear Motor High Torque Square Micro Metal Gearmotor 13mm Diameter
6v 12v DC Gear Motor High Torque Square Micro Metal Gearmotor 13mm Diameter
Specifications
Brand Name :
Tronsun Motor
Model Number :
13GF050
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Product name :
Mini DC Gear Motor
Voltage Range :
3v-12V
Diameter :
13mm
Reduction ratio :
3/1-360/1
Weight :
22g
Application :
Lock
Motor :
050 brush dc motor
Rotaiton :
Bi-direction
Description

High torque 13mm square metal gearbox with 050 dc motor 6v 12v mini geared dc motor for home appliance

Model No.: 13GF050

Applications:

Smart Door lock

Smart home appliance

Toy robots

Printer

Features:

13mm metal spur gearbox

Output power 0.2-3W

Precious metal brush motor

Encoder available

Dual shaft available

We can make threaded output shaft

Product Showcase:

6v 12v DC Gear Motor High Torque Square Micro Metal Gearmotor 13mm Diameter

2D Drawing:
6v 12v DC Gear Motor High Torque Square Micro Metal Gearmotor 13mm Diameter
GEARBOX REDUCTION RATIO:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
g.cm
11 2 3/1 7/1 10/1 200 500
4 20/1 30/1 35/1 50/1 63/1 86/1 300 600
5 115/1 150/1 210/1 250/1 360/1 500 1200


Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm W g.cm A
13GF050-150-0374 150/1 2.0~4.0 3.0 74 0.11 60 0.46 610 0.38 3130 1.9
13GF050-70-12200 70/1 5.0~12.0 12.0 200 0.046 160 0.19 420 0.69 2160 0.8
13GF050-210-0638 210/1 3.0~7.0 6.0 38 0.09 31 0.37 1400 0.45 7320 1.52
13GF050-50-06240 50/1 3.0~7.0 6.0 240 0.07 192 0.3 300 0.59 1520 1.3

Pls download the PDF document for referrence.

13GF050.pdf

FAQ

Q: Do you have customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q: Do you have individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
