Mini Metal Gear Motor , 3v 6v 12v 12mm Gear Motor With Long Screw Shaft
Mini Metal Gear Motor , 3v 6v 12v 12mm Gear Motor With Long Screw Shaft
Mini Metal Gear Motor , 3v 6v 12v 12mm Gear Motor With Long Screw Shaft
Mini Metal Gear Motor , 3v 6v 12v 12mm Gear Motor With Long Screw Shaft
Specifications
Brand Name :
Tronsun Motor
Model Number :
12GFN20
Certification :
RoHS / ISO9001
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500kpcs/month
Delivery Time :
15-25 working days
Packaging Details :
TBD
Product name :
micro metal gearmotor
Voltage Range :
3v-12V
Diameter :
12*10mm
Reduction ratio :
3/1-1000/1
Weight :
12g
Application :
Toy Robot
Motor :
N20 motor
Accessories :
Encoder
Description

High Quality 12mm metal gearbox 3v 6v 12v mini dc gear motor with long screw shaft for door lock

Model No.: 12GFN20

Applications:

Smart door lock

Smart robots

Smart Home appliance

Precision instruments

Features:

M3/M4 threade shaft available

N20 metal brush or carbon brush motor

3v -12v rated voltage

Encoder available

Wire soldering available

Varistor inside the motor

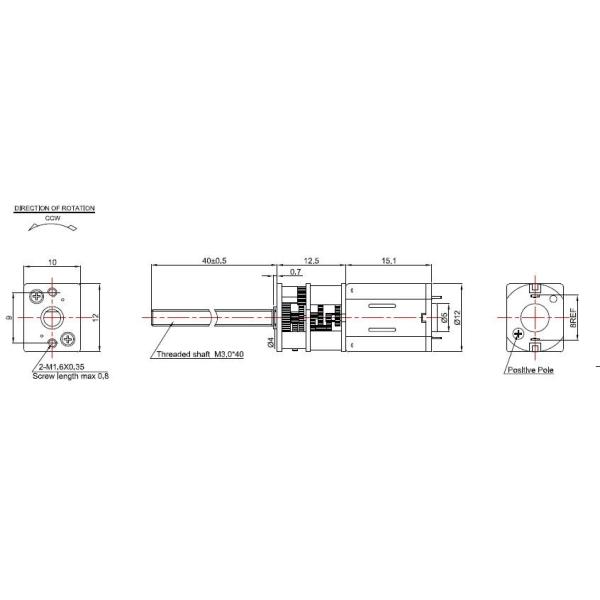

2D Drawing:
Mini Metal Gear Motor , 3v 6v 12v 12mm Gear Motor With Long Screw Shaft
GEARBOX REDUCTION RATIO:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Torque Bearable Maximum Instant Torque
g.cm
9 2 3/1 5/1 10/1 200 500
3 17/1 20/1 30/1 36/1 300 600
4 50/1 75/1 100/1 400 800
5 150/1 210/1 250/1 298/1 380/1 500 1200
12.5 7 625/1 1000/1 800 1600


Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A g.cm W g.cm A
12GFN20-298-0675E 298/1 3.0~6.0 6.0 75 0.07 63 0.22 600 0.39 3868 1.07
12GFN20-150-06130E 150/1 3.0~6.0 6.0 130 0.06 100 0.22 350 0.36 1596 0.77
12GFN20-50-06310E 50/1 3.0~6.0 6.0 310 0.06 196 0.2 200 0.40 545 0.46
12GFN20-210-06133E 210/1 3.0~6.0 6.0 133 0.07 103 0.41 700 0.74 3160 1.61
12GFN20-30-061000E 30/1 3.0~6.0 6.0 1000 0.075 820 0.4 100 0.84 550 1.92
12GFN20-1000-0614E 1000/1 3.0~6.0 6.0 14 0.035 12.3 0.06 600 0.08 4968 0.33


Pls download the PDF document for referrence.

12GFN20.pdf

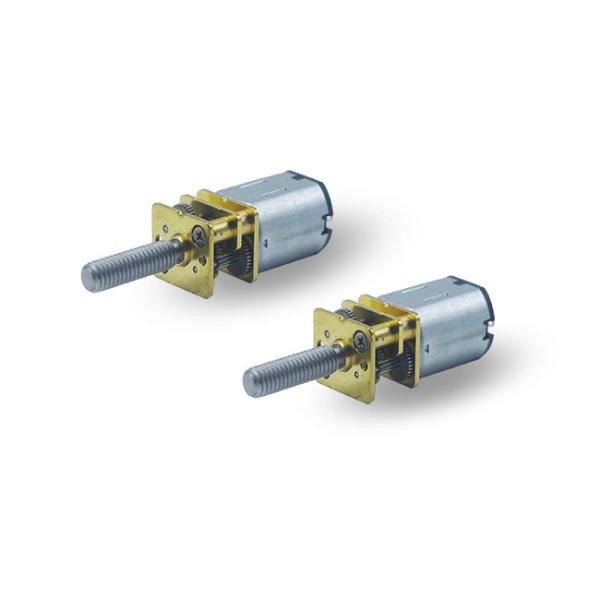

Product Showcase:

Mini Metal Gear Motor , 3v 6v 12v 12mm Gear Motor With Long Screw Shaft

RFQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation

Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q: What certifications do you have?
A: We currently have CE and ROSH certifications.

Q: What's your lead time?
A: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders
