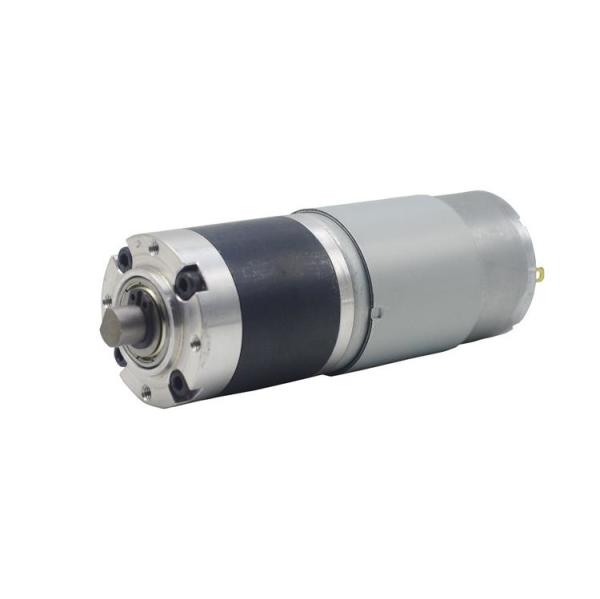

High torque 12v 24v dc planetary gear motor 36mm diameter RS-555 dc geared motor
High torque 12v 24v dc planetary gear motor 36mm diameter RS-555 dc geared motor
High torque 12v 24v dc planetary gear motor 36mm diameter RS-555 dc geared motor
High torque 12v 24v dc planetary gear motor 36mm diameter RS-555 dc geared motor
Specifications
Brand Name :
Tronsun Motor
Model Number :
36PA-2-555
Certification :
RoHS
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Paypal
Supply Ability :
500kpcs/month
Delivery Time :
25 Working Days
Packaging Details :
TBD
Other Name :
12v planetary gear motor
Gearbox Size :
36mm
Voltage Range :
12-24v
Gear Reduction Ratio :
3.5/1-721/1
Motor Type :
Carbon brush motor
Typical Appliacation :
Smart home appliance
Weight :
420g
Shaft :
Custom made
Description

High torque 12v 24v dc planetary gear motor 36mm diameter RS-555 dc geared motor

Model: 36PA-2-555

Characters:

Combine with RS-555 dc motor or 36mm bldc motor

Encoder available

Shaft can be custom made such as threaded shaft

Ball bearing

Gearbox Diameter 36mm

1-4 gear stages

output power 3-60W

Speed range 5-1000rpm

Tytical Application:

Power tool

Smart robot

Smart Home appliance

Surgery tools

Outline Drawing:

High torque 12v 24v dc planetary gear motor 36mm diameter RS-555 dc geared motor​

Gearbox Reduction Ratio:

Gearbox Length (mm) Stage Number Reduction Ratio Rated Troque Bearable Maximum Instant Torque
kg.cm
28 1 3.7/1 5.2/1 6.0 15.0
34 2 14/1 19/1 27/1 10.0 30.0
40 3 51/1 71/1 100/1 139/1 20.0 40.0
46 4 189/1 264/1 369/1 516/1 721/1 25.0 50.0

Motor Performance:


MODEL		 REDUCTION RATIO VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUPUT TORQUE CURRENT
V rpm A rpm A kg.cm W kg.cm A
36PA-2-555-27-12310 27/1 5.0~13.0 12.0 310 0.36 264 2.6 6 16.25 40.8 15.8
36PA-2-555-51-12165 51/1 5.0~13.0 12.0 165 0.38 143 2.4 10 14.67 77.1 15.8
36PA-2-555-189-1245 189/1 5.0~13.0 12.0 45 0.4 40 1.9 25 10.26 261.9 15.8
36PA-2-555-721-12165 721/1 5.0~13.0 12.0 10 0.4 9.6 0.87 30 2.95 885 14.2

The Shaft and the motor performance such as voltage and speed can be custom made.

Here attached the PDF spec.

36PA-2-555.pdf

FAQ

Q: What’s the capacity per month?
A: Over One Million pieces per month for all DC Motor series.

Q: Where is your plant?
A: Located in Shenzhen city, Guangdong province, China.

Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.

Q: What kind of motors you can provide?

A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 4~42mm, 24-42mm brushless dc motor and also Dia6~80mm size gear motors.

Q: Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
